Microphone 54 of 269
Crowley and Tripp Naked Eye
Do-Re-Mi 351 MN

Daimon Microphon 2222

Manufacturer:

Daimon

Model:

Microphon 2222

Country of Manufacture:

Germany

Microphone Type:

Carbon

Polar Pattern:

Cardioid

Production Start Year:

1952

Production End Year:

1958

Rarity:

4
Daimon  Microphon 2222

Microphone History:

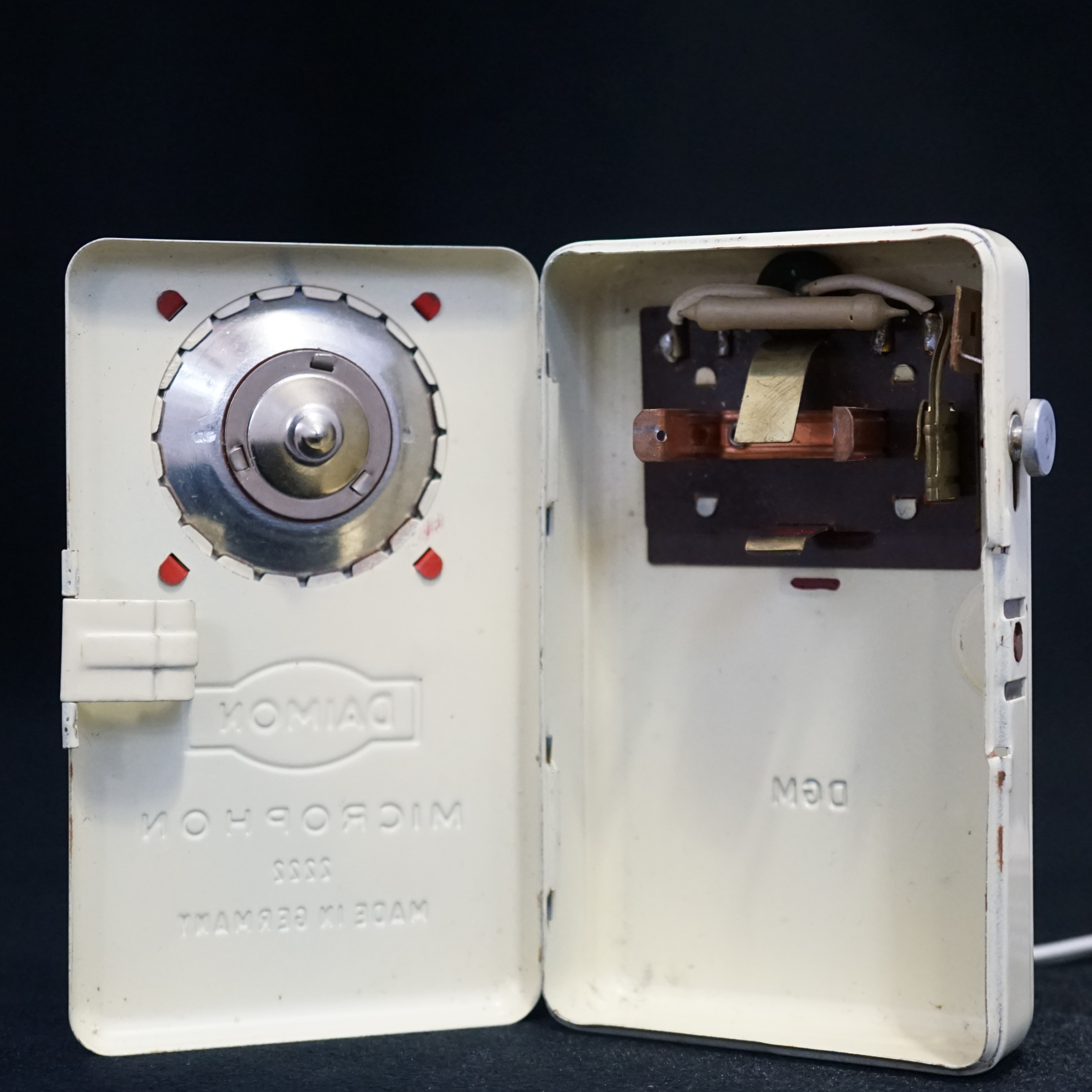

According to the Berlin Museum Digital website, the Daimon model 2222 was made between 1952 and 1958. The presense of a battery and current limiting resistor tell us that this is a carbon microphone, and it appears to use a standard button capsule made for a telephone.

Flashlights using the same housing as the Daimon microphone were also sold around the same time.

Technical Description:

Translation of the label inside of the original box:

"The DAIMON microphone is powered by a DAIMON 4.5 volt standard battery No. 215. Always press the side contact button while speaking into the microphone; it will automatically spring back when released to avoid accidental electrical discharges. To extend the connecting cable, use well-insulated cables (pendulum stranded wire, rubber cable) as used for high-voltage lines, depending on local conditions. Important! Never open the microphone connected to the radio while in use. Protect the microphone from moisture."
