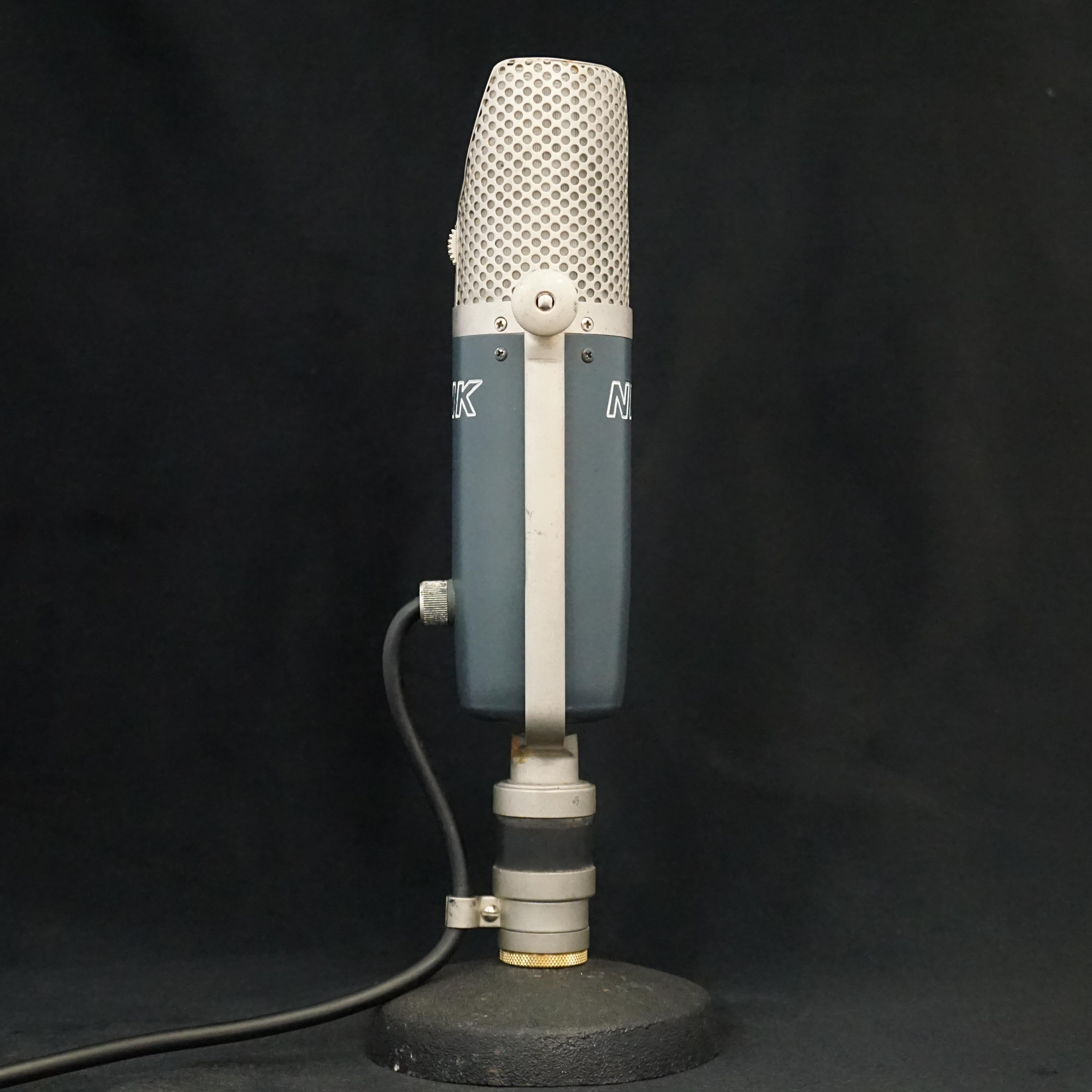

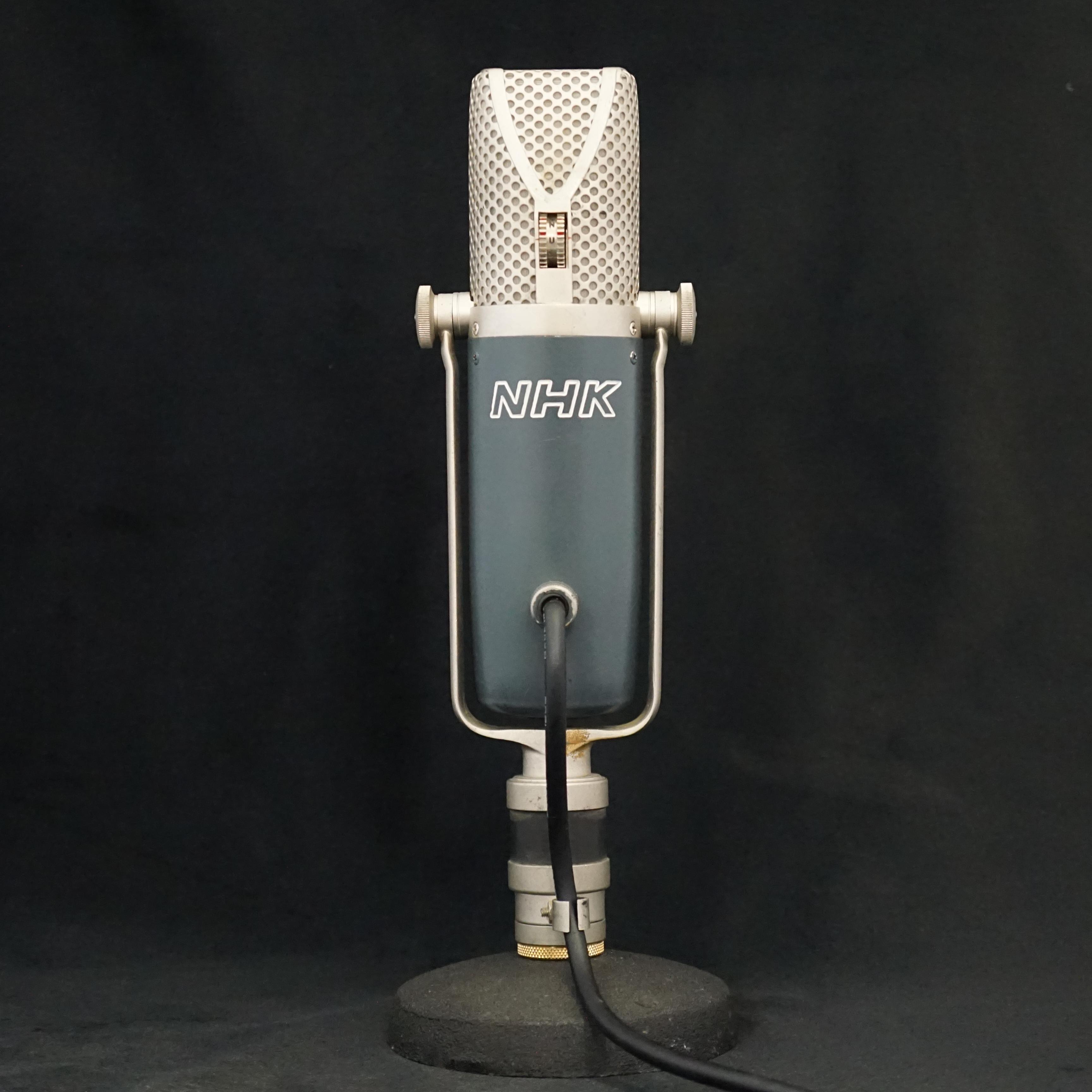

Aiwa VM-17S (RV2)

Aiwa started producing microphones from the early 1950s. By 1956, the company was designated as a technical guidance factory by the NHK Broadcasting Technology Research Laboratories, reflecting the technical quality of it's products. Throughout the following decades, Aiwa produced various styles of microphones with their ribbon microphones offerings aimed at professional and broadcasting use. In 1957 Aiwa developed the VM-17, Japan's first multi-pattern ribbon microphone, in collaboration with NHK.

• Selectable pick-up pattern
• High-pass filter switch
• Output impedance 600 ohms ±20%
• Sensitivity: -74bB ± 2dB Frequency
• Frequency response: 50 - 15,000Hz ±3dB

Released: circa 1959

Price (then): ¥93,600

Impedance: 600Ω ±20%

Mounting Thread: PT 1/2 Pipe Thread with W 5/16 Adapter

Directivity: Variable Directivity (Cardioid / Fig-8 / Omni)

Inductive Noise Level: -15dB

Dimensions (mm): 52Φ x 190

Weight (g): 980 (including 2m cord and outlet)

Cord: 2m with 21P3B plug

Notes: Built-in 5-stage low-frequency attenuation switch

This model retains the performance of the VM-17 while being housed in a slimmer housing. As a result, its appearance is quite different despite its similar model number.
