Cosmocord ACOS Mic 36
Manufacturer:
CosmocordModel:
ACOS Mic 36Country of Manufacture:
United KingdomMicrophone Type:
PiezoelectricPolar Pattern:
OmnidirectionalProduction Start Year:
1954Production End Year:
1956Rarity:
2
Audio Recording:
Nylon string guitar recorded with the ACOS Mic36 crystal microphone.
Multiple quality options available
Microphone History:

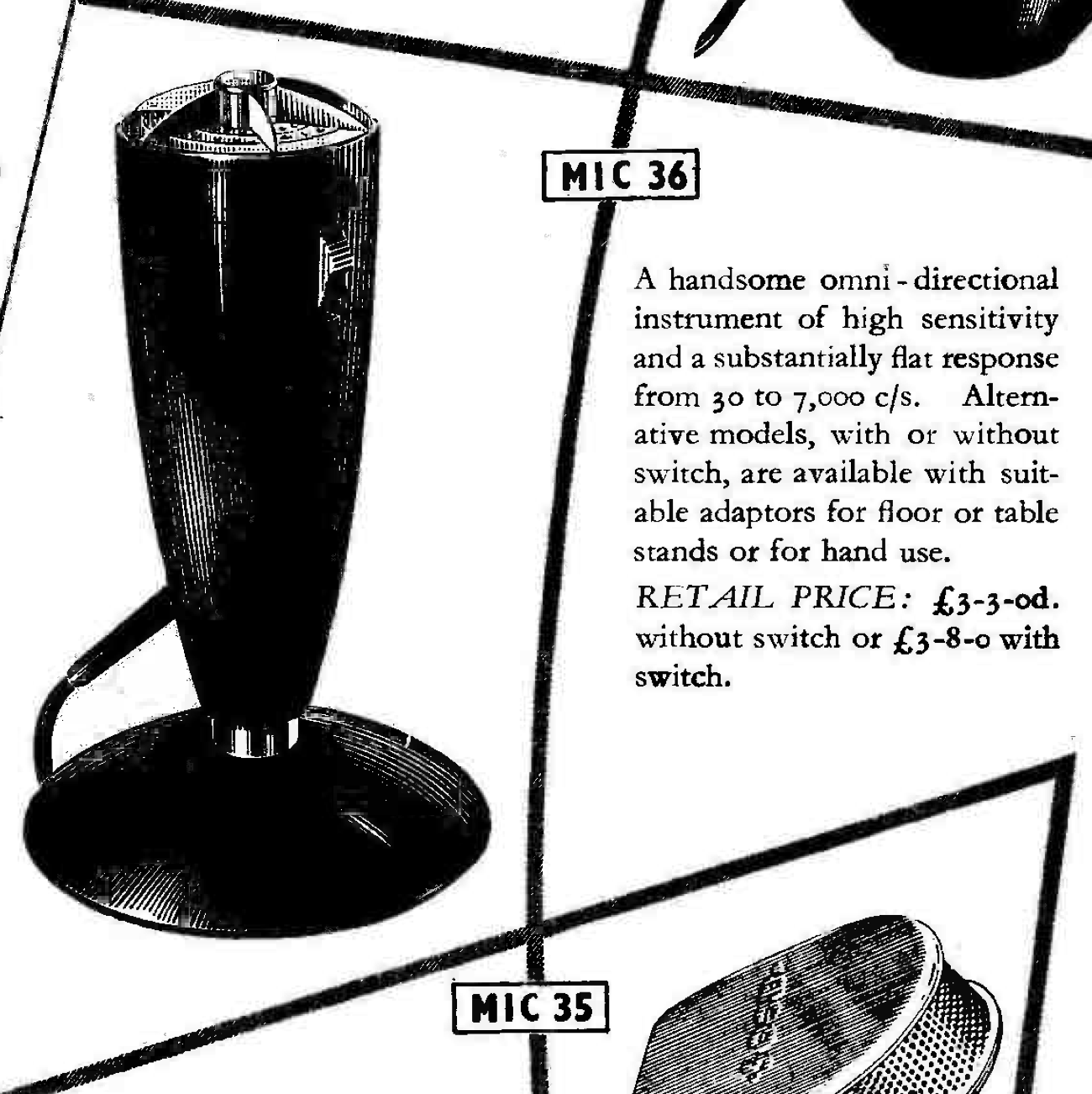

From an advertisement in The Short Wave Magazine, May 1956, page 118.
MIC 36: A handsome omnidirectional instrument of high sensitivity and a substantially flat response from 30 to 7,000 c/s. Alternative models, with or without switch, are available with suitable adaptors for floor or table stands or for hand use.
RETAIL PRICE: £3-3s-0d. without switch or £3-8-0d with switch.
Technical Description:
From Wireless World, July 1954 page 313
"The inexpensive Mic 36 series of crystal micro- phones introduced by Cosmocord (Acos) are of attractive appearance and can be adapted for stand or desk mounting. They have an omni -directional response substantially flat from 30 to 7,000 Hz with a sensitivity of -55db referred to 1 volt /dyne /cm2."

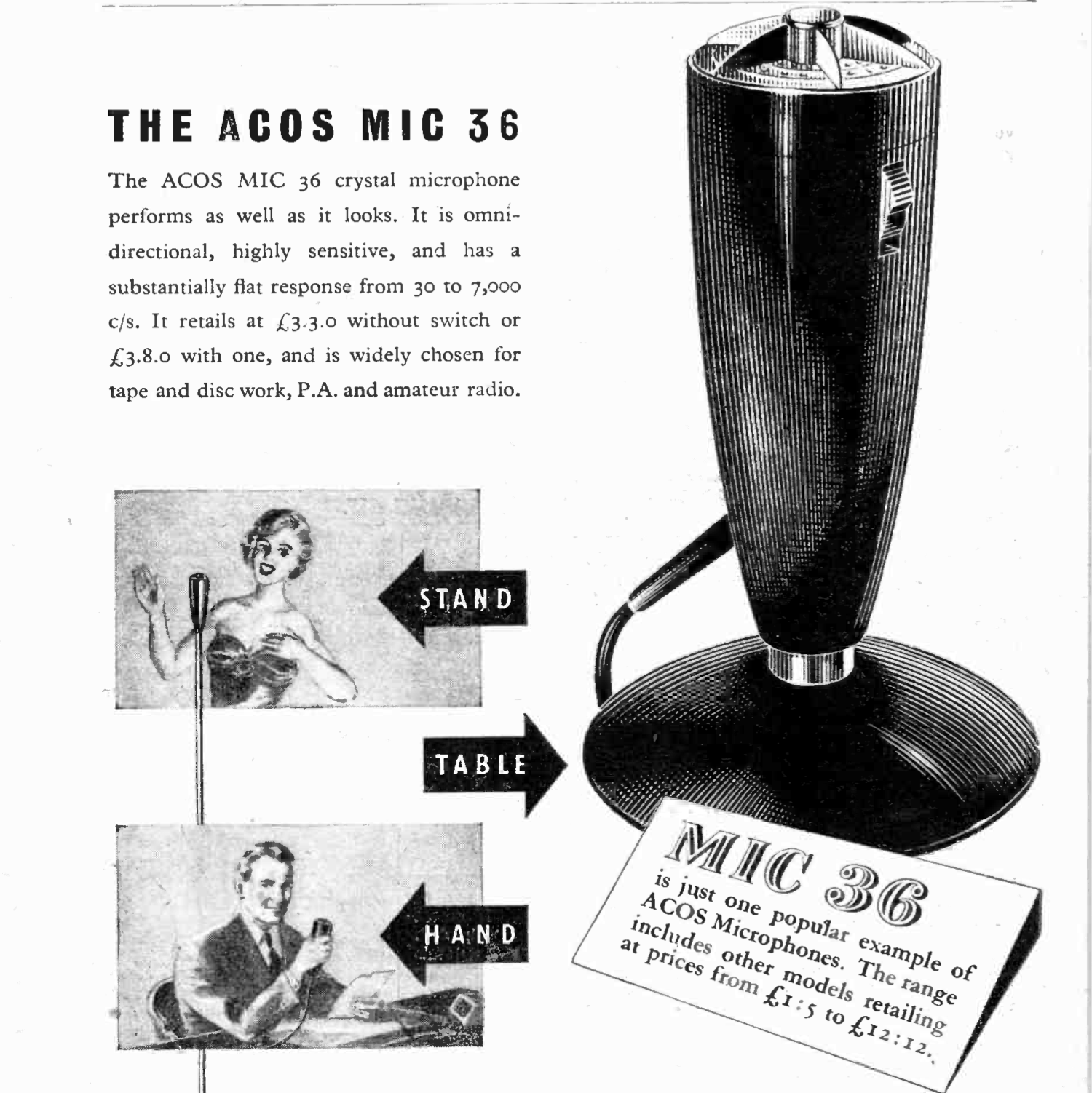

Another ad appears in Practical Wireless in August 1956, page 370:
"The ACOS MIC 36 crystal microphone performs as well as it looks. It is omnidirectional, highly sensitive, and has a substantially flat response from 30 to 7,000 Hz. It retails at £3.3.0 without switch or £3.8.0 with one, and is widely chosen for tape and disc work, P.A. and amateur radio."

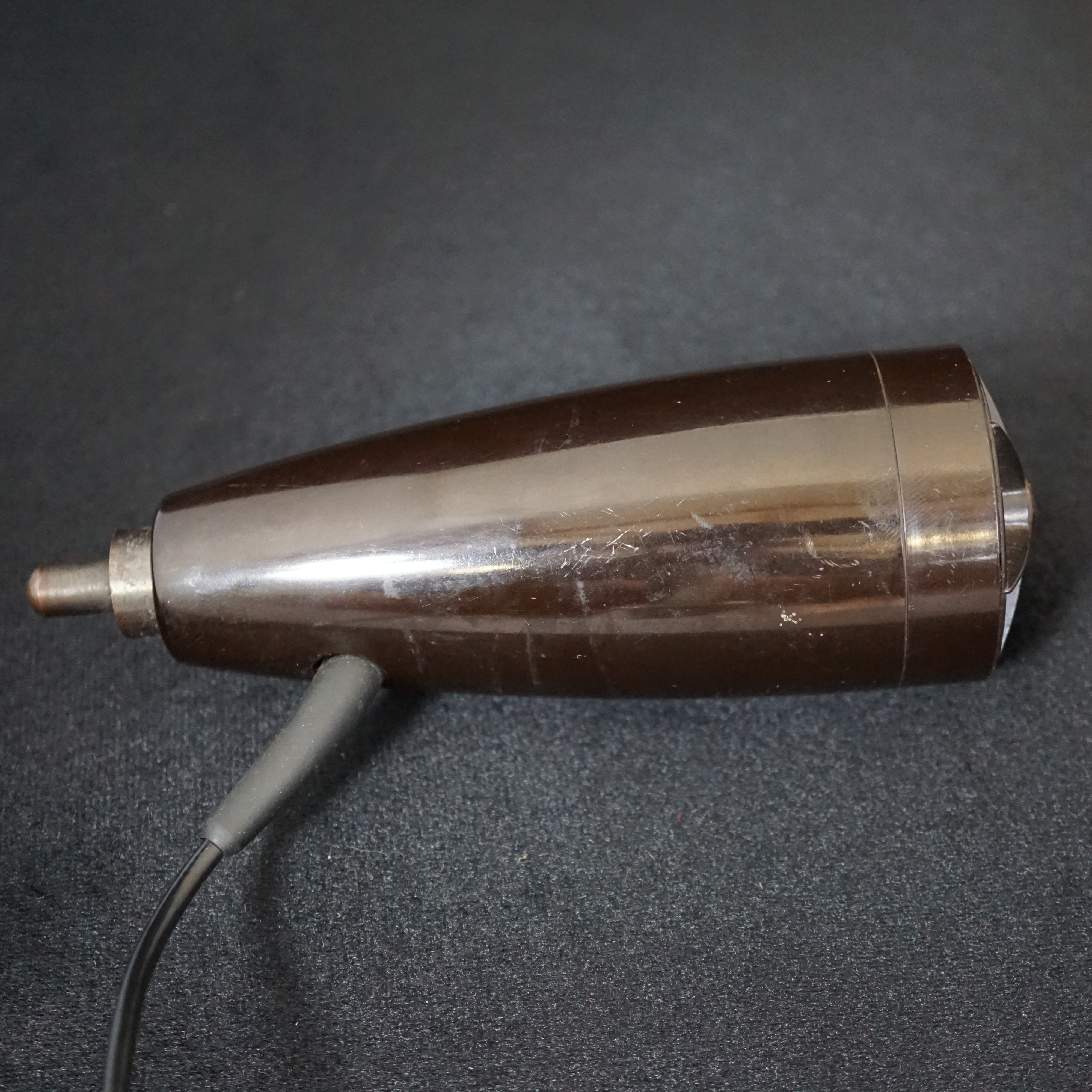

Our model appears to be the less expensive model, without the switch.

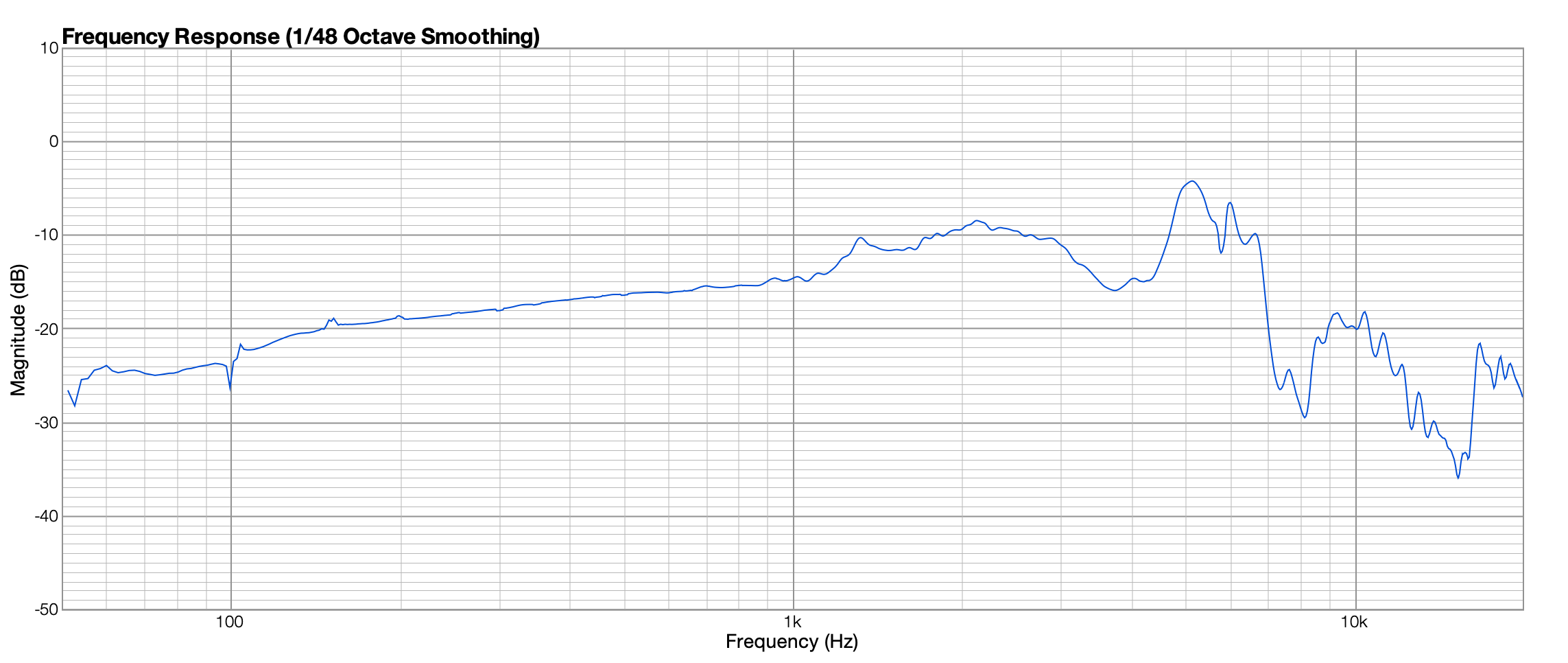

Frequency Response:
Impulse Response File:
Impulse Response file of the ACOS Mic36 crystal microphone.
Acos_Mic36_IR.wav
