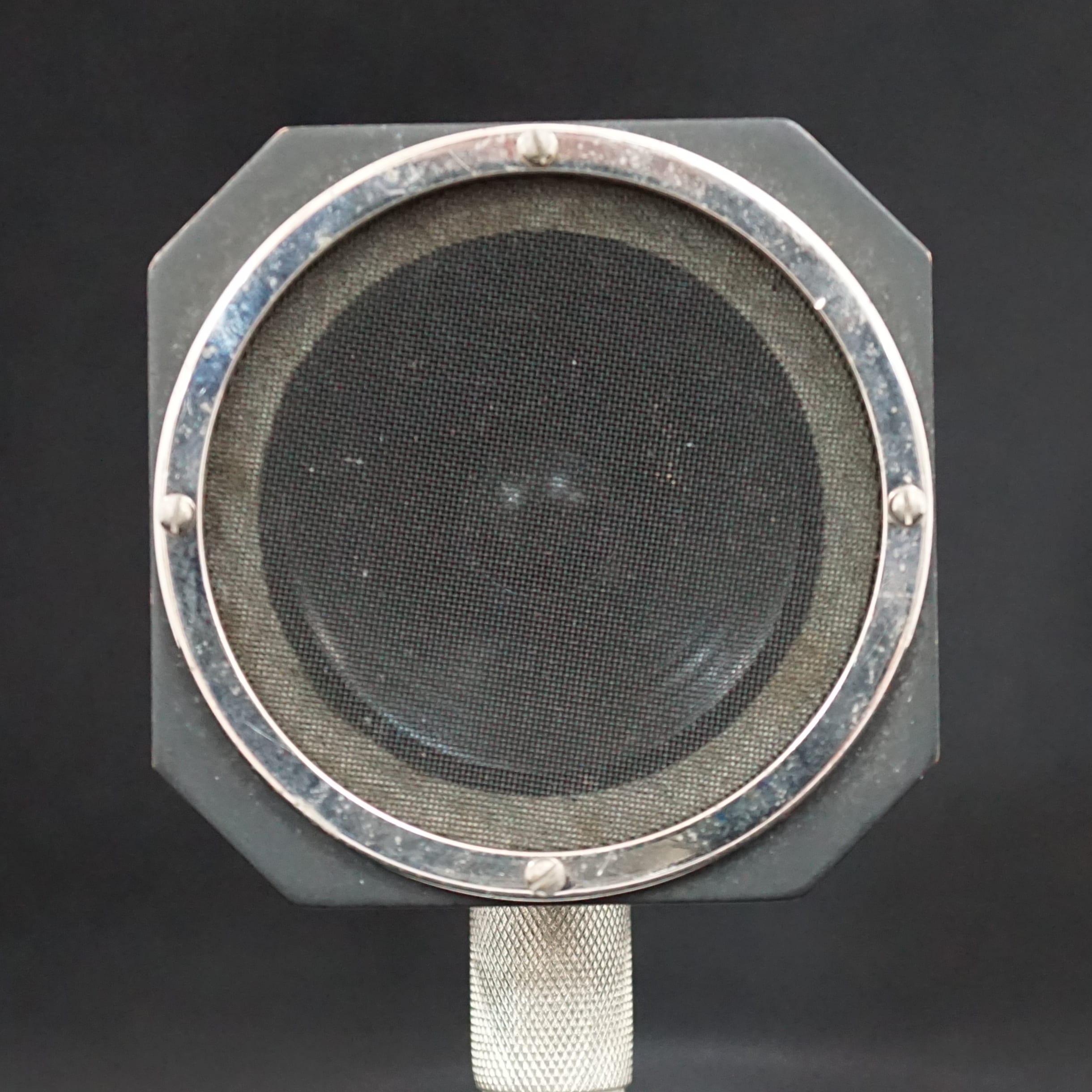

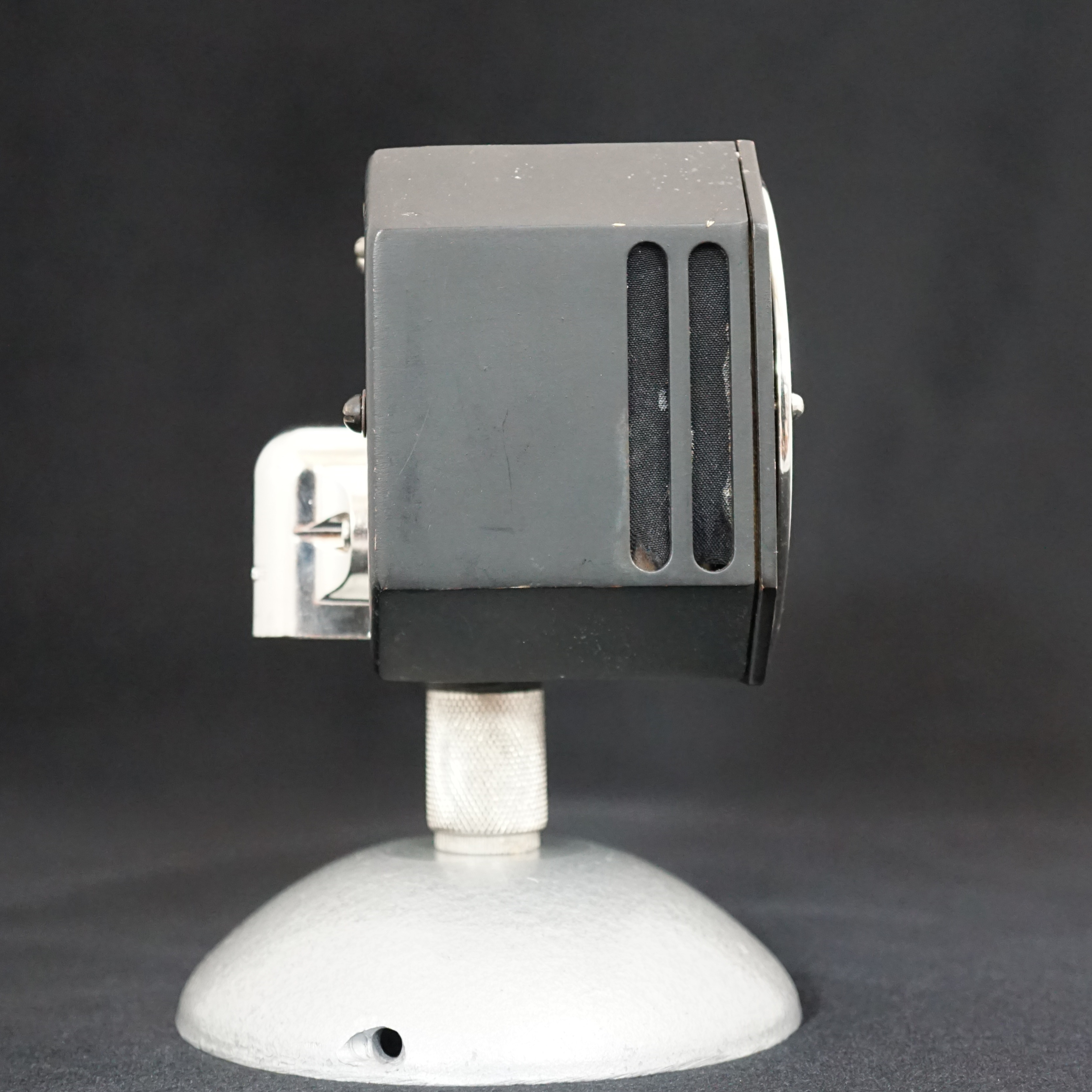

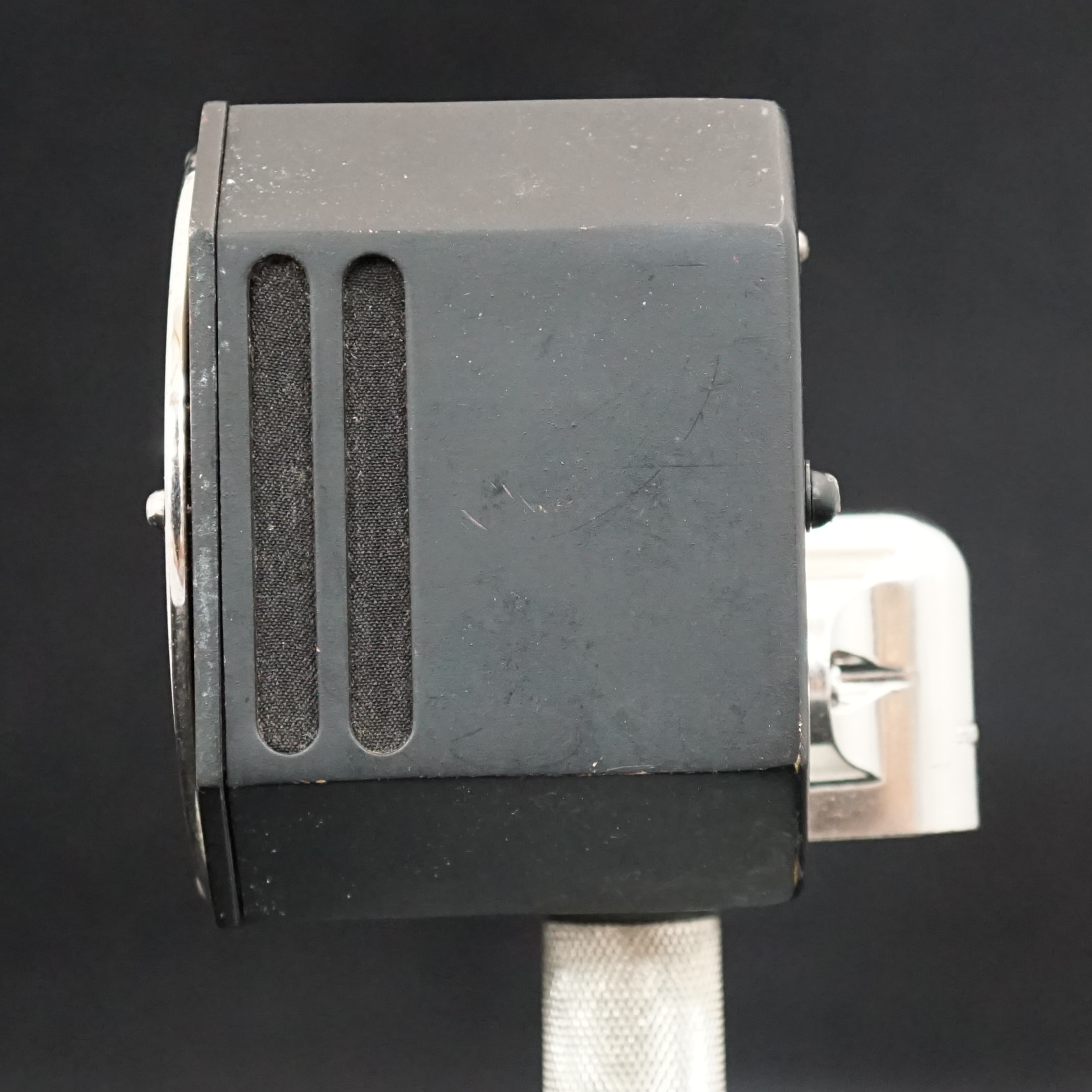

GEC BCS 2280
Manufacturer:
GECModel:
BCS 2280Country of Manufacture:
United KingdomMicrophone Type:
DynamicPolar Pattern:
CardioidProduction Start Year:
1940Rarity:
4
Audio Recording:
Speech (male) recorded with a GEC BCS2280 dynamic microphone.
Duration: 0:37Size: 0.7 MBFormat: MP3
Multiple quality options available
Impulse Response File:
IR file of the GEC BCS2280 dynamic microphone.
GEC_BCS2280_IR.wav
Format: VND.WAVESize: 0.5 MB
Frequency Response:
Technical Description:
Output impedance circa 15 ohms at 1 kHz
Weight: 1.4 kg.
Size: 88 x 88 x 65 mm (mount excluded)

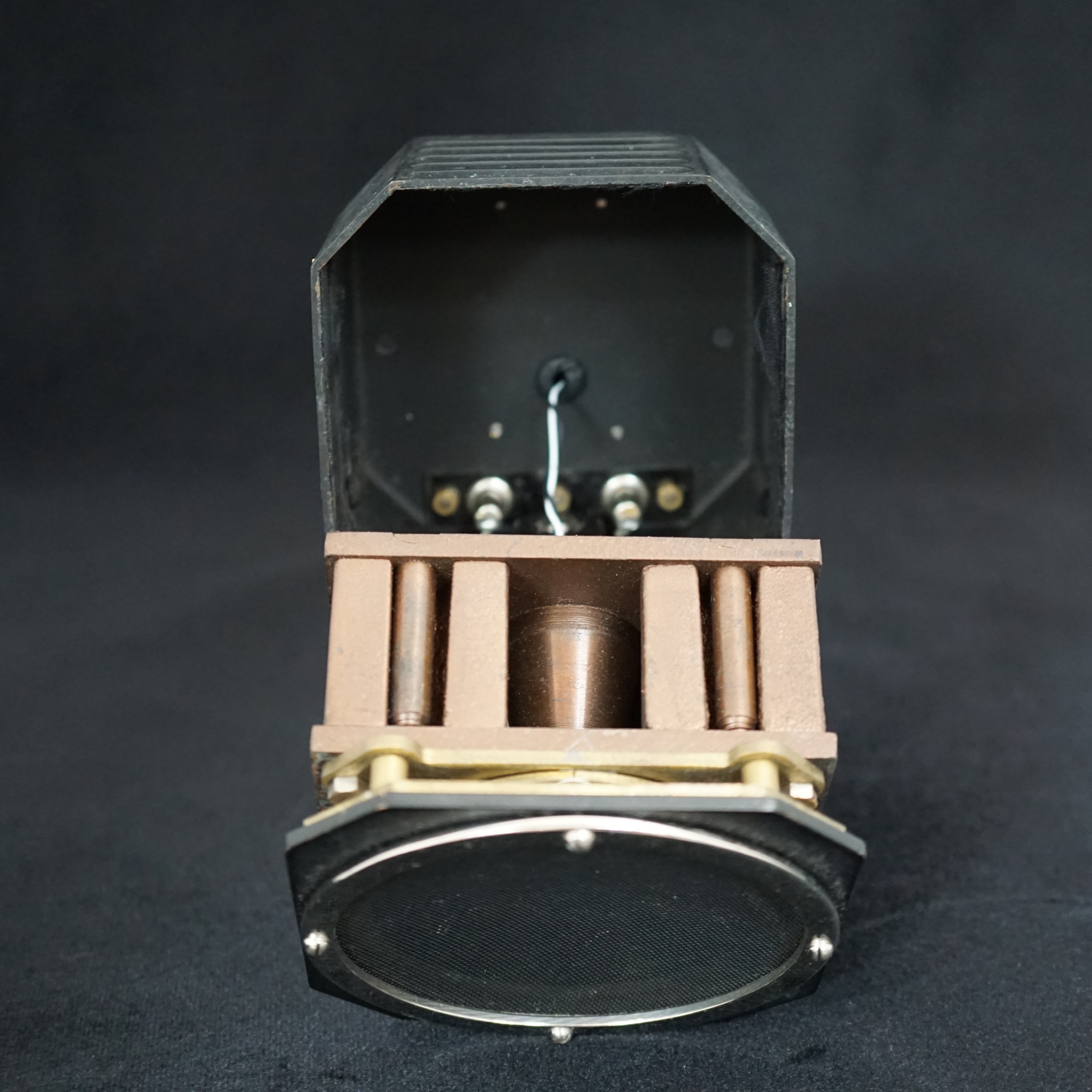

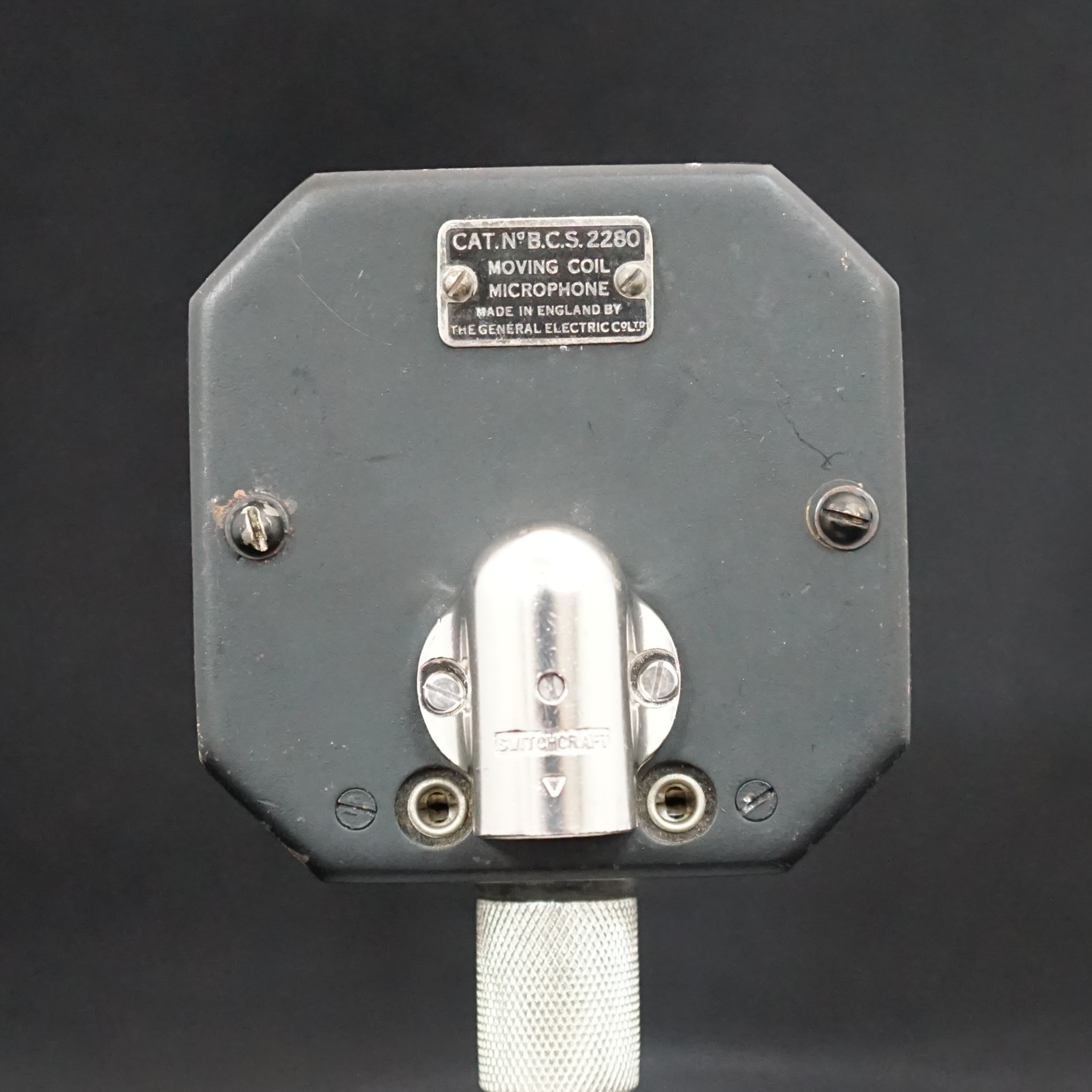

This design is very much like a reversed speaker used as a dynamic microphone. Our example has been converted to XLR output but originally used two small banana-style plugs. We have a second example in the collection marked BCS 2290.
