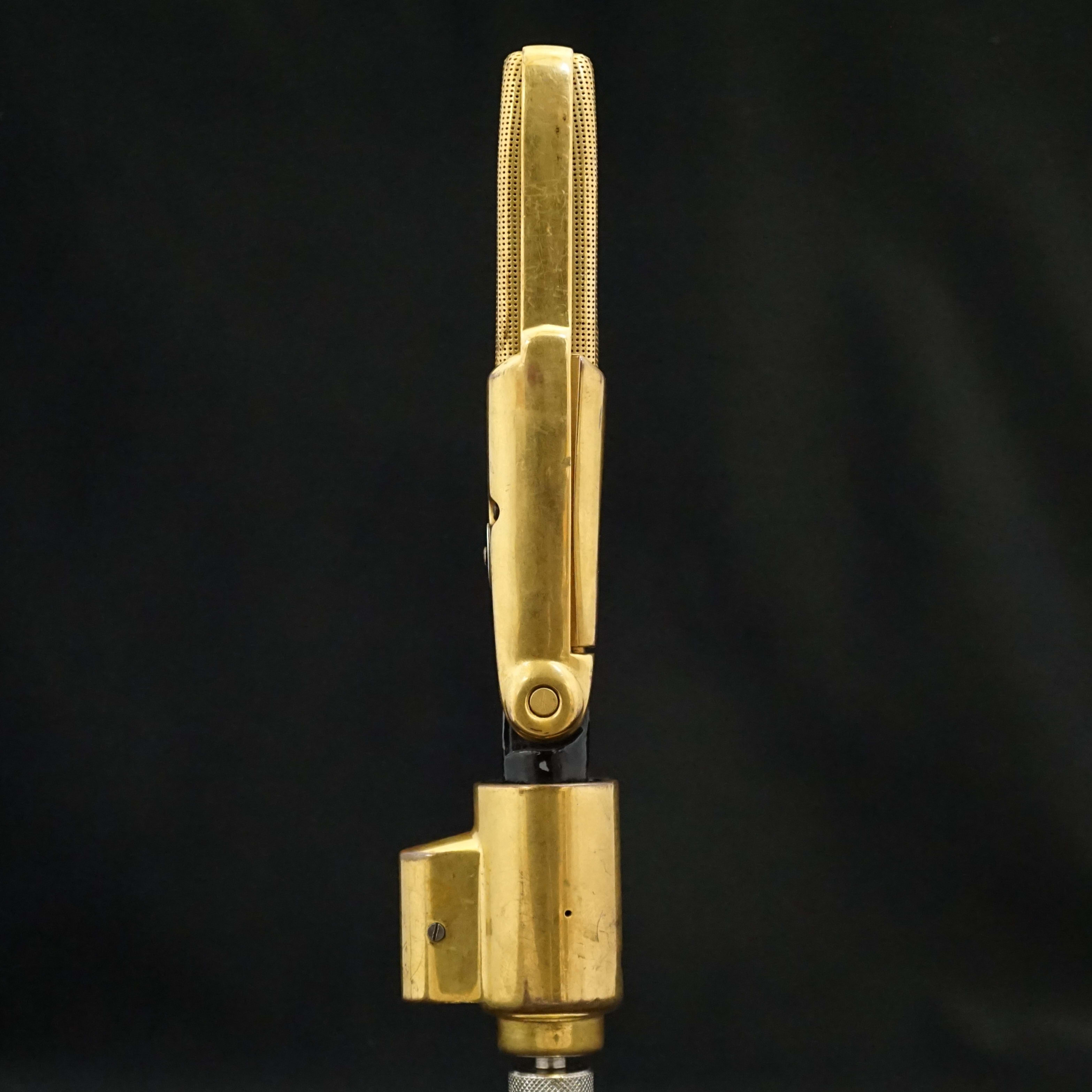

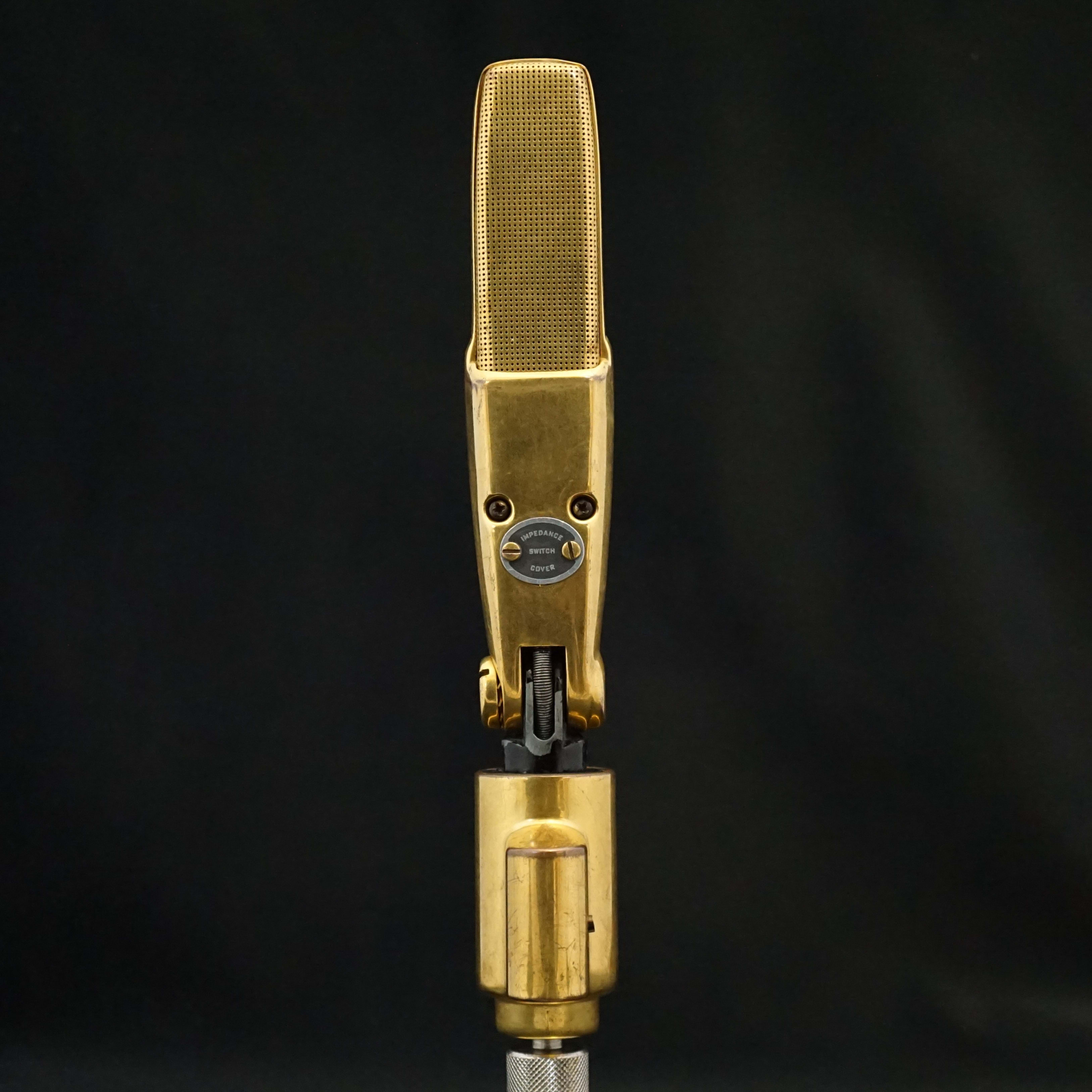

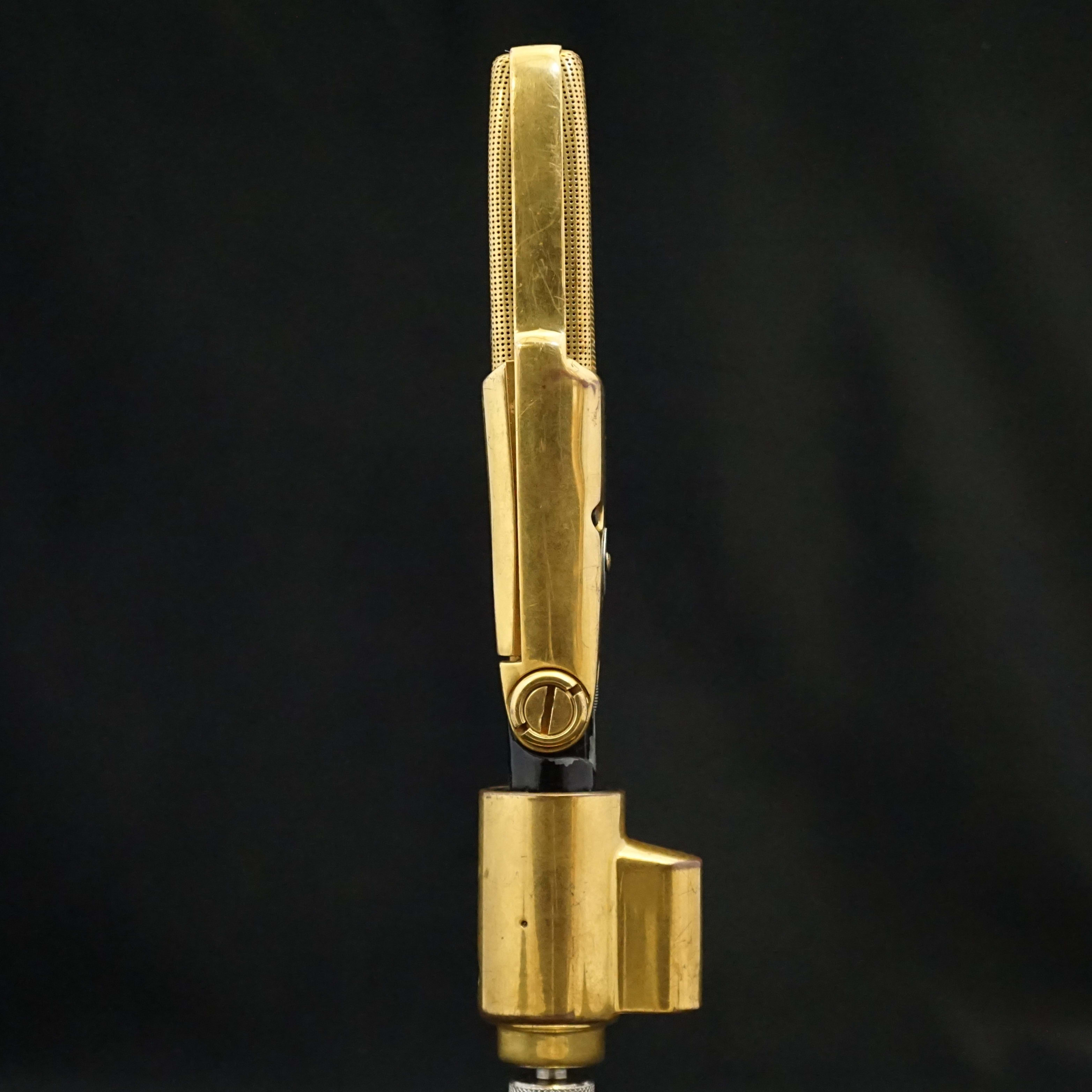

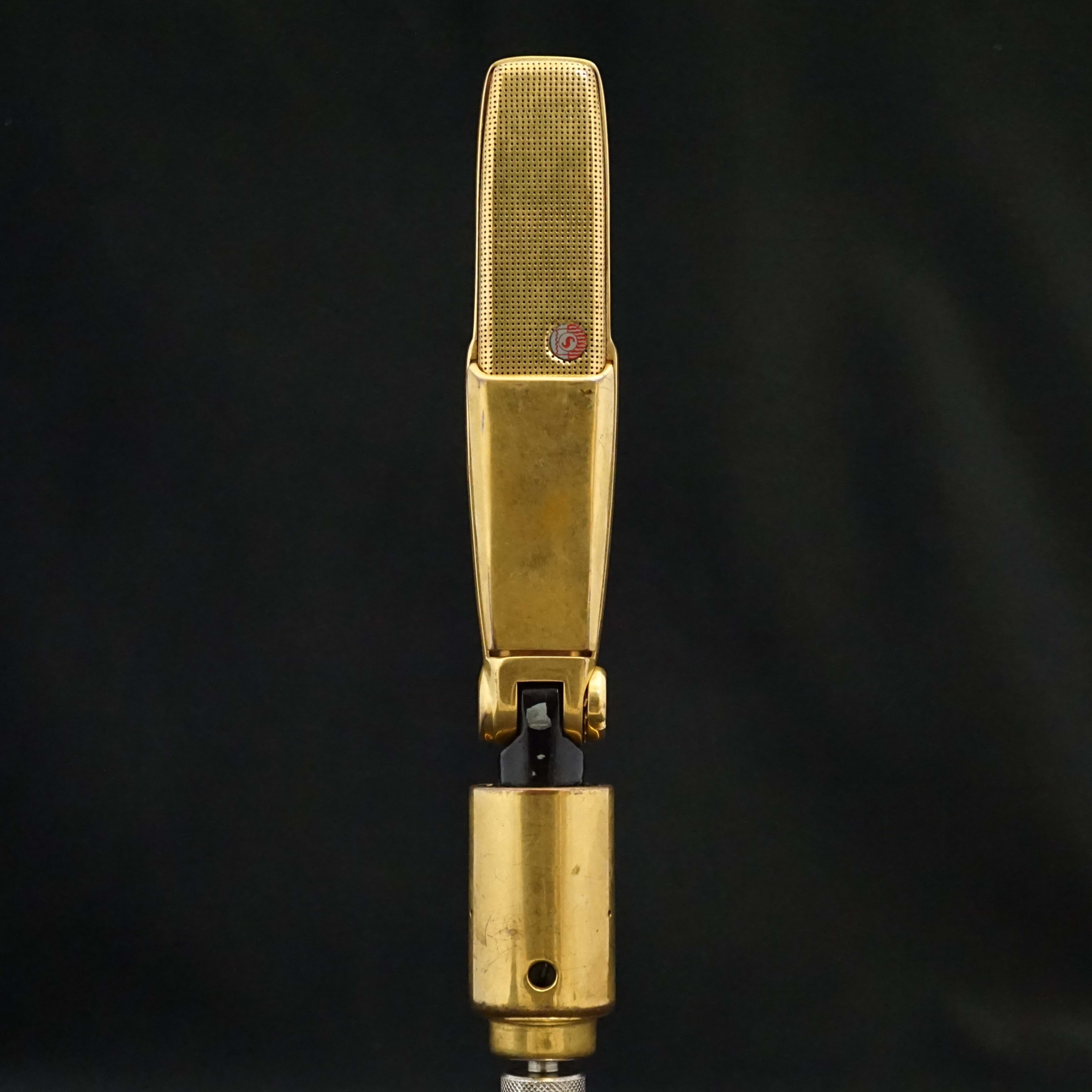

Shure 300
Manufacturer:
ShureModel:
300Country of Manufacture:
United StatesMicrophone Type:
RibbonPolar Pattern:
Figure 8Production Start Year:
1952Production End Year:
1981
Audio Recordings:
Speech (male) recorded with a Shure 300 ribbon microphone.
Duration: 0:42Size: 0.8 MBFormat: MP3
Multiple quality options available
Nylon string guitar recorded with a Shure 300 ribbon microphone.
Duration: 0:59Size: 1.1 MBFormat: MP3
Multiple quality options available
Impulse Response File:
Impulse Response file of the Shure 300 ribbon microphone.
Shure300_IR.wav
Format: VND.WAVESize: 0.5 MB

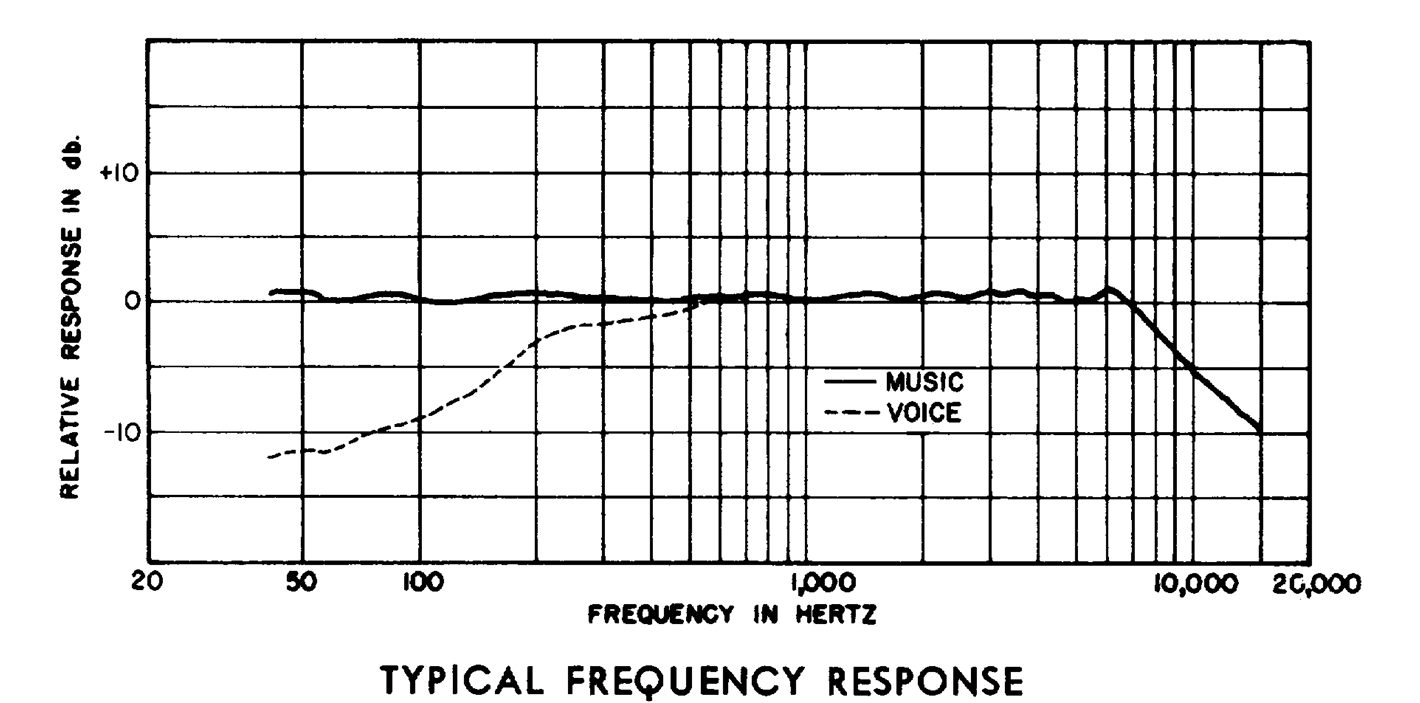

Frequency Response:
Technical Description:
Technical description taken from Shure's 1968 Catalogue:

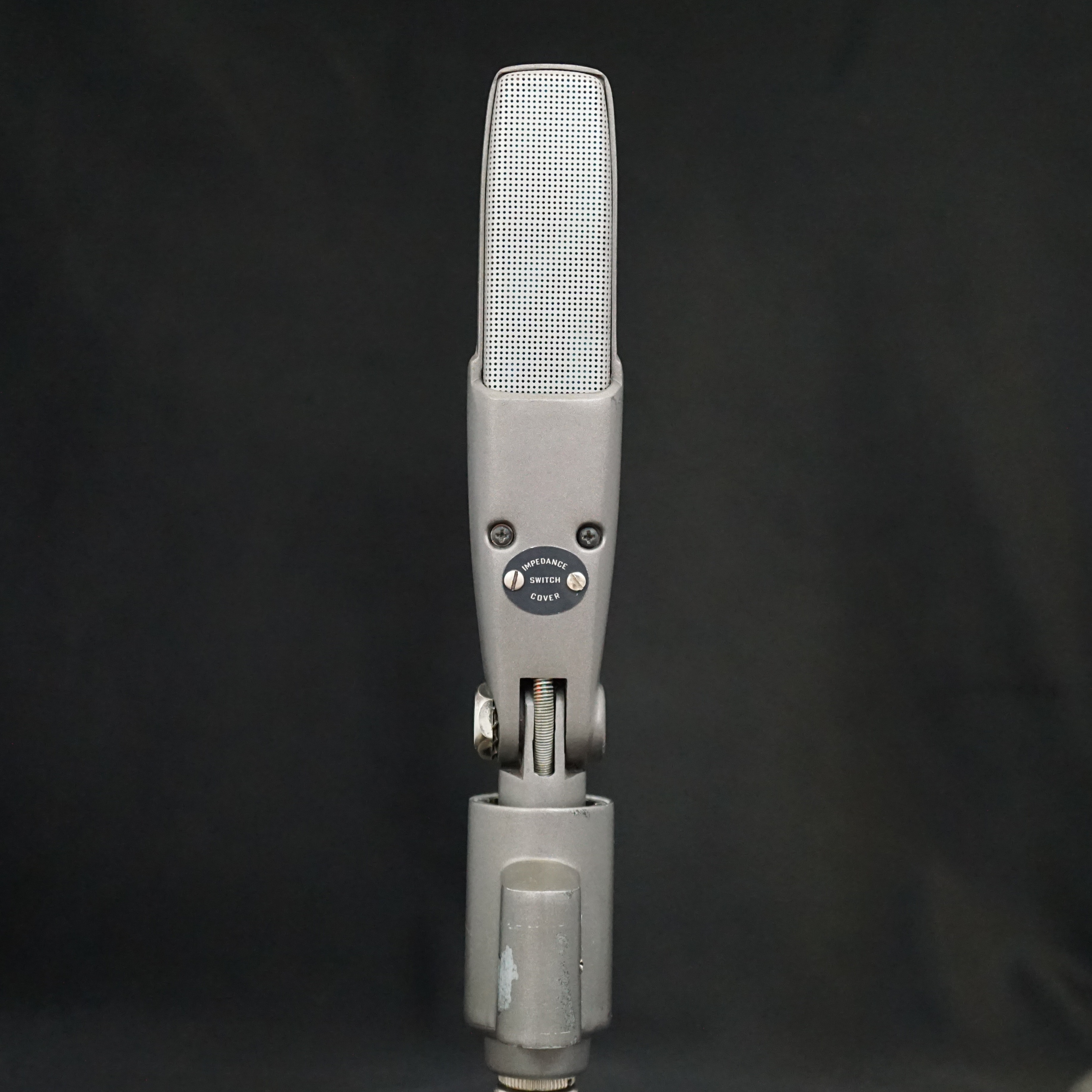

The Model 300 Studio Gradient is a bidirectional microphone which prov;des sound pickup at the front and rear of the microphone, but greatly reduces pickup at the sides. Can be placed at a much greater distance from the performer than is possible with omnidirectional microphones. Features are a readily accessible Voice-Music switch, a vibration-isolation unit mounted in live rubber, and a multi-impedance switch. The frequency response (production uniformity guaranteed to ± 2112 db), is 40 to 15,000 Hz
Specifications:
- Frequency Response: 40 to 15,000 Hz.
- Impedance and Output Level:
- 30-50 ohms: -60.5 db (0 db = 1 milliwatt per 10 microbars); .043 millivolts/microbar.
- 150-250 ohms: -59 db (0 d.b = 1 milliwatt per 10 microbars); .105 millivolts/microbar. High -57.5 db (0 db millivolts/microbar.)
