Toshiba Type B / OB-1161A
Manufacturer:
ToshibaModel:
Type B / OB-1161ACountry of Manufacture:
JapanMicrophone Type:
RibbonPolar Pattern:
Figure 8Production Start Year:
1957Rarity:
4
Audio Recording:
Nylon string guitar recorded with a Toshiba model B ribbon microphone.
Duration: 1:01Size: 1.2 MBFormat: MP3
Multiple quality options available
Impulse Response Files:
Impulse Response file of the Toshiba B ribbon microphone without bass cut
Toshiba_B_0_IR.wav
Format: VND.WAVESize: 0.5 MB
Impulse Response file of the Toshiba B ribbon microphone with HPF position 2
Toshiba_B_HPF2_IR.wav
Format: VND.WAVESize: 0.5 MB
Impulse Response file of the Toshiba B ribbon microphone with HPF position 4
Toshiba_B_HPF4_IR.wav
Format: VND.WAVESize: 0.5 MB
Frequency Response:
Technical Description:
Output impedance: 600 Ohms

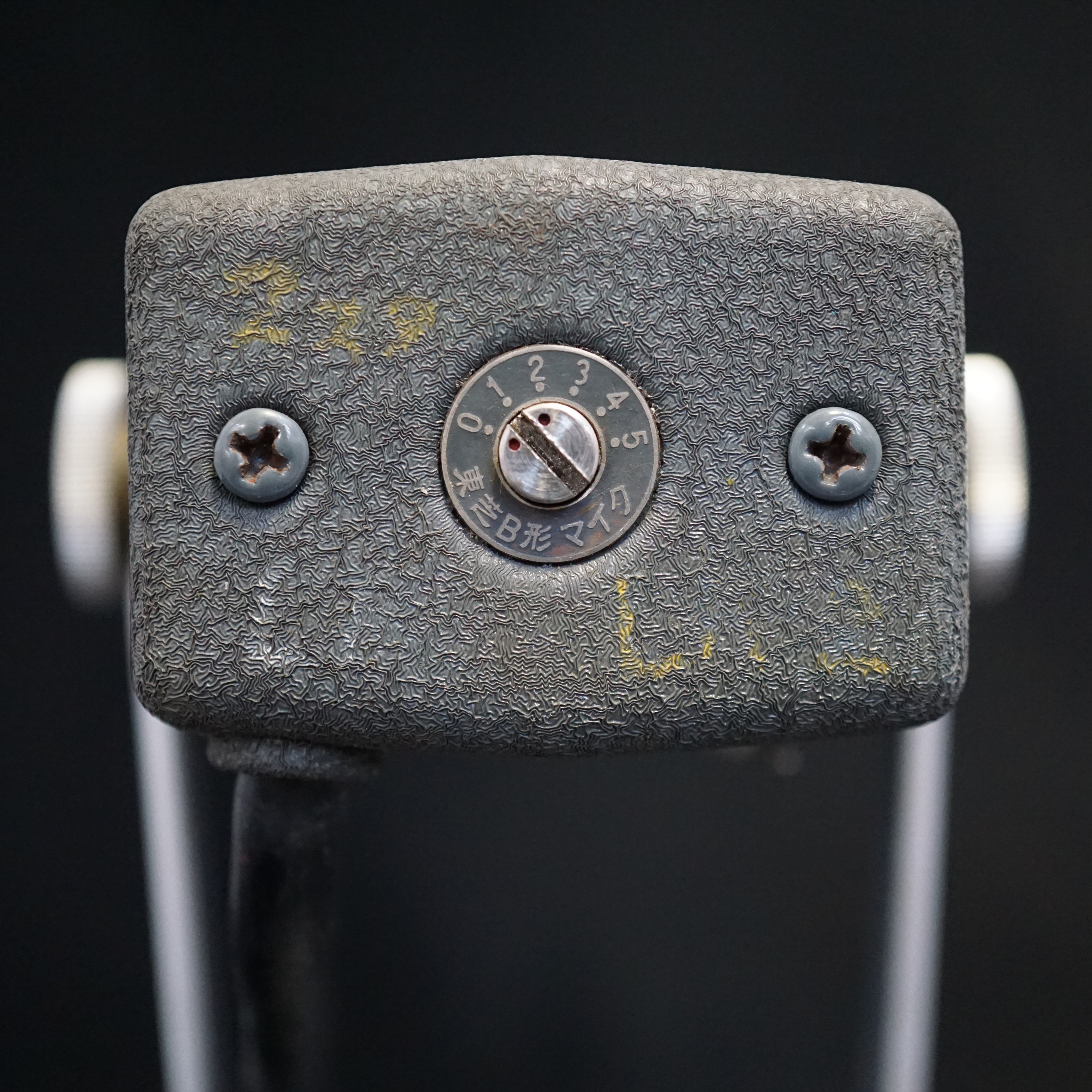

From a Japanese sale on Reverb.com: "First introduced in 1957, the Toshiba Type-B is a take on the RCA 44BX. Bi-directional with a figure-8 pattern the microphone has a high-pass position selector on the bottom of the mic."

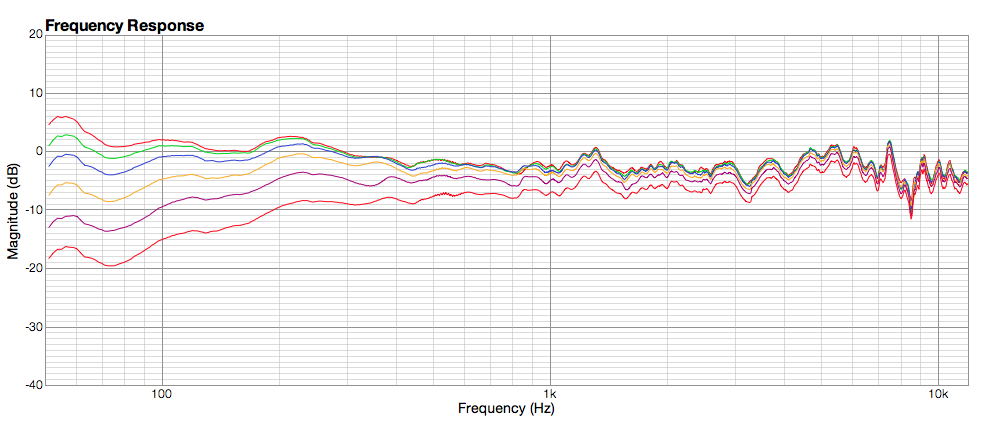

The frequency range plot shows the response in each of the six switch positions. Position 0 has the maximum bass response and position 5 has the most severe bass-cut.
