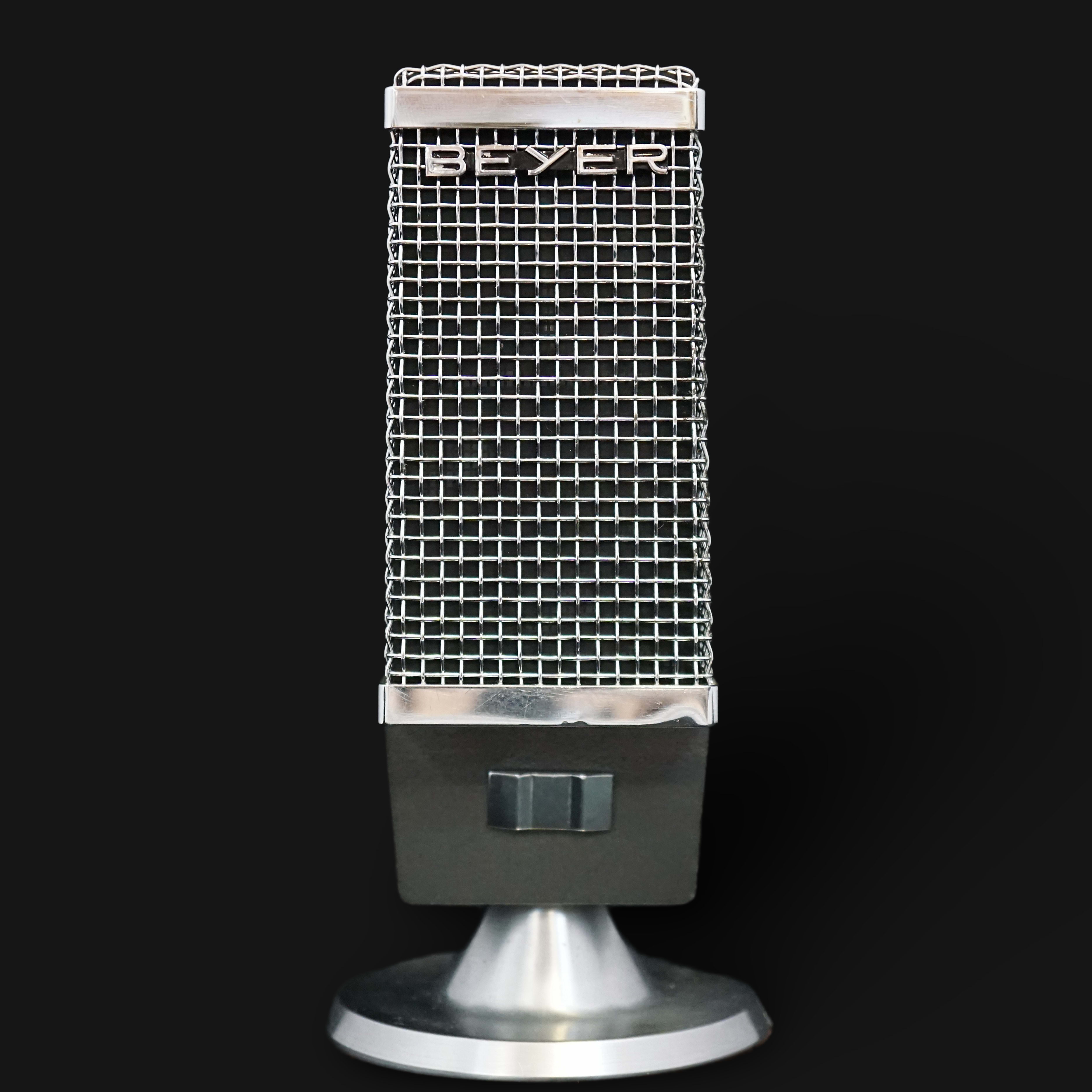

Beyerdynamic M360

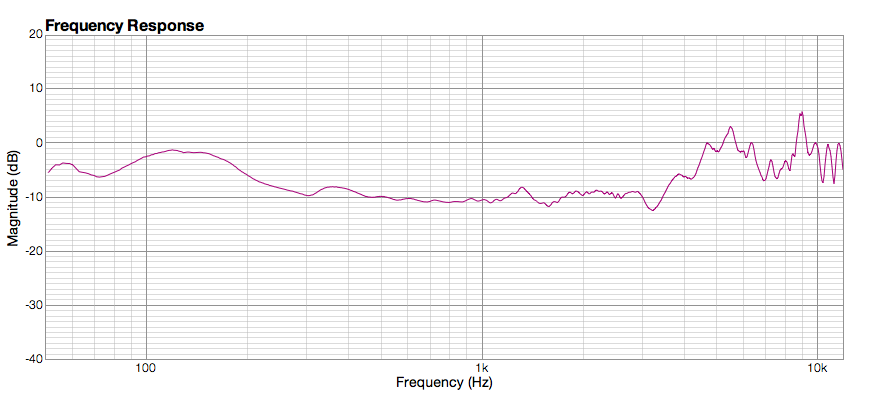

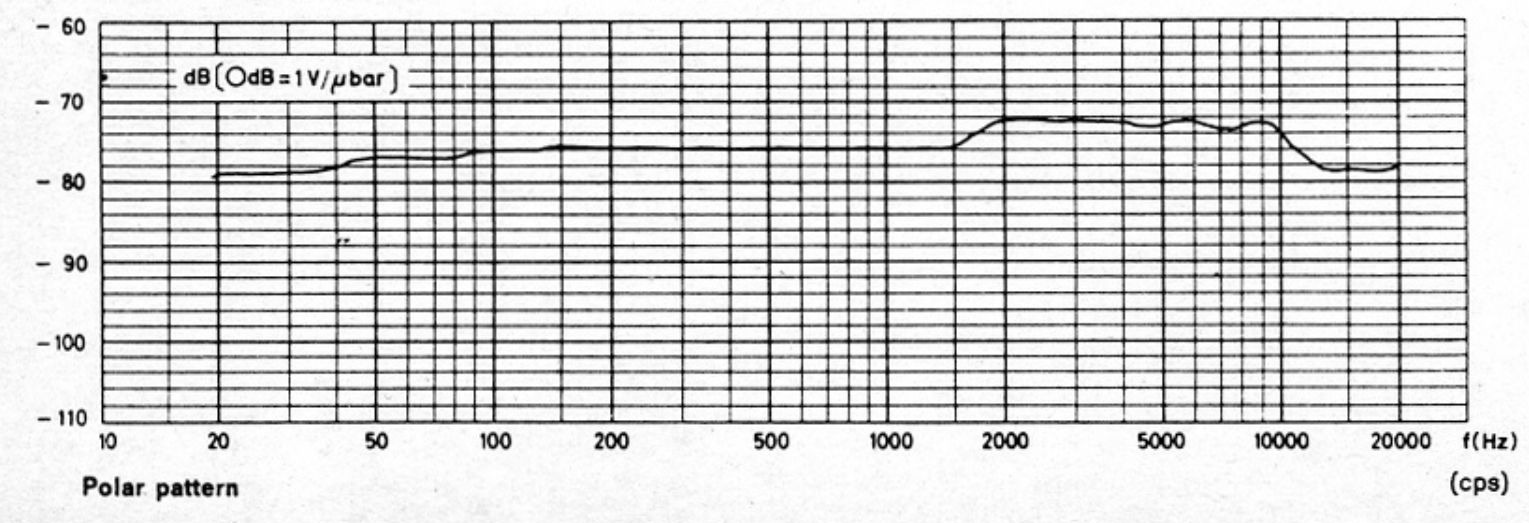

Frequency response measured by MoMics:

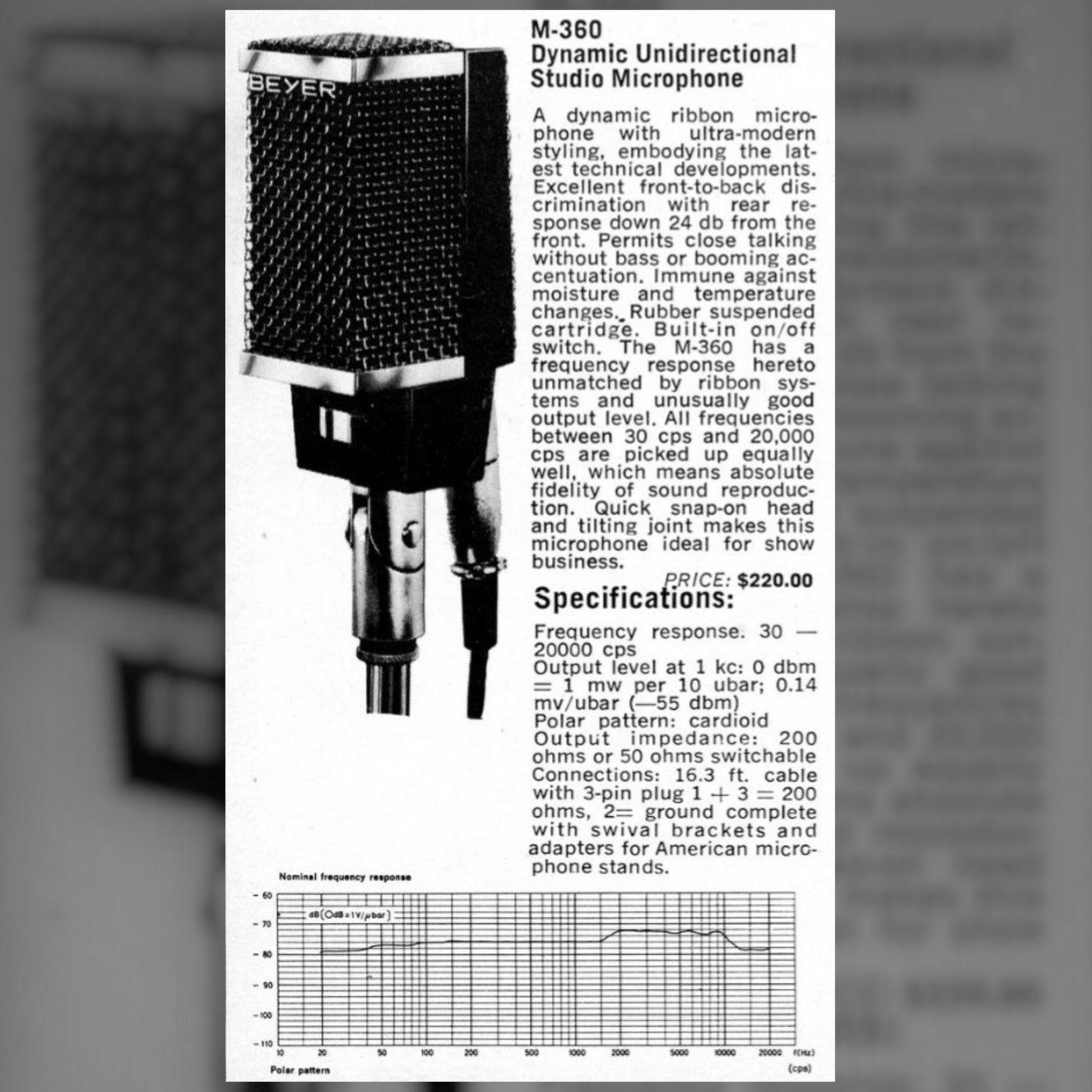

Manufacturer Description from 1965 Catalogue:
Dynamic Unidirectional Studio Microphone

"A dynamic ribbon microphone with ultra-modern styling, embodying the latest technical developments. Excellent front-to-back discrimination with rear response down 24 db from the front. Permits close talking without bass or booming accentuation. Immune against moisture and temperature changes. Rubber suspended cartridge. Built-in on/off switch. The M-360 has a frequency response hitherto unmatched by ribbon systems and unusually good output level. All frequencies between 30 cps and 20,000 cps are picked up equally well, which means absolute fidelity of sound reproduction. Quick snap-on head and tilting joint makes this microphone ideal for show business."

PRICE: $220.00

Specification:

• Frequency response: 30 – 20,000 Hz
• Output level at 1 kHz: 0 dbm = 1 mw per 10 ubar; 0.14 mv/ubar (–55 dbm)
• Polar pattern: cardioid
• Output impedance: 200 ohms or 50 ohms switchable
• Connections: 16.3 ft. cable with 3-pin plug 1 + 3 = 200 ohms, 2 = ground complete with swivel brackets and adapters for American microphone stands.

A discussion of the M320 and M360 at the Xaudia Blog

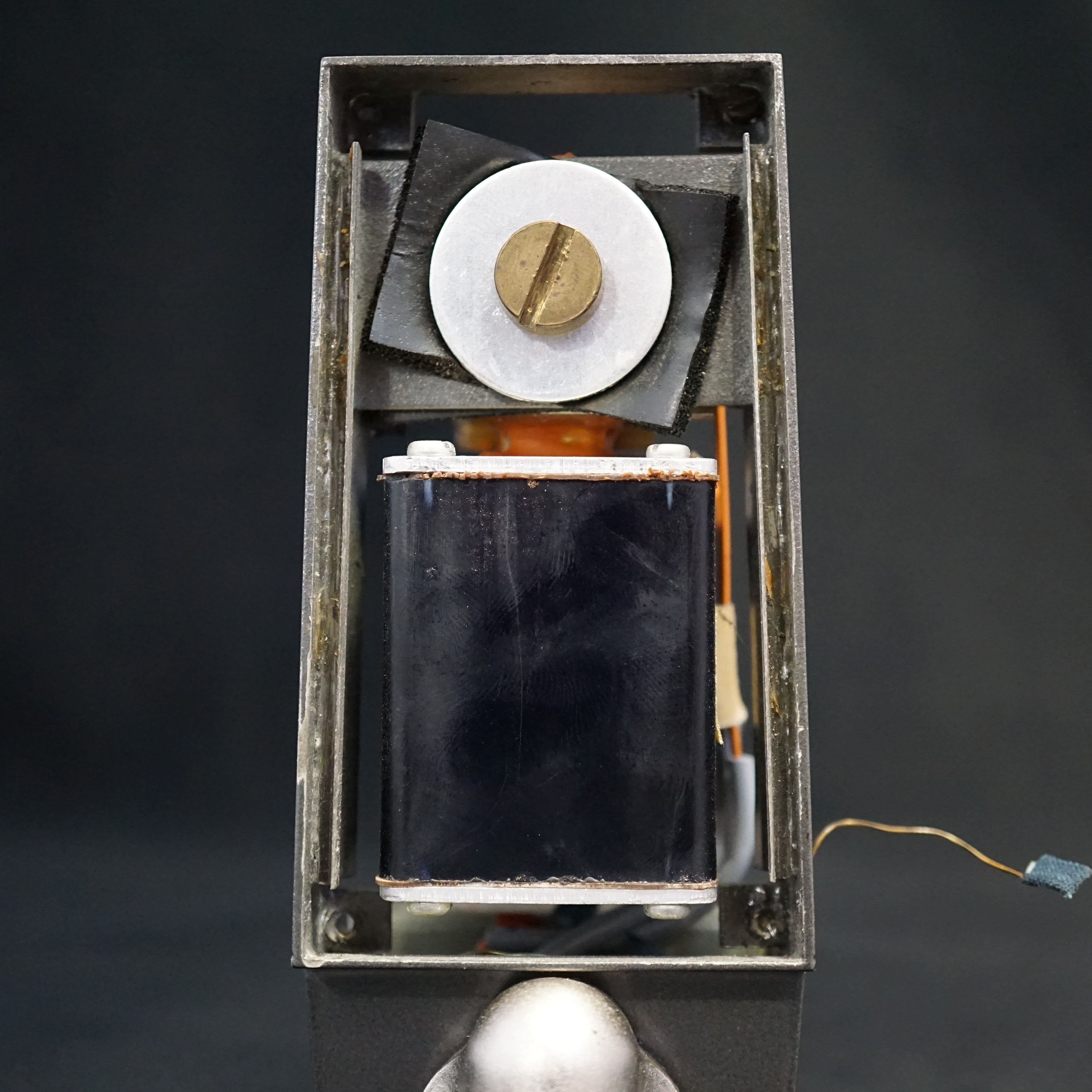

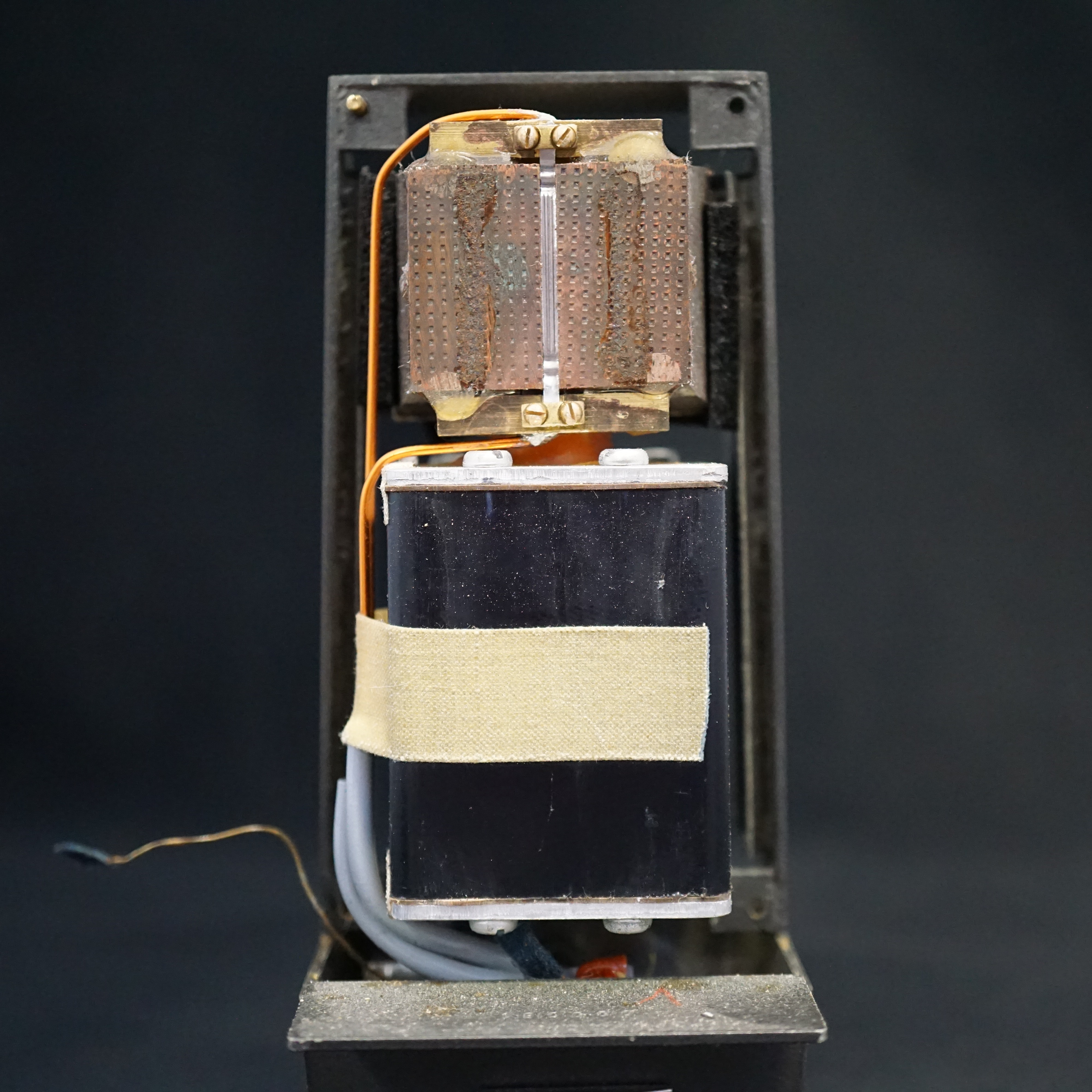

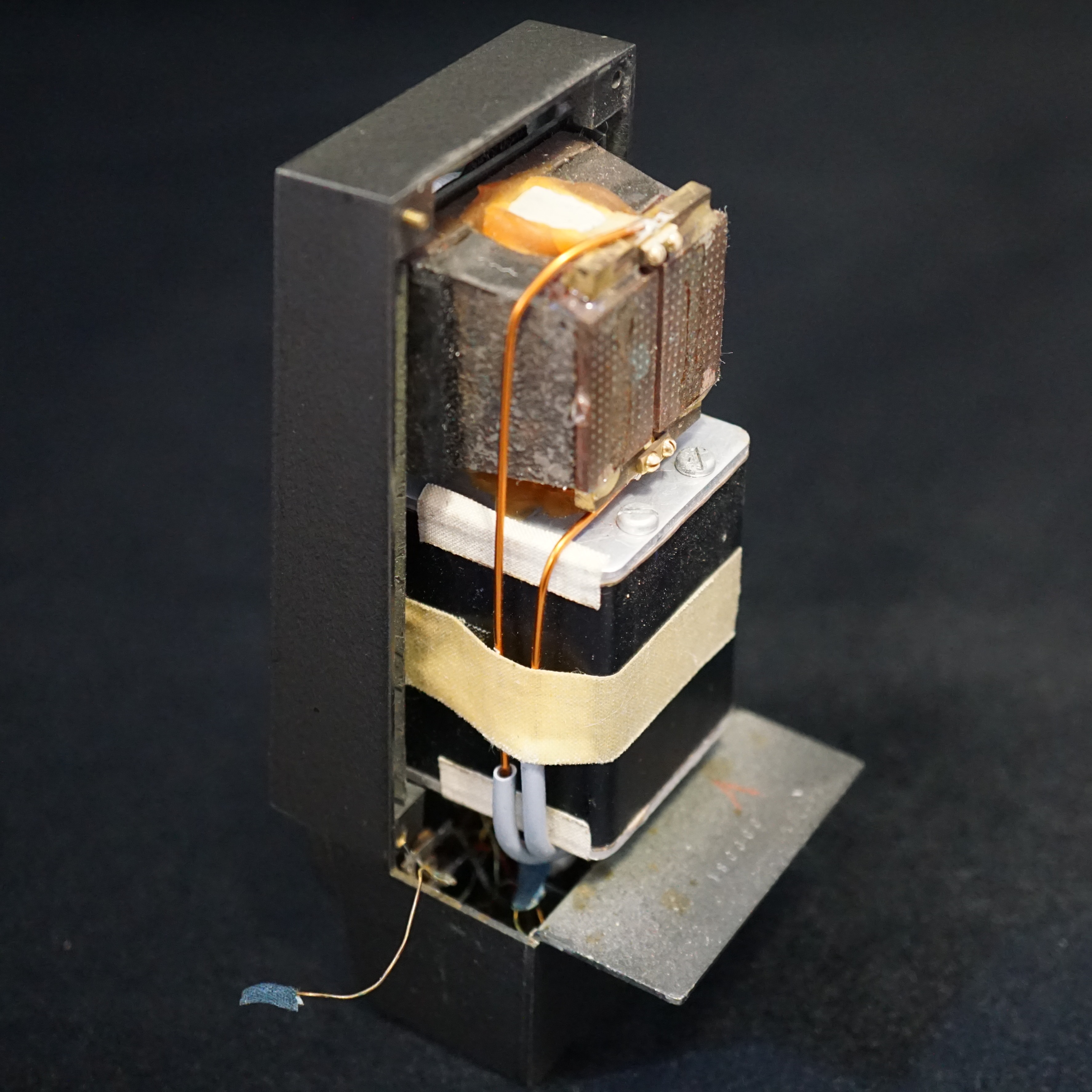

Further M360 dissection including a look at the acoustic labyrinth.

An article about Beyerdynamic ribbon mics in Sound on Sound magazine.

A post about the M360 at the RTP virtual museum. This includes a contemporary recording from 1965
