Beyerdynamic M260

Momics view:

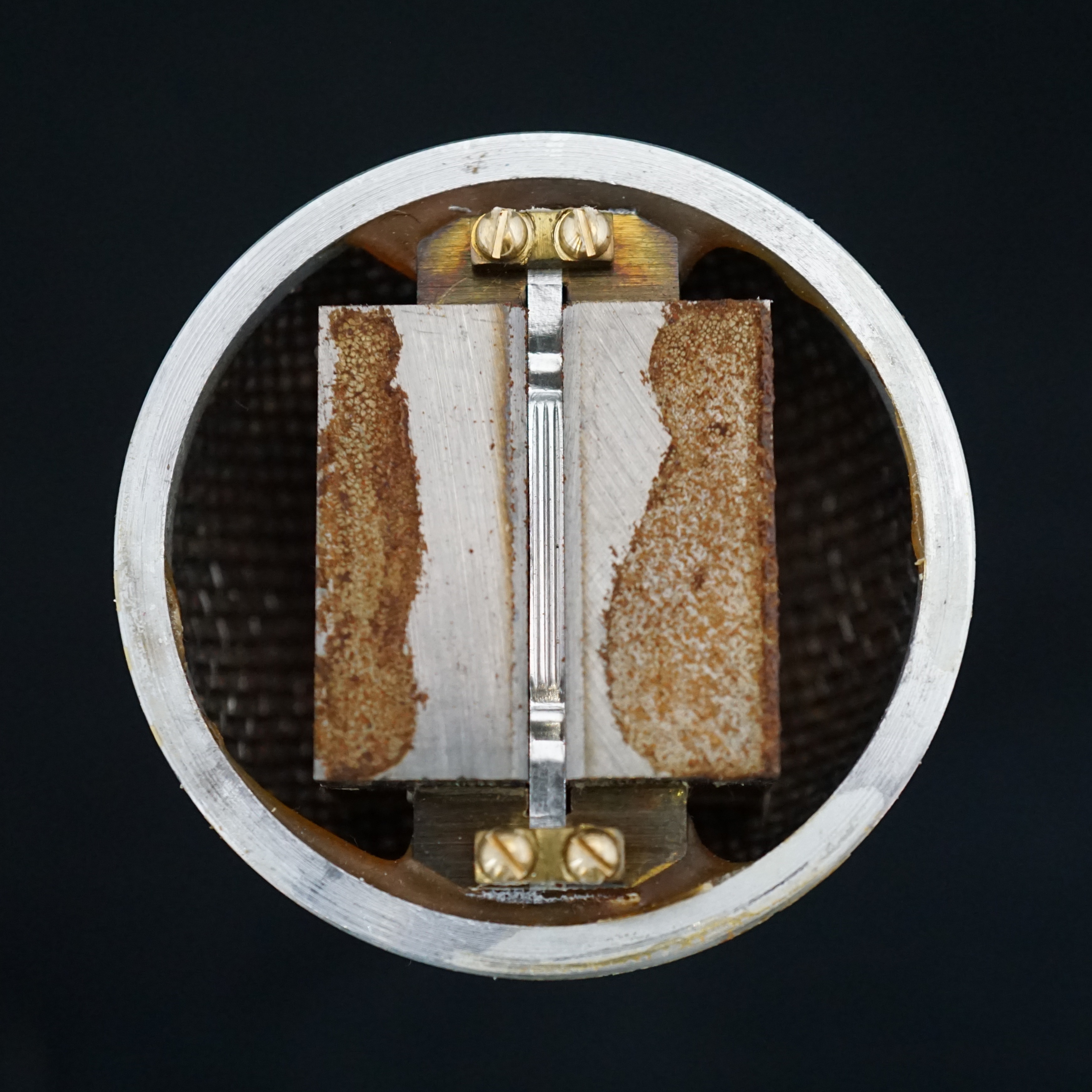

The Beyerdynamic M260 is one of the most common ribbon microphones that we see for repairs. It has a pistonic style ribbon which is corrugated across the ribbon at the ends only, with additional ridges lengthways to increase the rigidity. These can be successfully repaired with a standard corrugated ribbon, albeit with the loss of 1 to 2 dB output level.

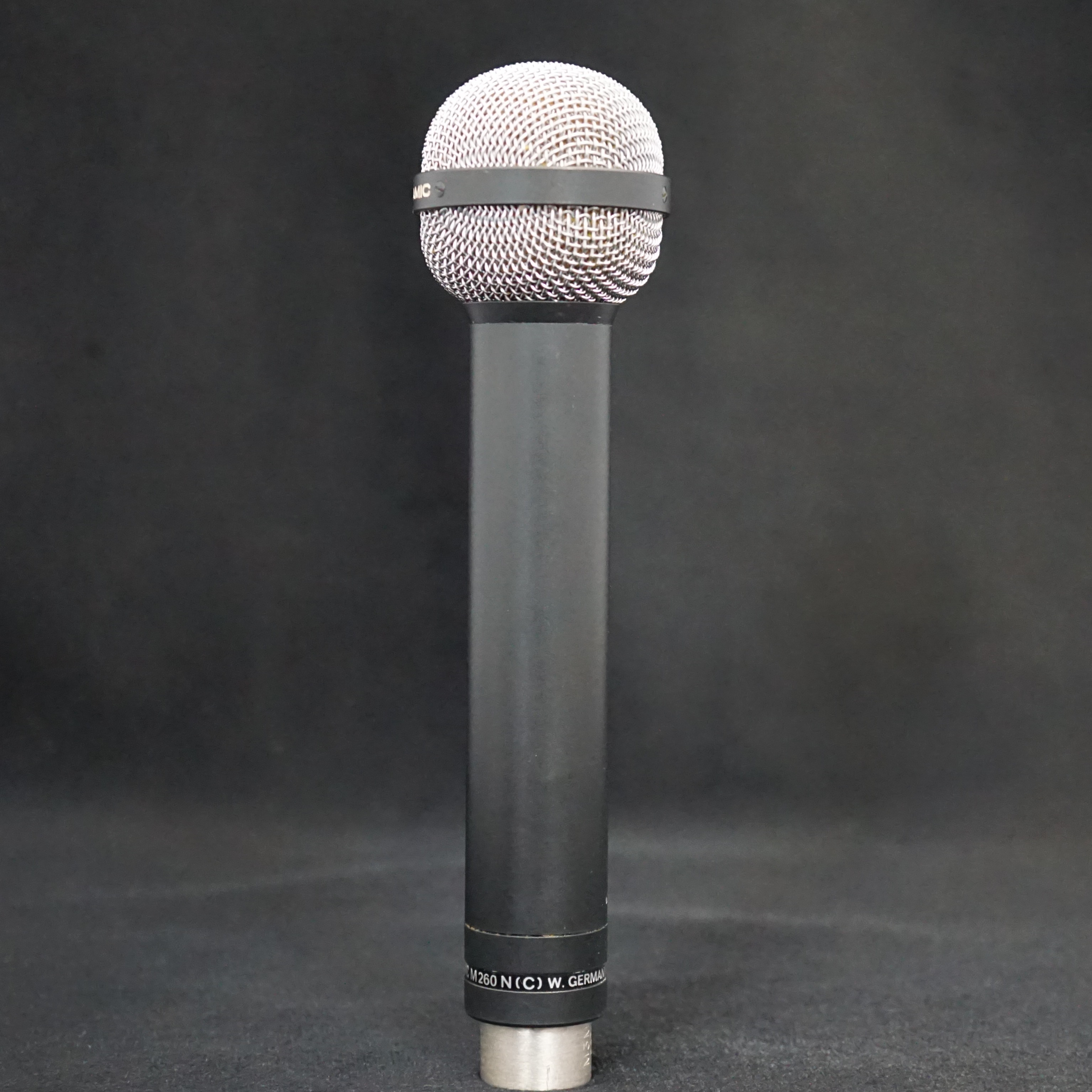

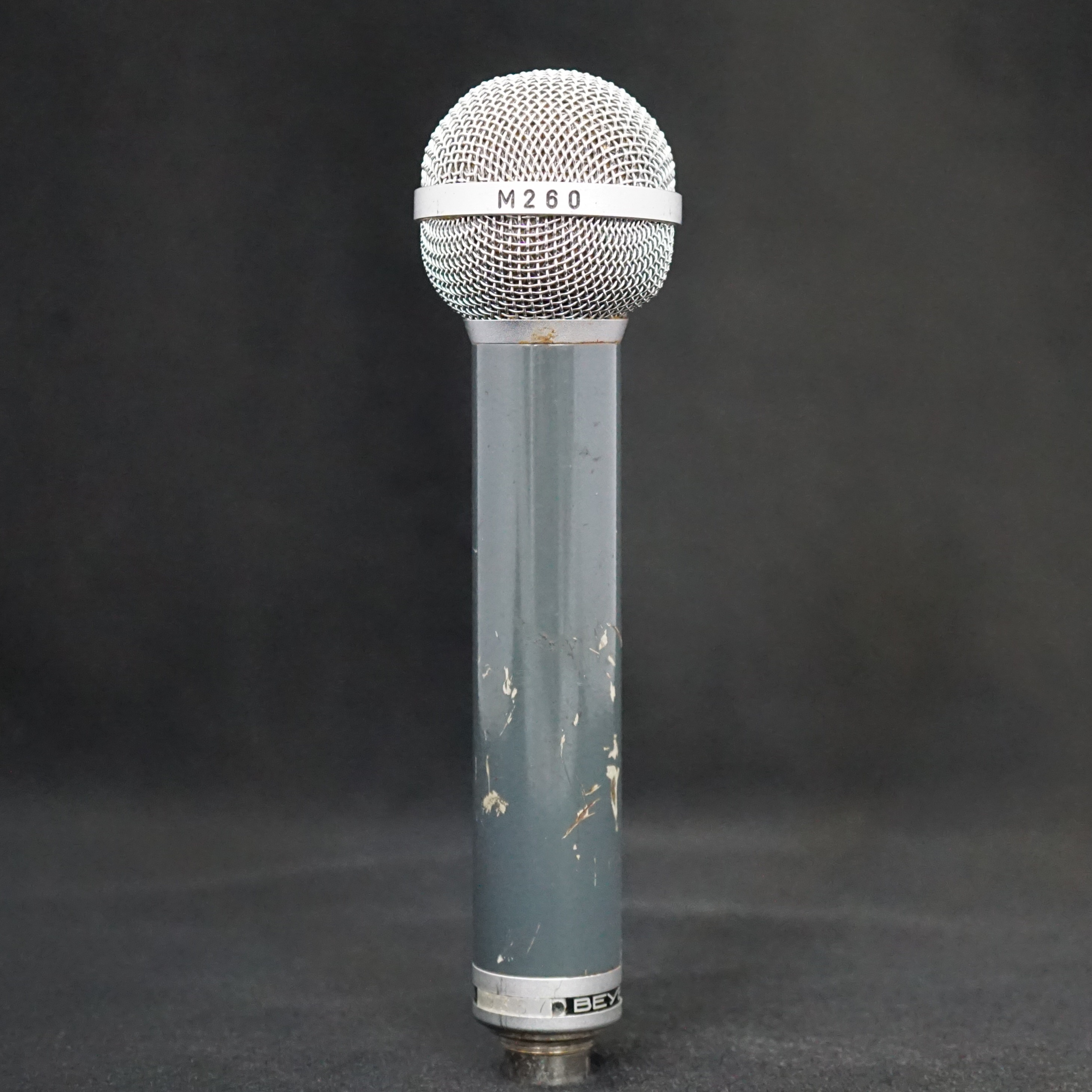

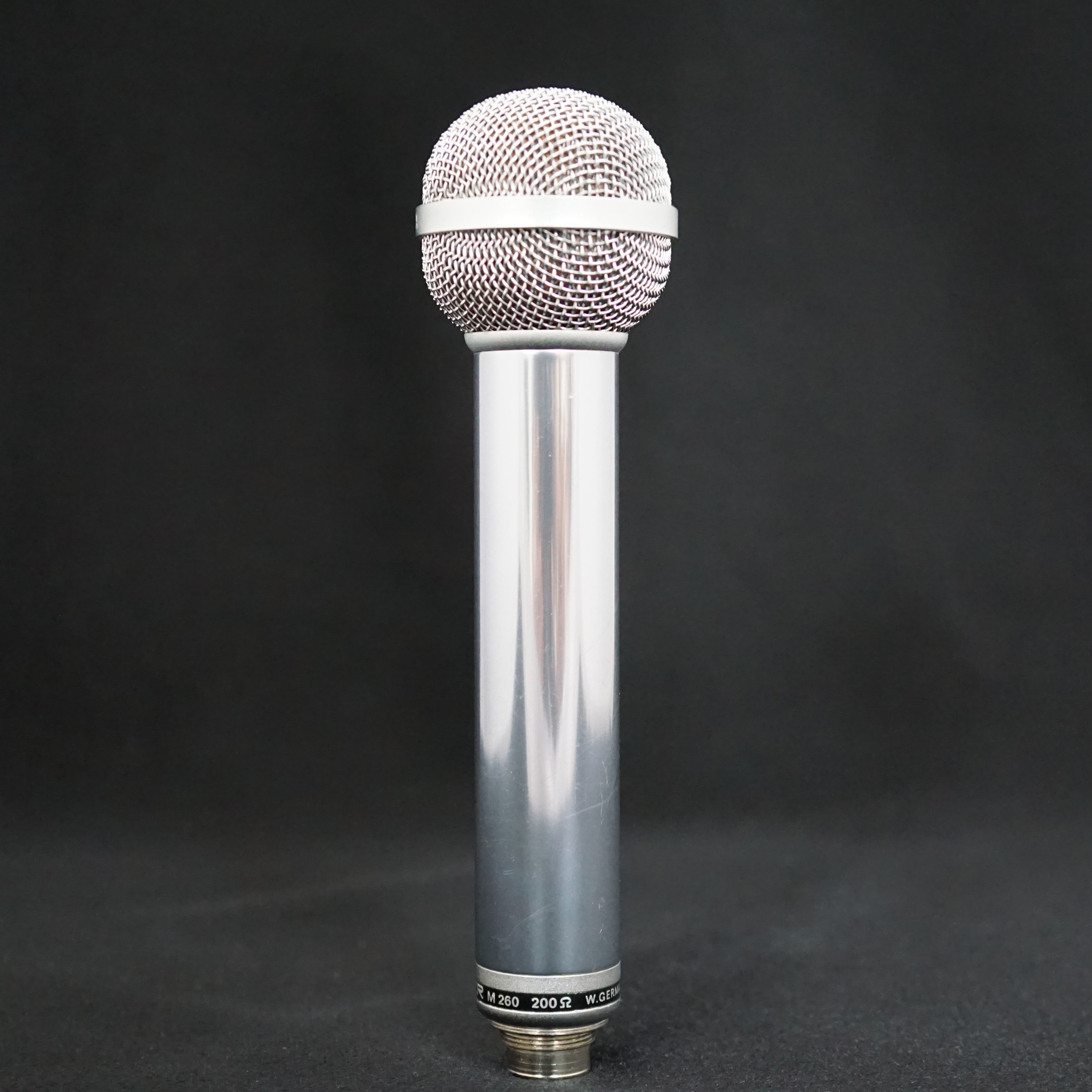

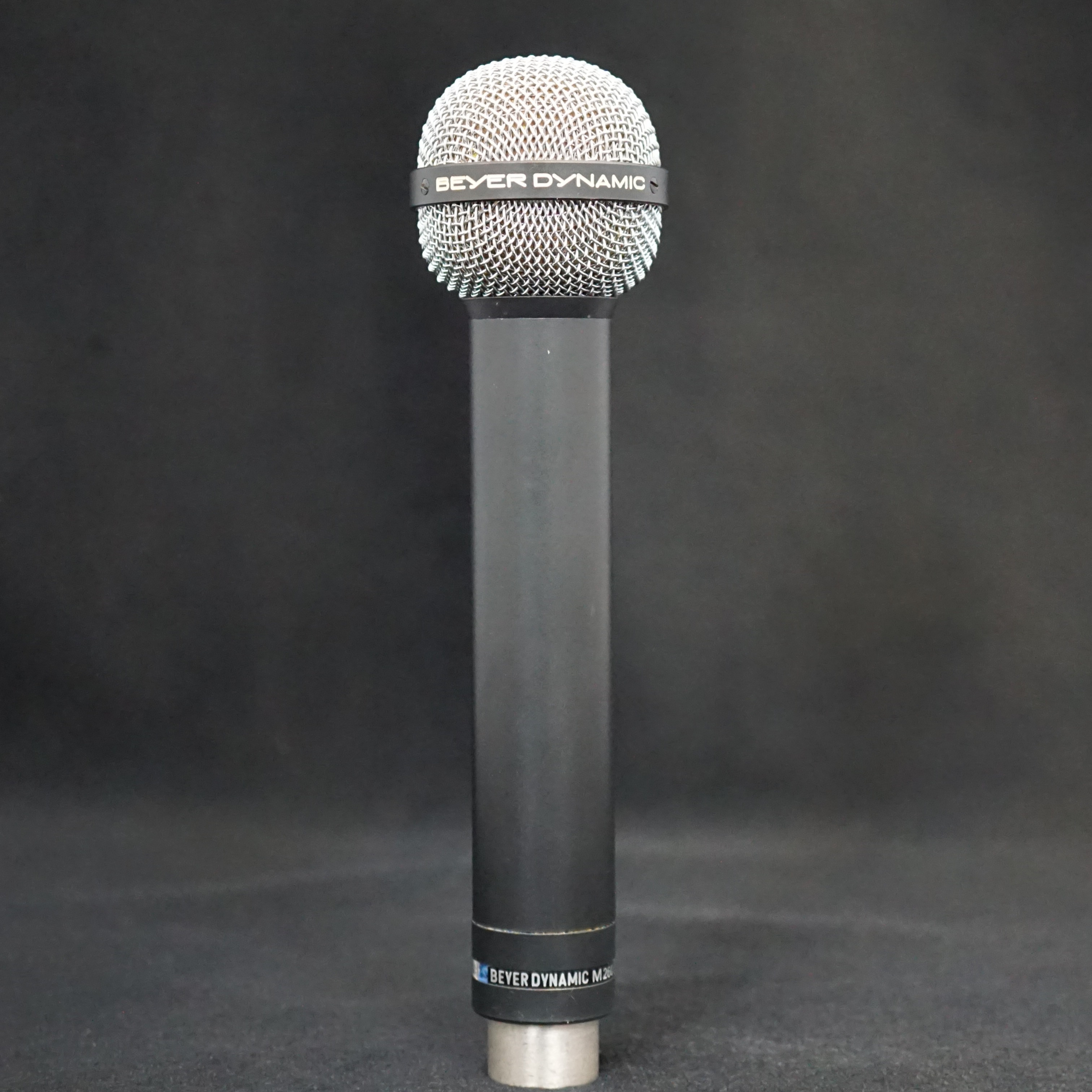

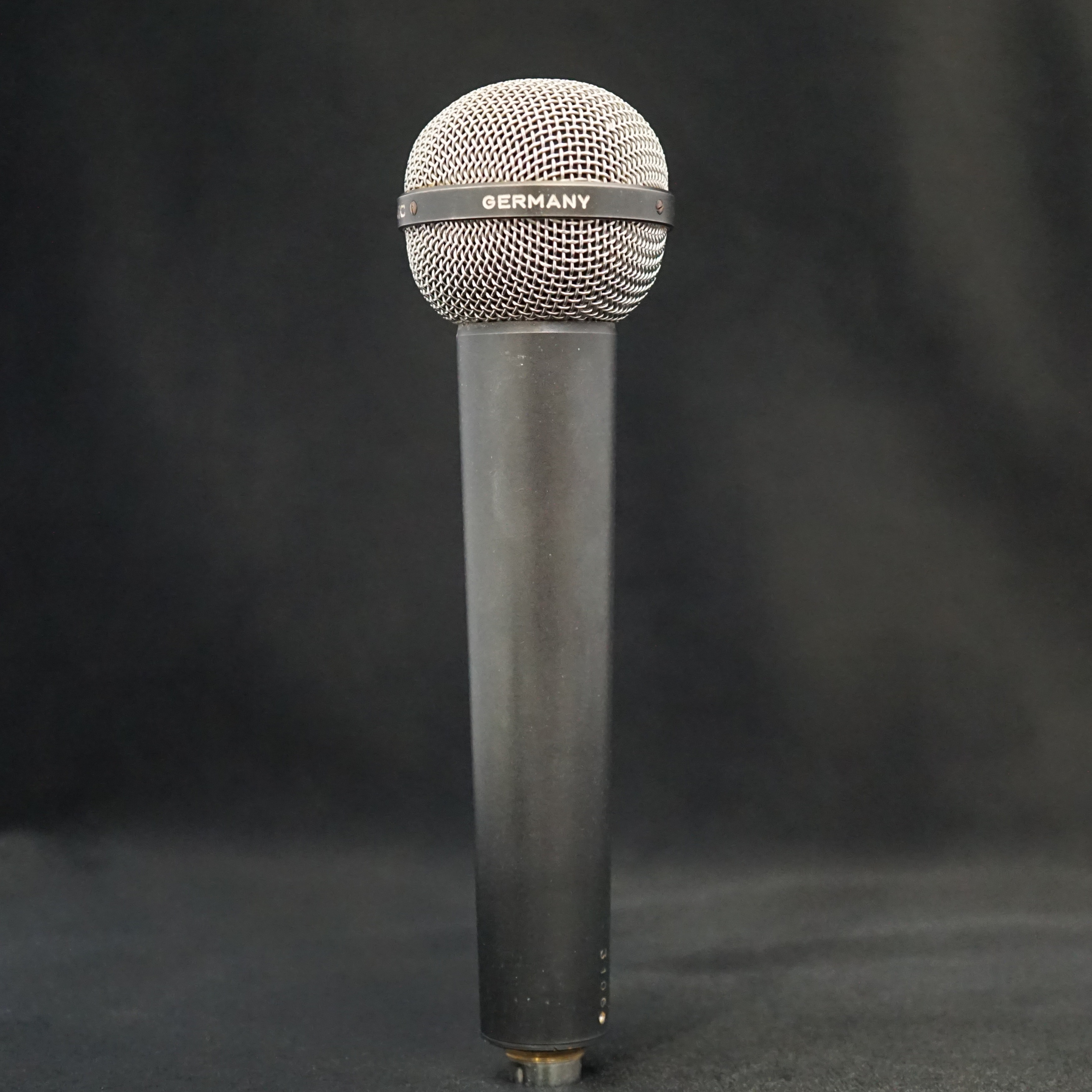

The M260 evolved greatly over the years. The earliest model is a pale blue colour with a fixed cable in place and often has red lettering on the grill. Middle aged models were produced with a grey-blue body and silver grill, and later versions from the 1980s are black with a black band around the grill. The final major revision switched from a straight body tube to a tapered tube, making it look more like a Shure SM57.

Microphones marked with .80 have a high pass filter (bass cut) built into the transformer.

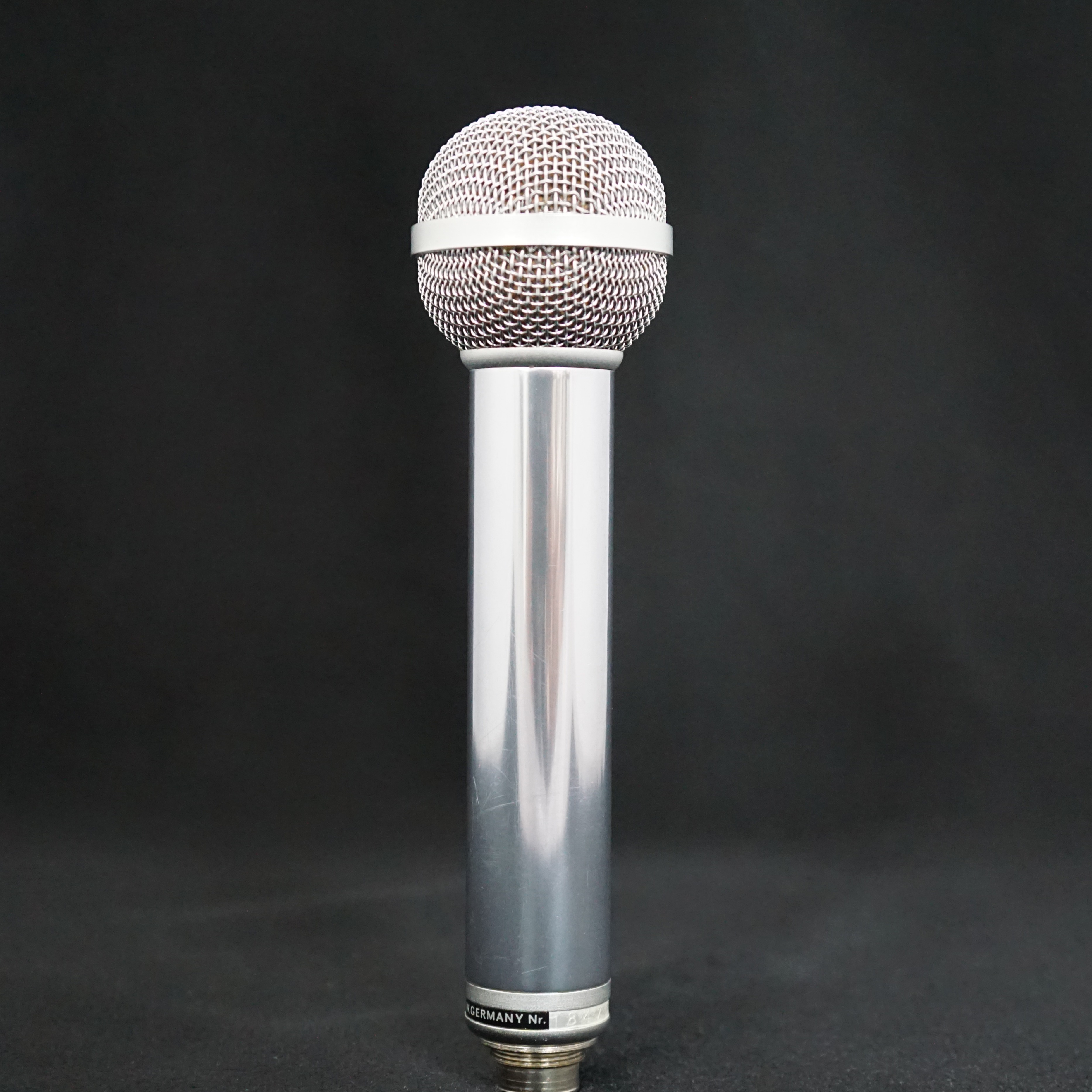

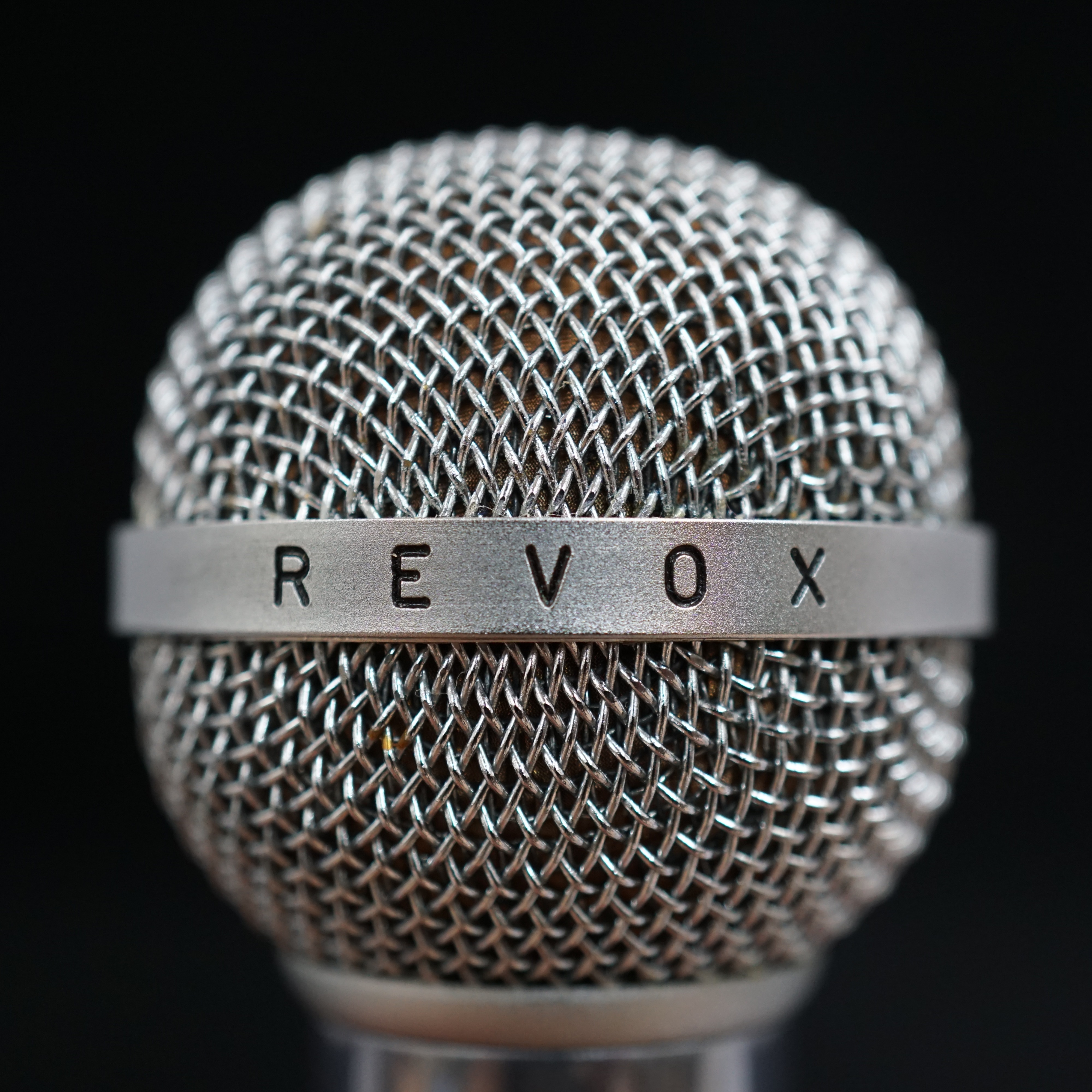

The silver M260 pictured with REVOX branding would likely have been sold in combination with a revox tape machine.

Acoustical mode of Operation: Pressure gradient

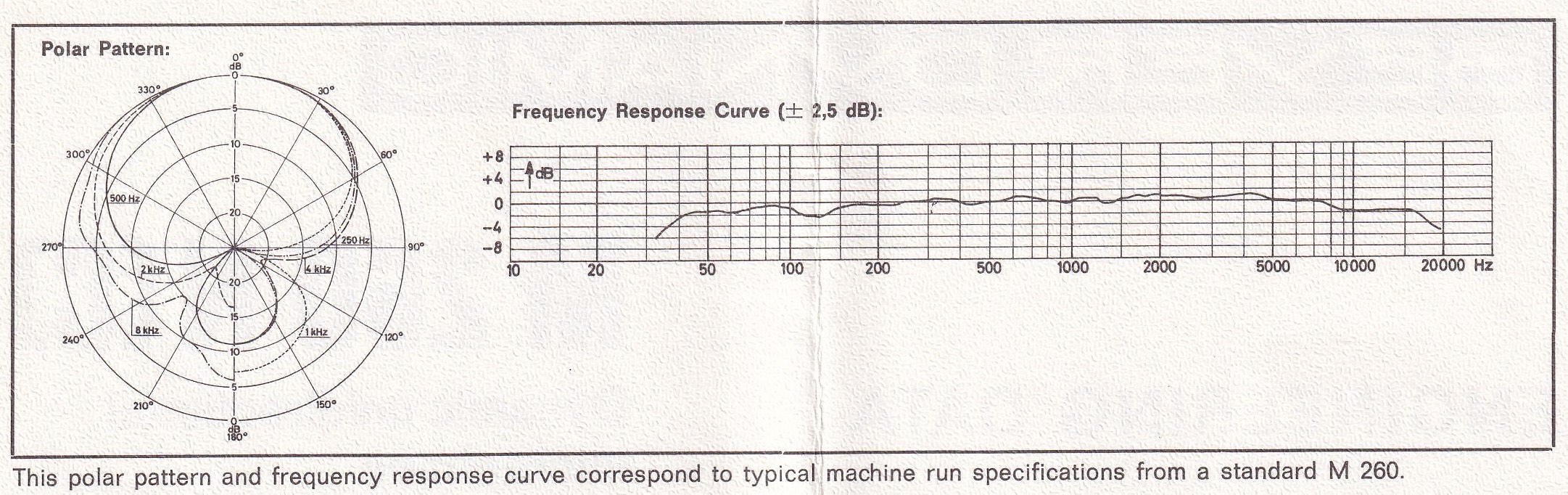

Frequency range: 50-1 8.000 Hz

Polar pattern: Hypercardioid

Side attenuation at 120 degrees: 20 dB

Output level at 1 kHz (0 dbm or 1 mW/10 dynes/cm2): 60 dBm

EIA sensitivity rating: -153 dBm

lmpedance: 200 ohms

Rated Load: >1000 ohms

Diaphragm (Ribbon): Pure aluminum

Case material: Steel

Finish: Shaft: grey varnished top; mesh: chromium-plated

Net weight: 8.47 oz. (240 grams)

Built-in connector: Switchcraft M3M or small touchel DIN plug.

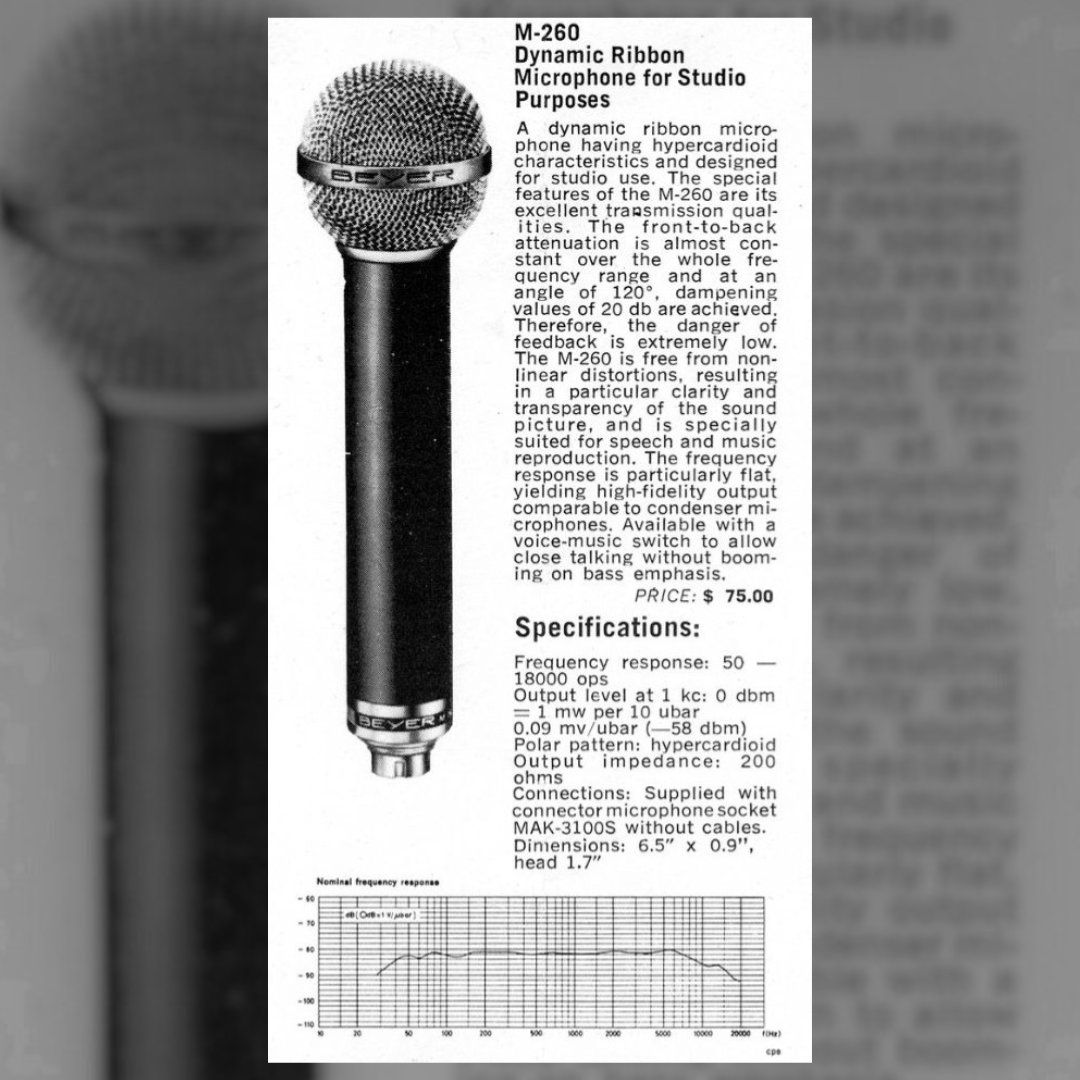

Download the Beyer M260 N (C) leaflet
