Beyerdynamic M500
Manufacturer:
BeyerdynamicModel:
M500Country of Manufacture:
GermanyMicrophone Type:
RibbonPolar Pattern:
HypercardioidProduction Start Year:
1969Production End Year:
1990Rarity:
2
Audio Recordings:
Speech (male) recorded with a Beyerdynamic M500 ribbon microphone.
Multiple quality options available
Nylon string guitar recorded with a Beyerdynamic M500 ribbon microphone.
Multiple quality options available

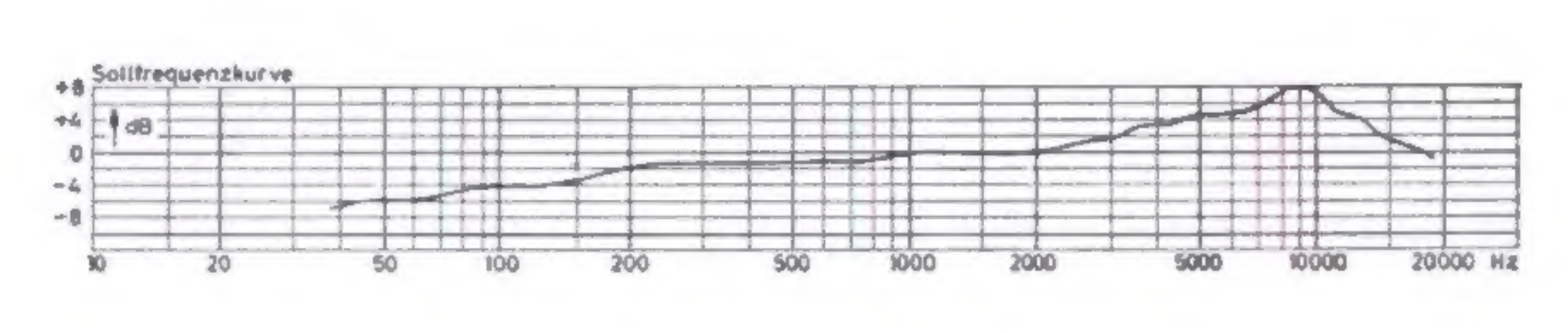

Frequency Response:
Microphone History:

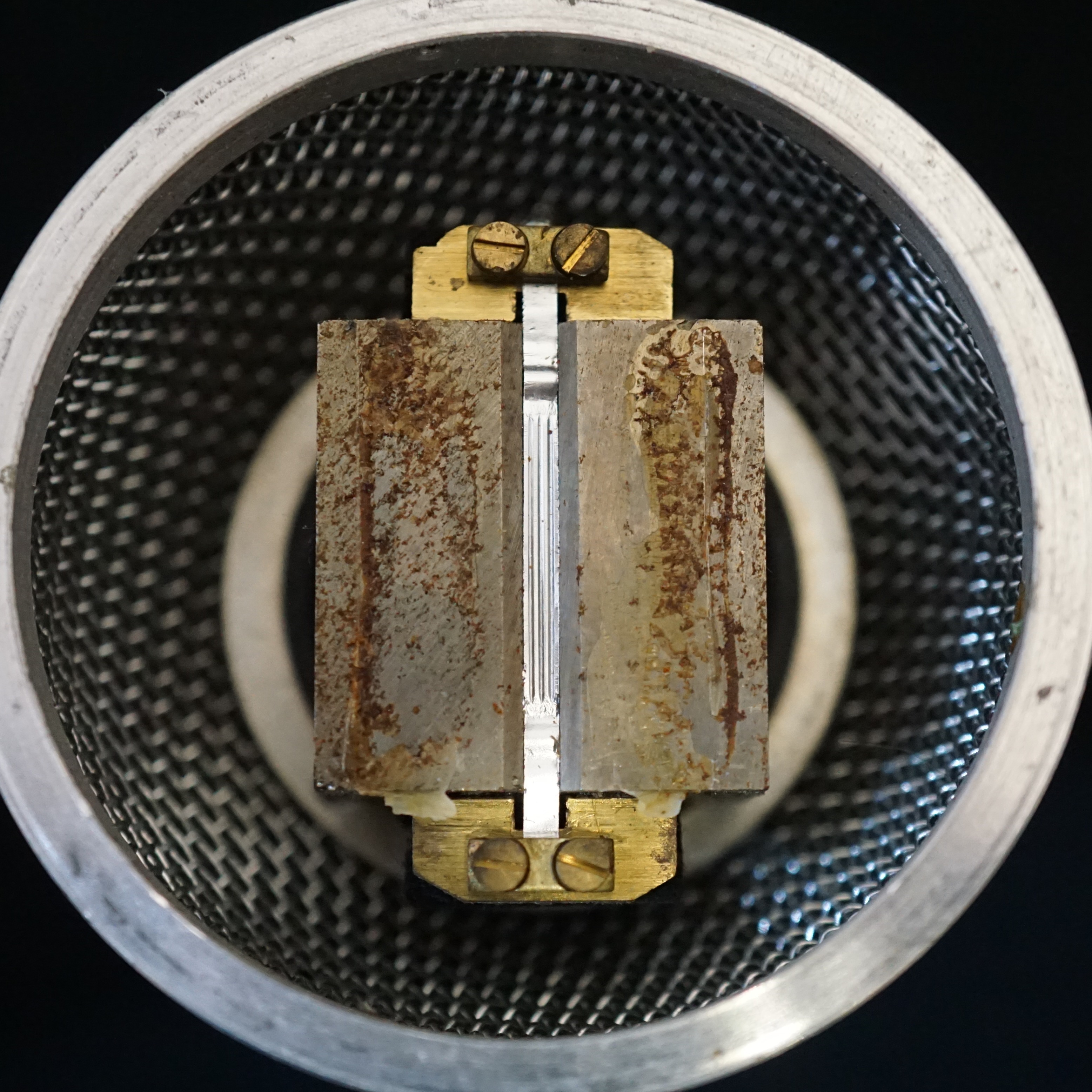

The beyerdynamic M500 is a hypercardioid ribbon microphone that was produced from approximately 1969 to 1990 and was notably the first handheld ribbon microphone designed for stage use. It was popular for vocals due to its smooth sound and extended high frequency response, famously used by Frank Sinatra for live performances. Its design featured a single, precision-built aluminum ribbon and was rugged for a ribbon microphone, combining the warm character of a ribbon with the reliability of a dynamic mic.
Technical Description:
From the Beyer catalog of 1976-77
A ribbon microphone specifically designed for vocal soloists and musicians. Suppression of popping, sibilance, and breath noise by an integrated burst filter. Excellent rear attenuation, therefore extremely low feedback.
Frequency Range: 40 - 18,000 Hz
Polar Pattern: Hypercardioid
Open-circuit sensitivity: 1.3 mV/Pa & -78 dBV
Electrical Impedance: 500 Ohms (200 Ohm version available upon request)
Nominal Load Resistance: > 1000 Ohms
Length: 189 mm; Shaft: 24 mm at the bottom; Basket: 56.5 mm
Weight: 240 g
