Philips EL3750
Manufacturer:
PhilipsModel:
EL3750Country of Manufacture:
NetherlandsMicrophone Type:
DynamicPolar Pattern:
CardioidProduction Start Year:
1959Rarity:
2
Audio Recording:
Nylon string guitar recorded with the Philips EL3750 dynamic microphone.
Duration: 1:06Size: 1.3 MBFormat: MP3
Multiple quality options available
Impulse Response File:
Impulse Response file of the Philips EL3750 dynamic microphone.
Philips_EL3750_IR.wav
Format: VND.WAVESize: 0.5 MB

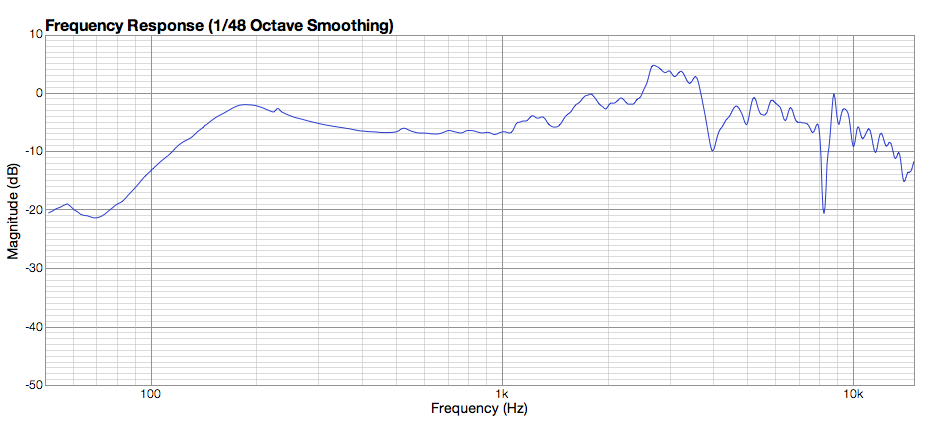

Frequency Response:
Technical Description:
Technical Data:
- Operating Principle: Pressure gradient receiver
- Directional Characteristics: Cardioid
- Frequency Range: 50 Hz to 10 kHz
- Sensitivity: 3.1 mV/Pa at 25 kΩ
- Impedance: Low and high impedance
- Power Supply Connection: Permanently attached cable with 3-pin male DIN connector
MoMics view.

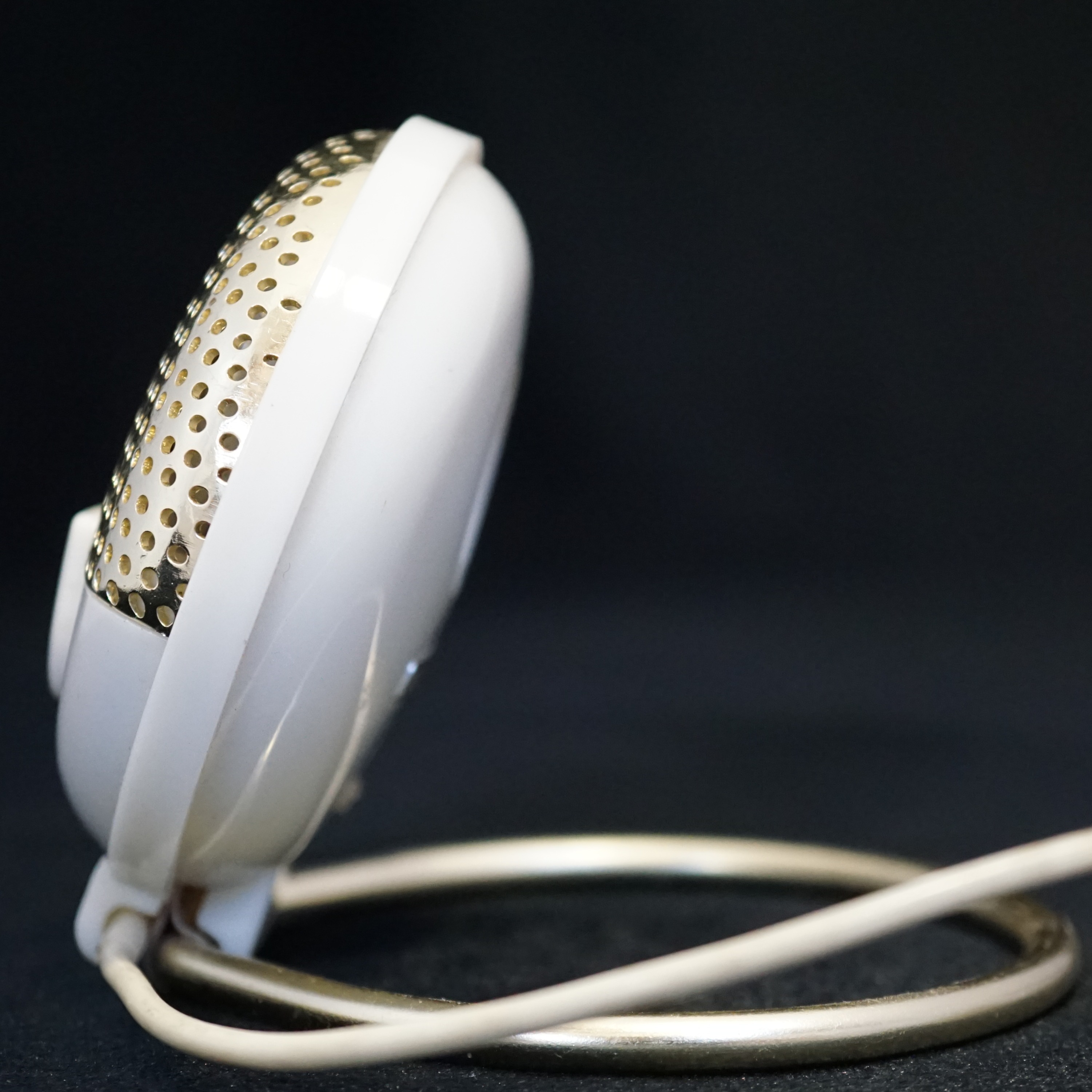

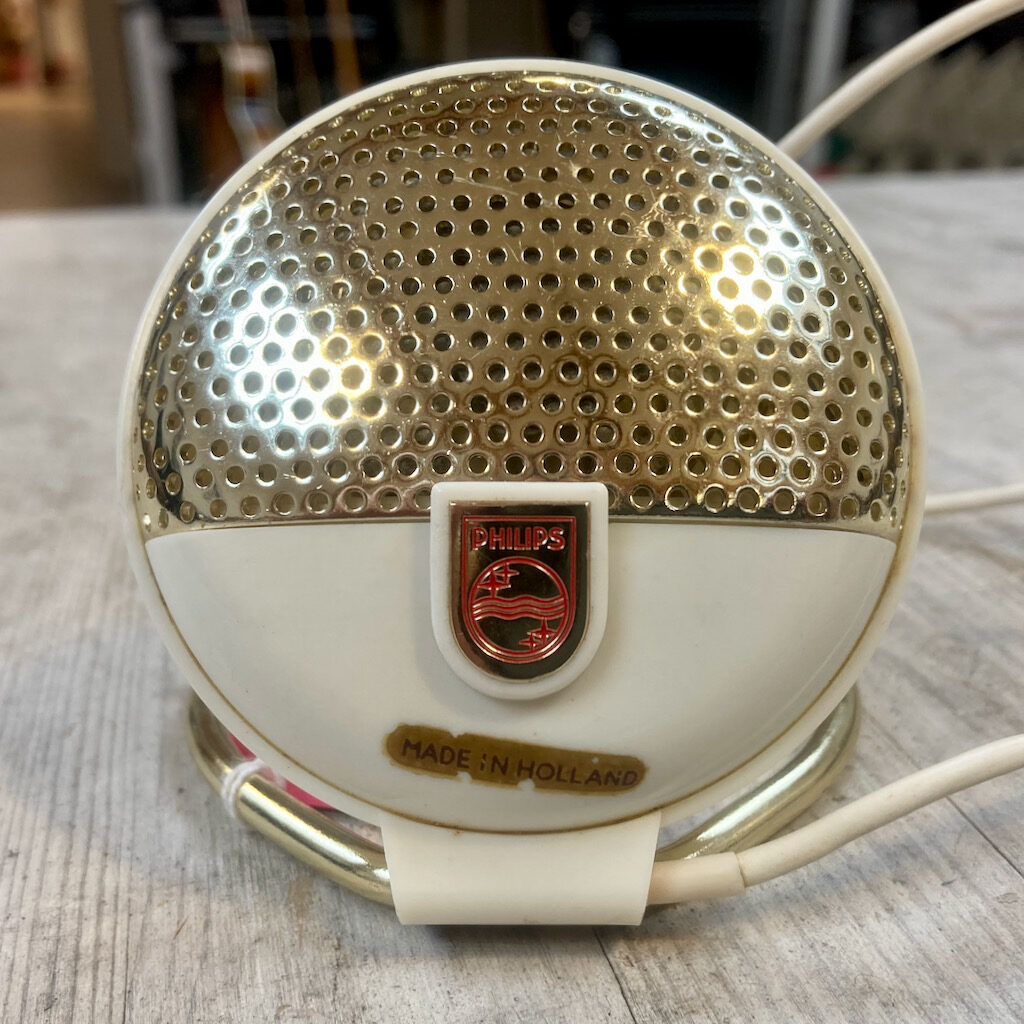

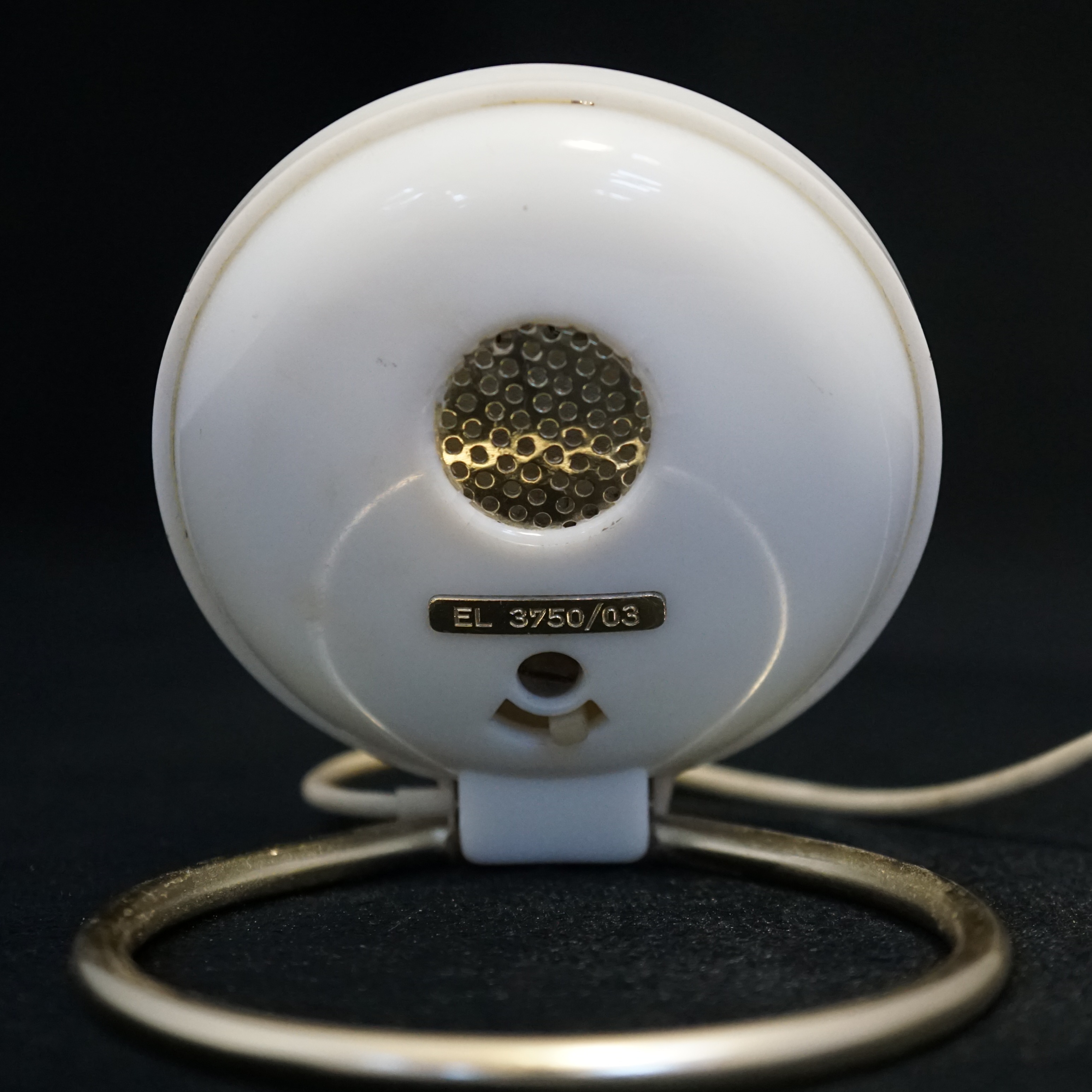

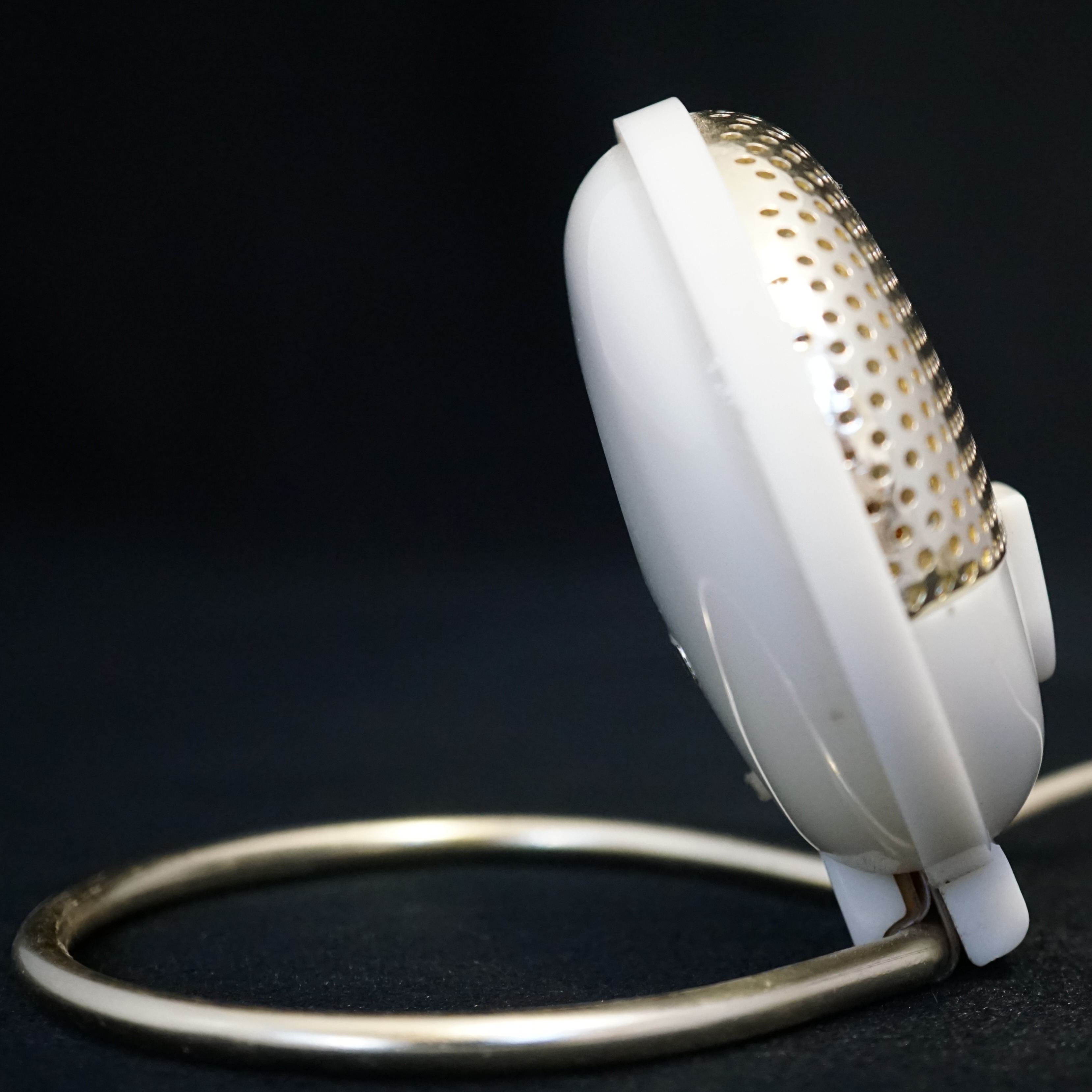

These stylish but small plastic bodied dynamic microphones were made in large quantities for home tape recording. They have a metal grill, fixed cable and an integrated fold-down loop of metal that acts as a desk stand. The construction is very elegant and well thought out - the two halves of the microphone body are held together with a single screw.
These were often sold with reel-to-reel tape recorders from other manufacturers. It is common to see different logos on EL3750 mics to match the tape recorder's branding. They generally sound good and can still be found for sale at sensible prices.
