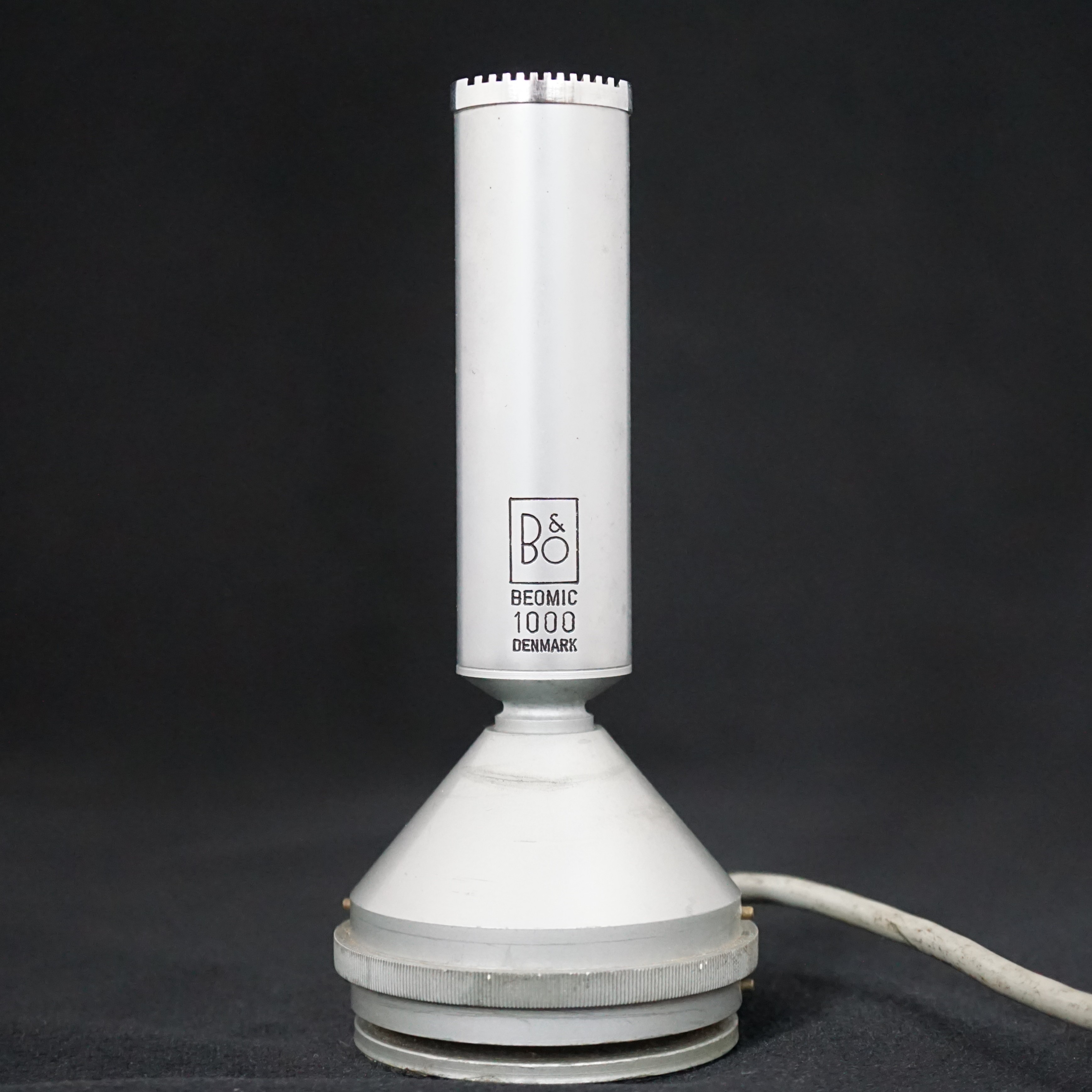

Bang & Olufsen BEOMIC 1000
Manufacturer:
Bang & OlufsenModel:
BEOMIC 1000Country of Manufacture:
DenmarkMicrophone Type:
DynamicPolar Pattern:
OmnidirectionalProduction Start Year:
1969Rarity:
2
Microphone History:
The Beomic 1000 was the successor to the popular MD8 dynamic microphone. According to BeoWorld.org, the MD8 was Designed by Jacob Jensen, the MD8 won the iF Award in 1967. It was a dynamic pressure microphone with spherical directional characteristics and high sensitivity.

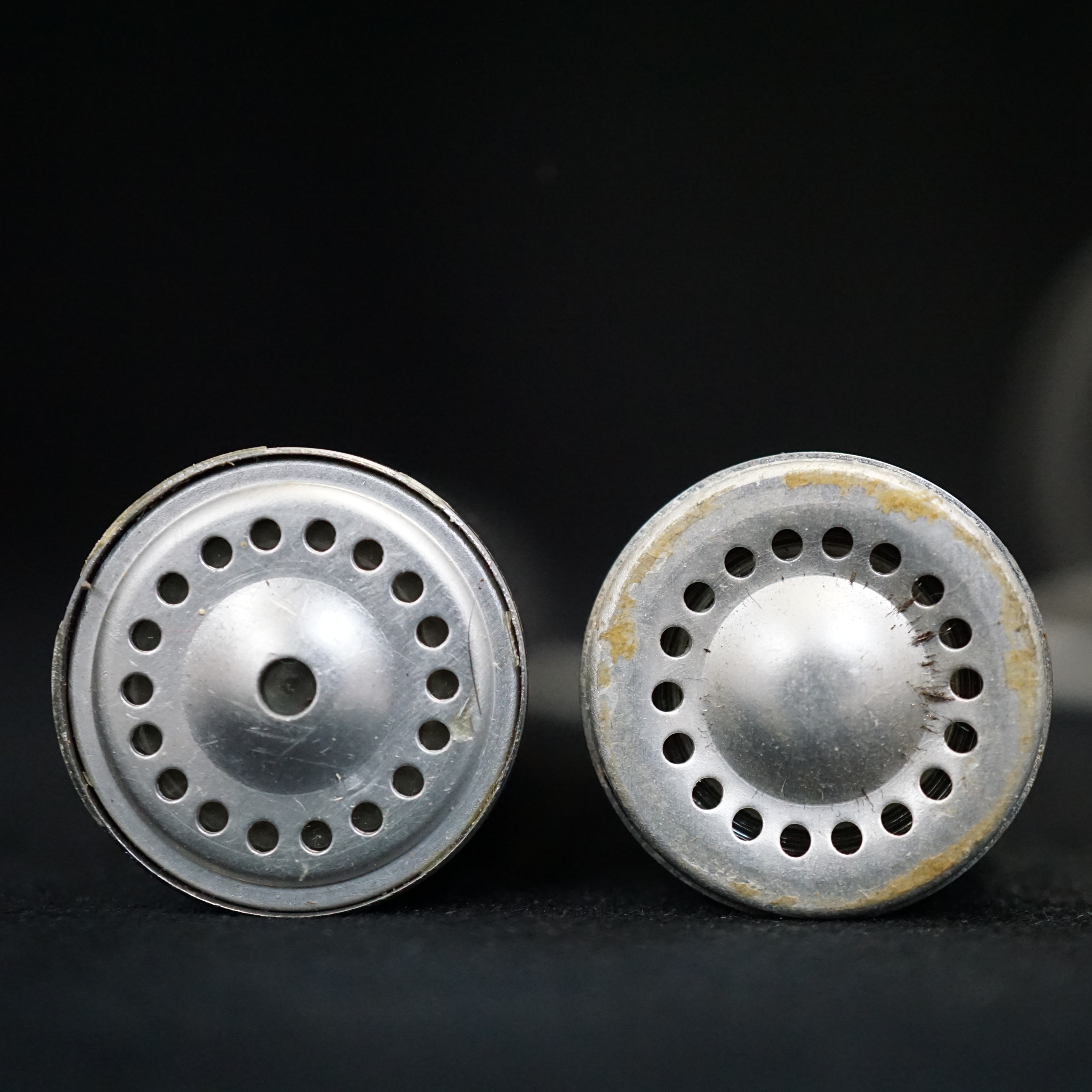

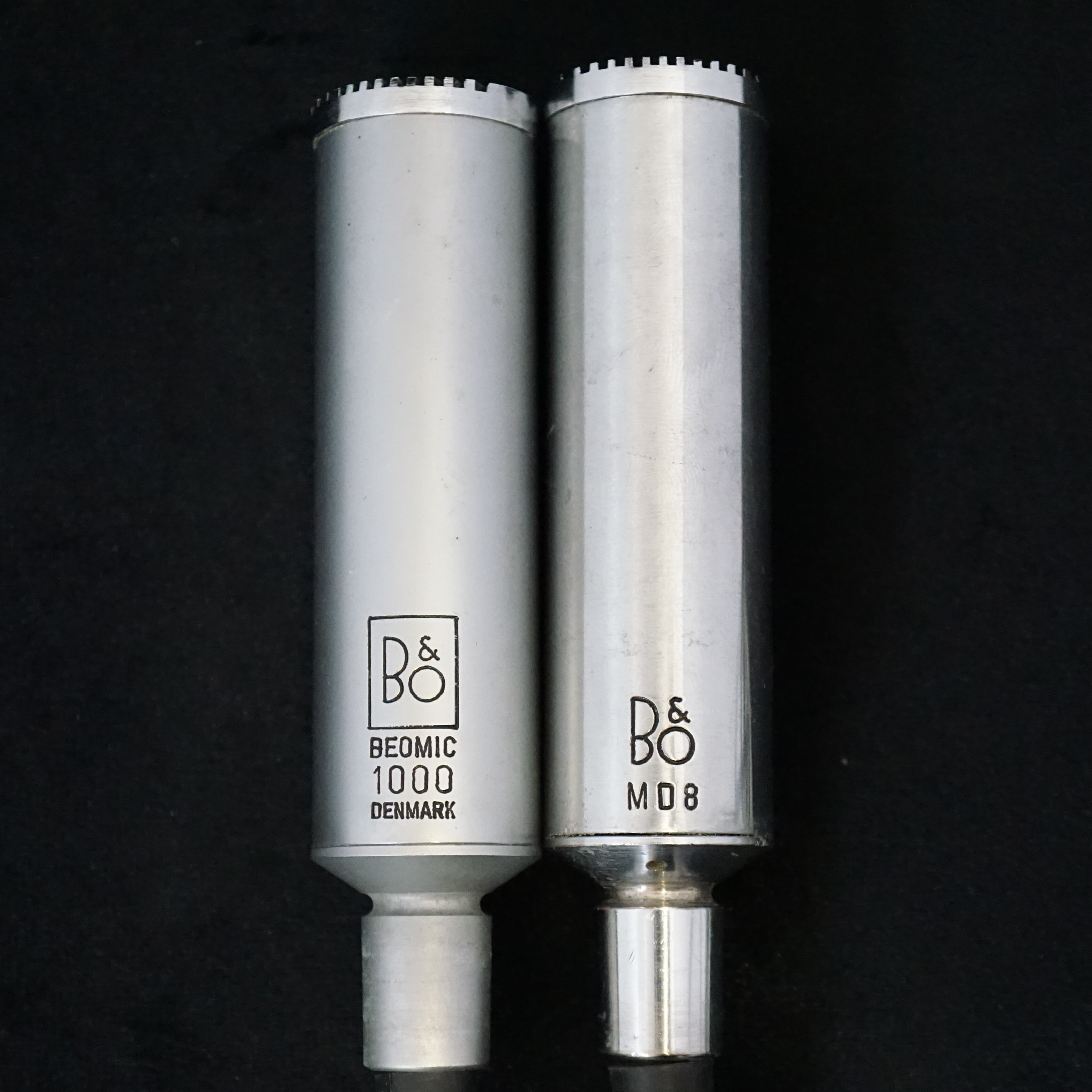

Although visually very similar, the Beomic 1000 has a different capsule to its predecessor, with an additional hole in the centre of the front baffle. The Beomic 1000 also won the iF award two years after the MD8..
Technical Description:
Taken from B&O Catalogue:
- Frequency response: 50 - 17 kHZ
- Sensitivity: 0.1 mV/microbar
- Impedance: 200 ohms

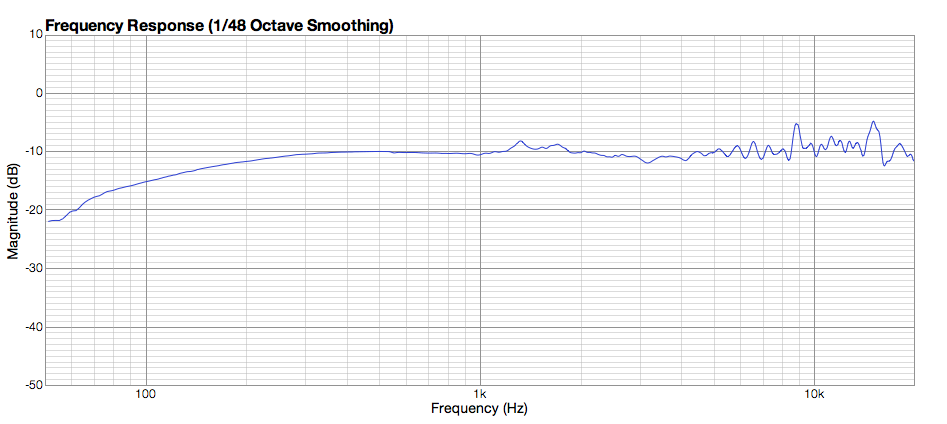

Frequency Response:
Impulse Response File:
Impulse Response file of the Beomic 1000 dynamic microphone.
Beomic1000_IR.wav
Format: VND.WAVESize: 0.5 MB
Further Reading:
See the Beomic 1000 Service Manual
