Microphone 39 of 228
BSR RBM1
Calrad DM-16HL

Calrad DM-11

Manufacturer:

Calrad

Model:

DM-11

Country of Manufacture:

Japan

Microphone Type:

Dynamic

Polar Pattern:

Cardioid

Production Start Year:

1960

Rarity:

3

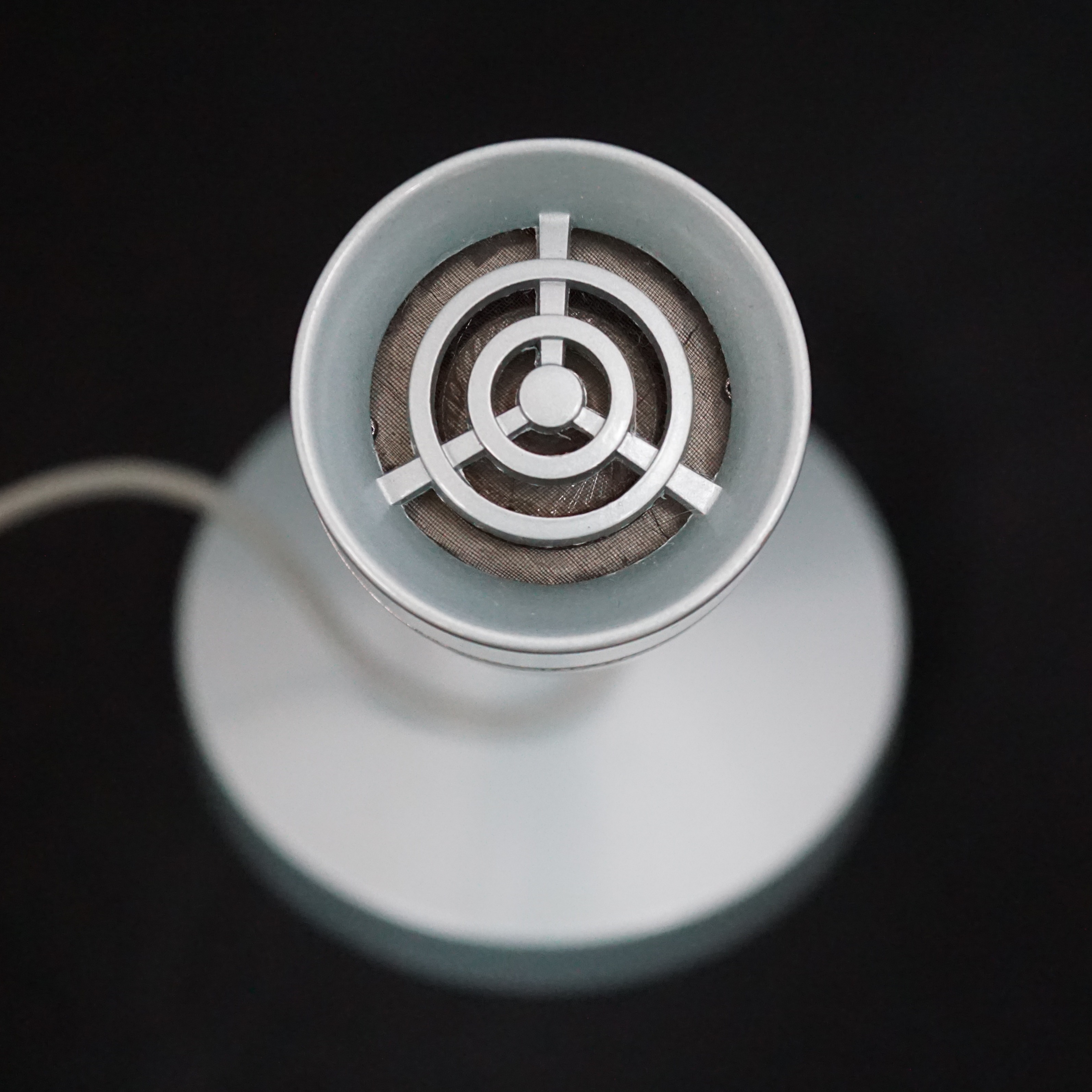

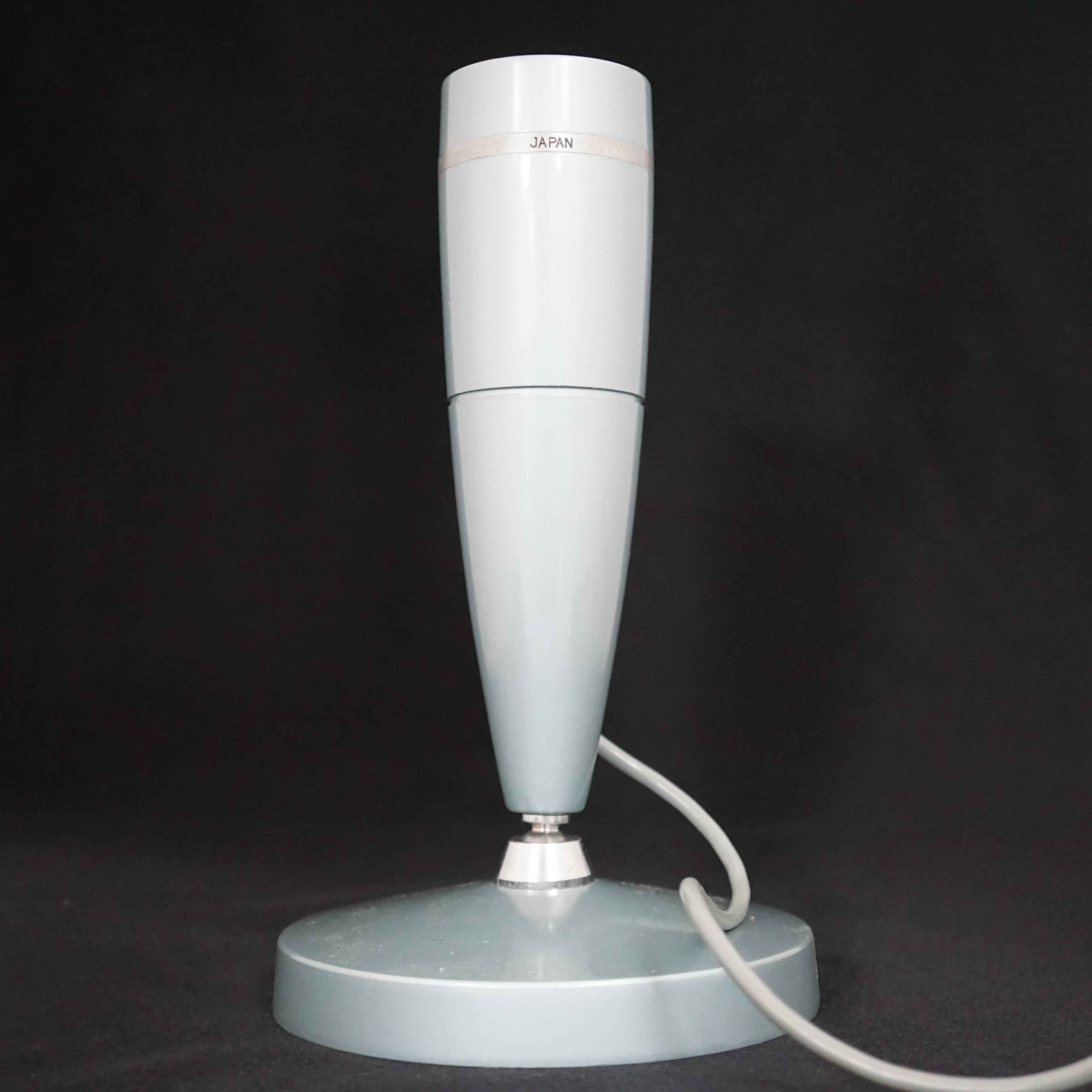

Calrad DM-11

Frequency Response:

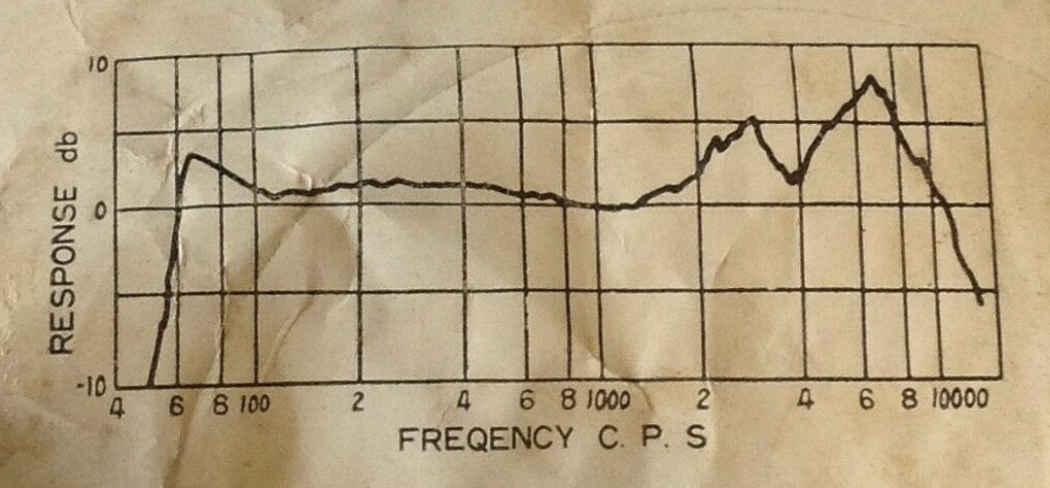

Frequency Response Graph

Technical Description:

  • Type: DM-11
  • Impedance: 50 kOhms
  • Sensitivity: -53dB (1000 Hz)
  • Frequency response: 55-13.000 Hz

Thin, lightweight, diaphragm with aluminium voice coil, to improve frequency range. Aluminium die-cast body in metallic blue finish, 20 ft. cord with phone plug.

Further Reading:

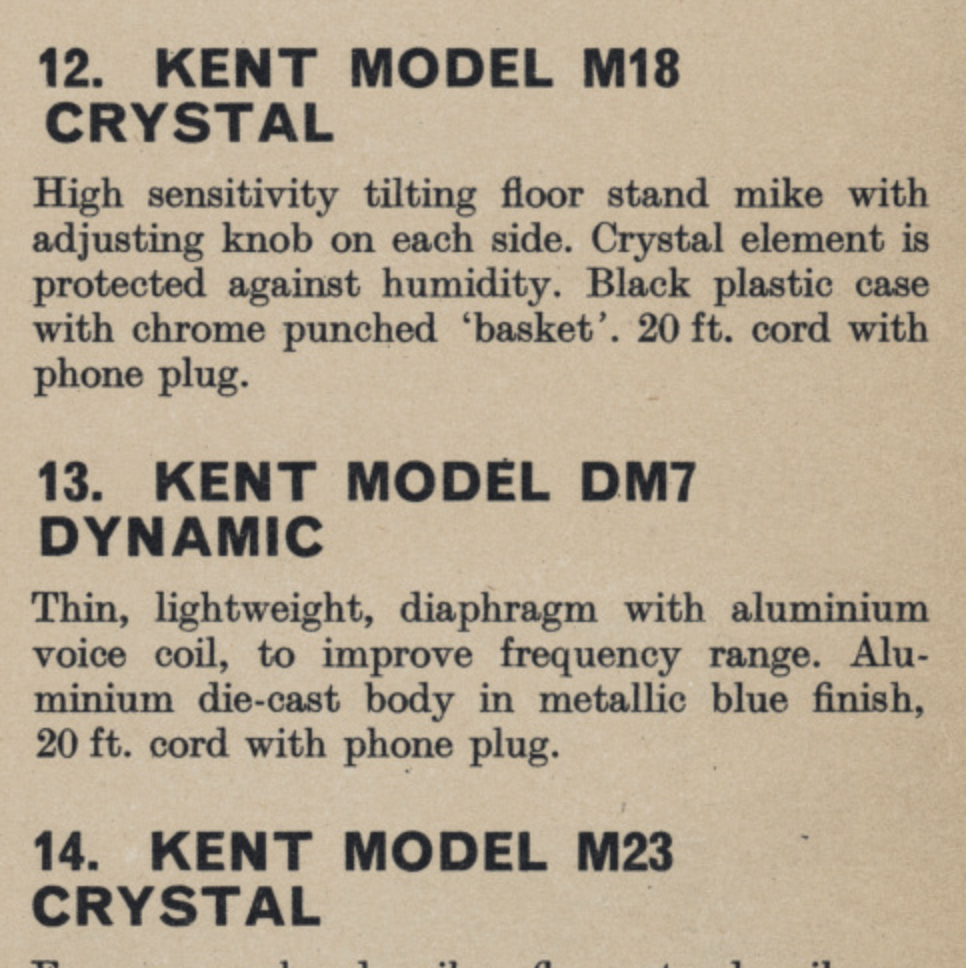

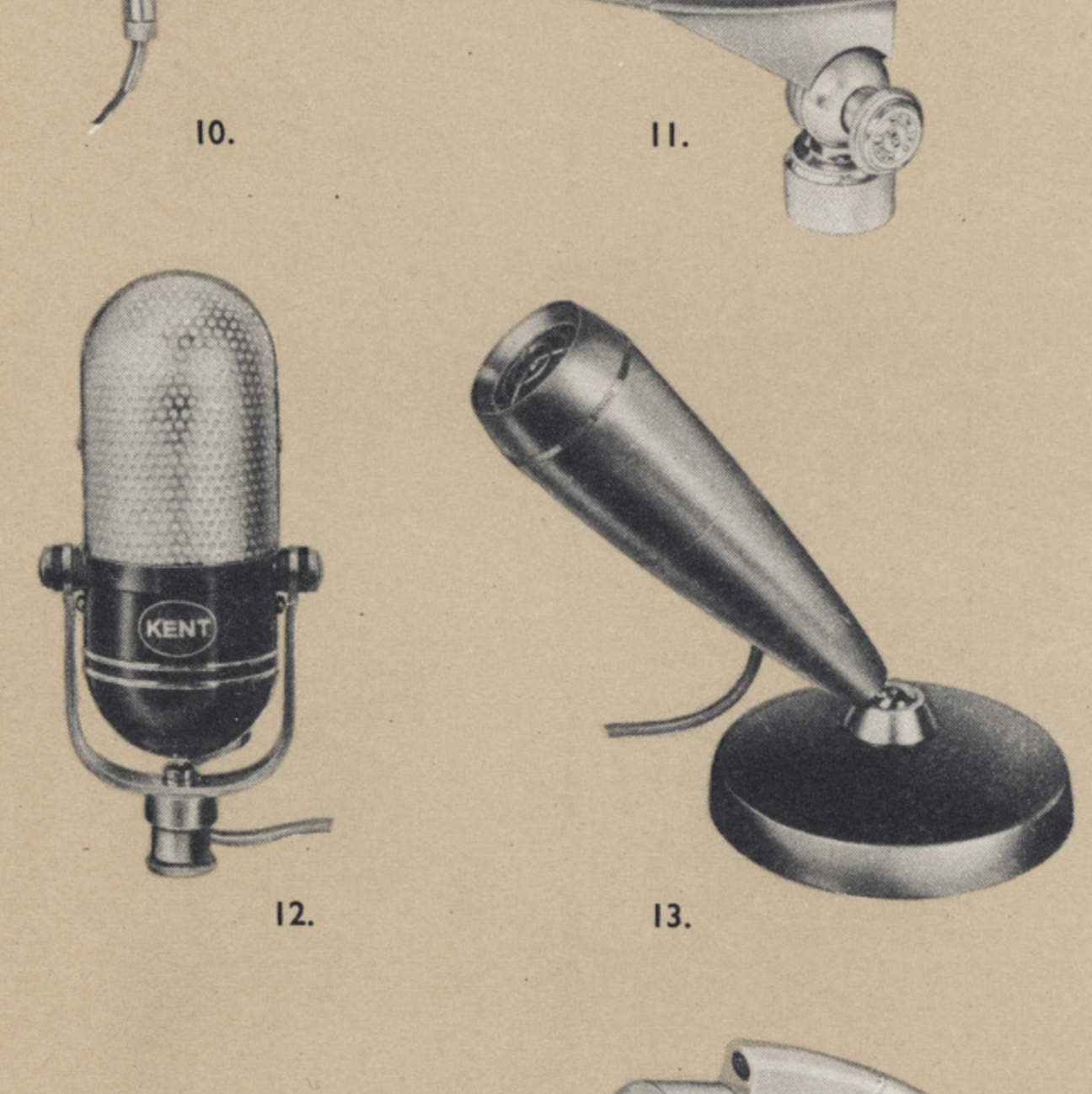

The Calrad DM-11 was also sold as the Kent DM7. It also looks suspiciously similar to the RCA BK-1.

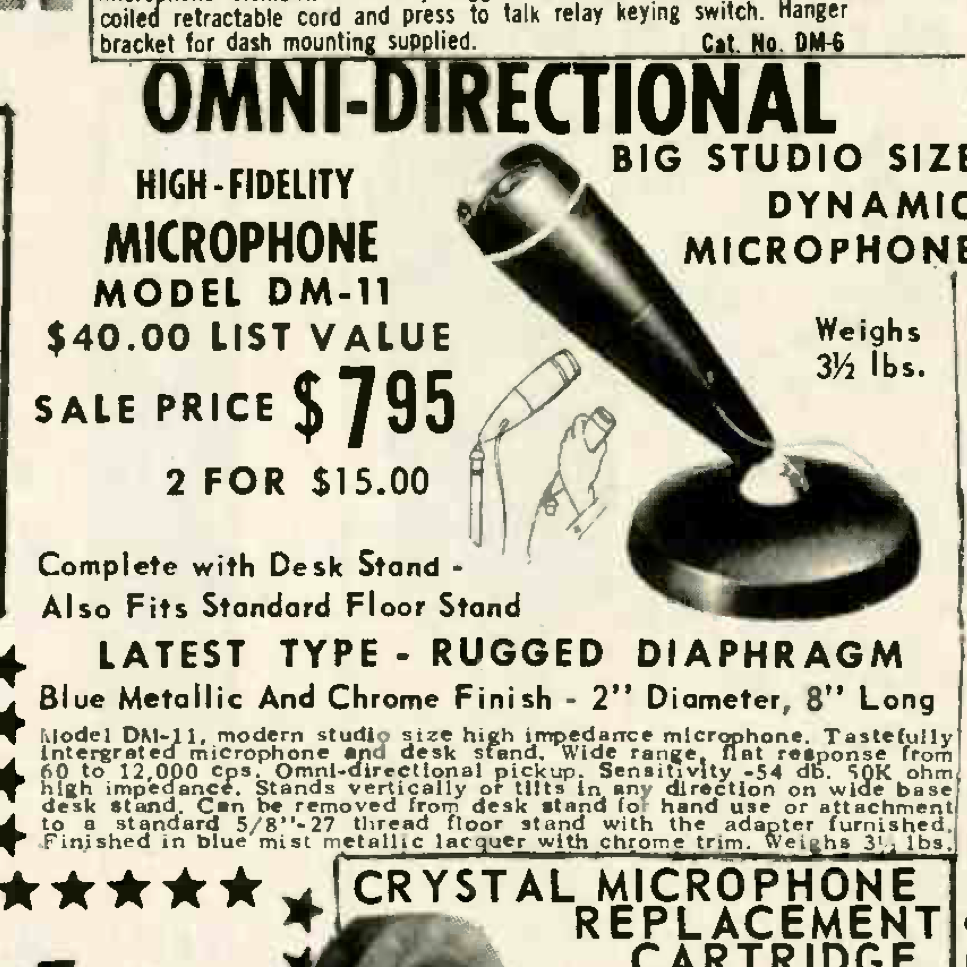

The DM-11 appears in the McGee Radio Company catalogue of 1967, along with a wide selection of other imported Japanese microphones.
