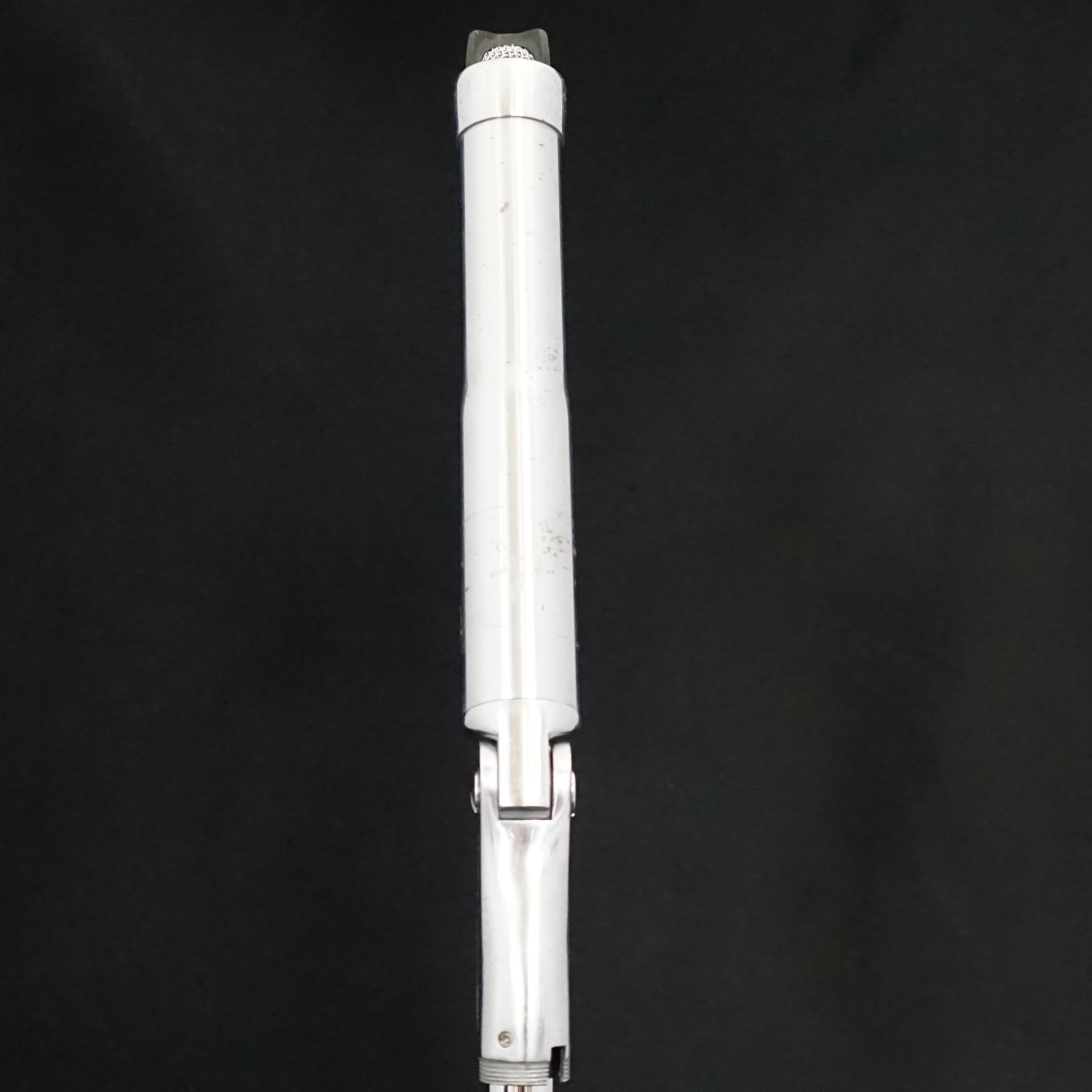

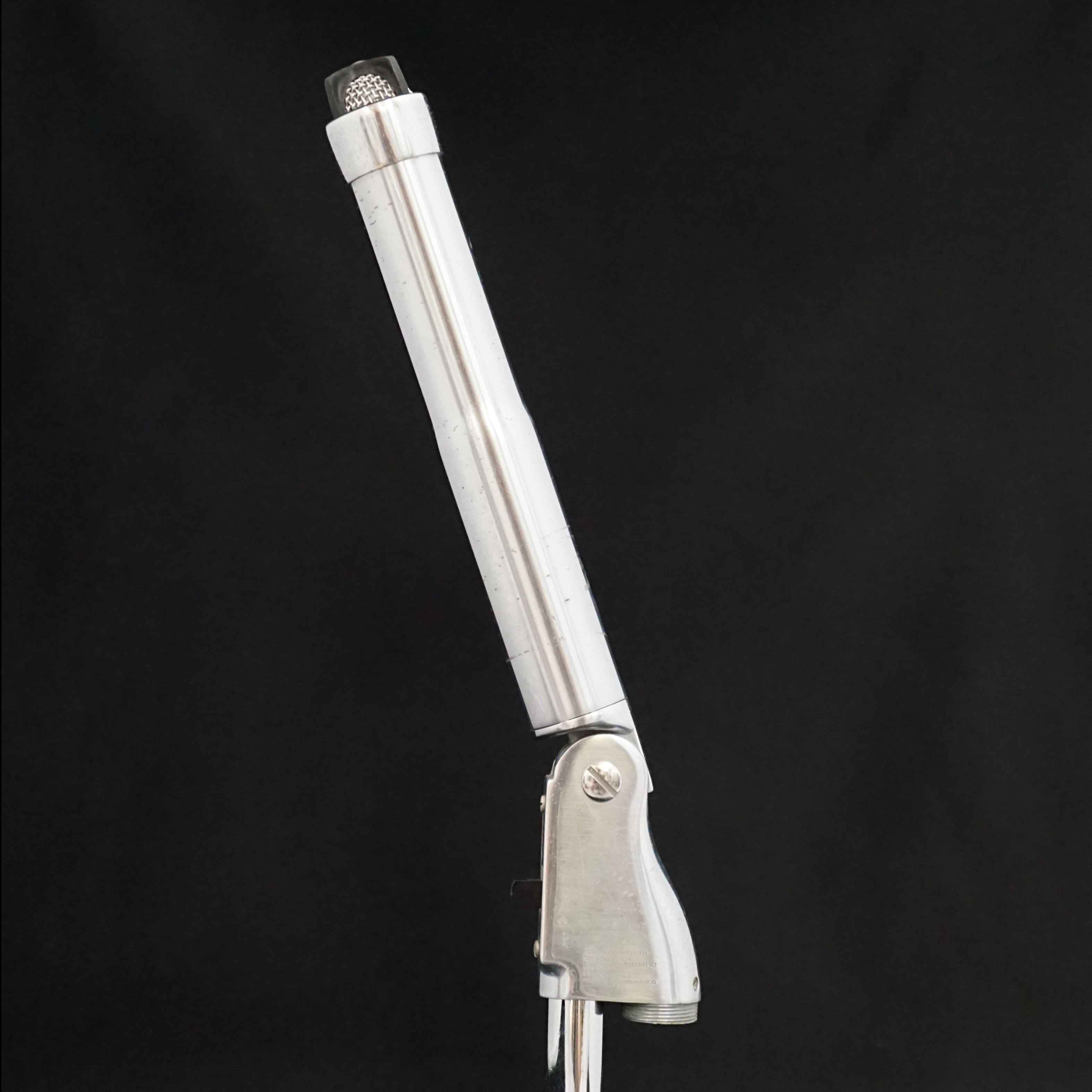

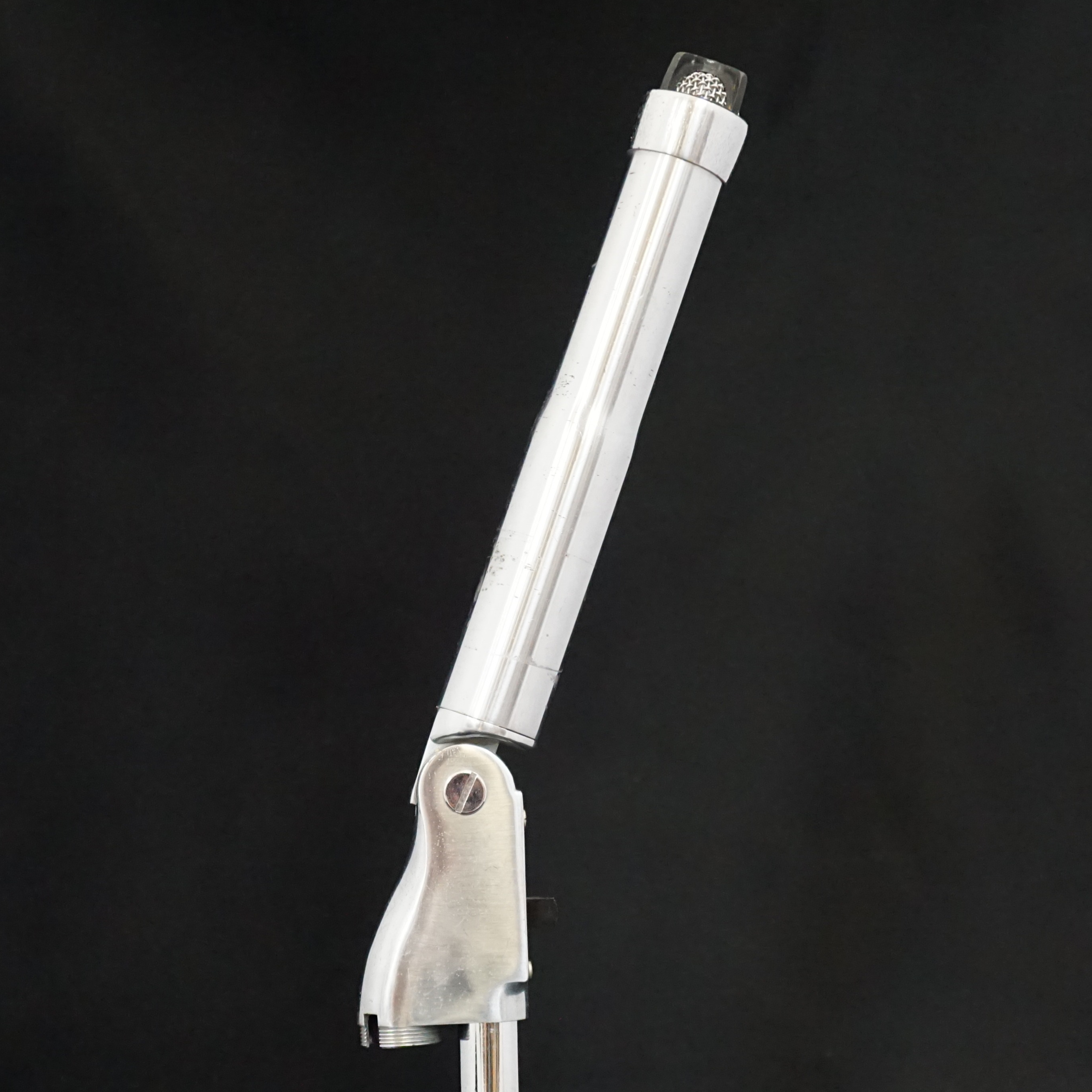

Electro-Voice Slimair (636)
Manufacturer:
Electro-VoiceModel:
Slimair (636)Country of Manufacture:
United StatesMicrophone Type:
DynamicPolar Pattern:
OmnidirectionalProduction Start Year:
1950Rarity:
3
Frequency Response:
Microphone History:
The Electro-Voice Model 636 is an omnidirectional microphone of the dynamic type with only one moving element. The slim styling of the 636 was specifically designed to provide the flexibility and ruggedness required for general public address use.
Technical Description:
Description taken from the EV manual linked in the further reading section:
- Element: Dynamic
- Frequency Response: Uniform 60 to 13,000 Hz.
- Polar Pattern: Omnidirectional
- Impedance: 150 ohms and high impedance. 150 ohms balanced to ground. Shipped wired for high impedance (Hi-Z).
- Impedance Selection: Easily made at E-V QC-4M Quick Change Connector without tools.
- Output Level: High Impedance: -58 db (0 db = 1 volt/dyne/cm2 ); 150 ohm Impedance: -58 db (0 db = 1 mw/10 dynes/cm2)
- EIA Sensitivity Rating" High Impedance: -154 db; 150 ohm Impedance: -154 db
