Extinct Audio BM9
Manufacturer:
Extinct AudioModel:
BM9Country of Manufacture:
United KingdomMicrophone Type:
RibbonPolar Pattern:
Figure 8Production Start Year:
2017Rarity:
3

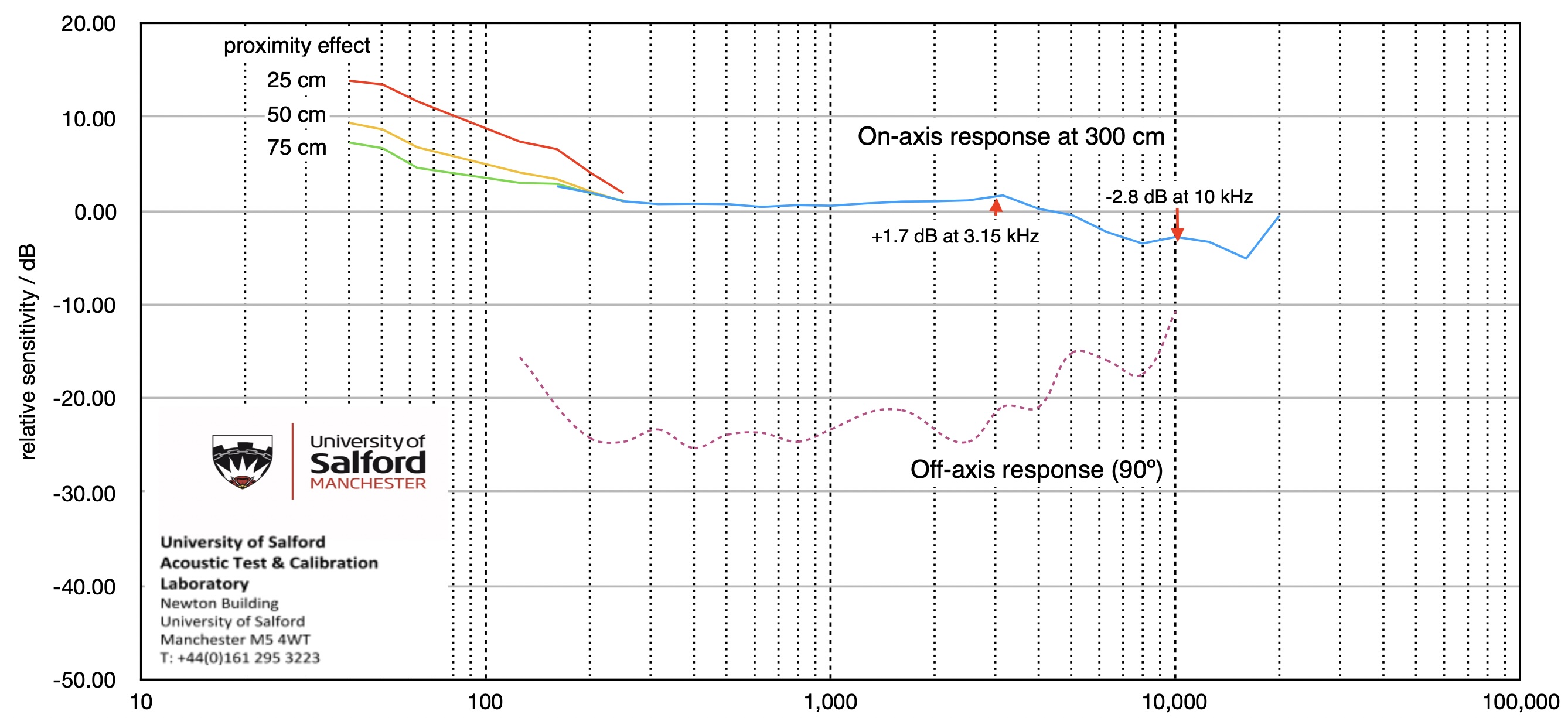

Frequency Response:

Microphone History:
Extinct Audio Ltd. was started in April 2017 by Dr. Stewart Tavener and Adam Watson, in York, England, with the ambition of building high quality ribbon microphones locally. Stewart had previously spent ten years running the Xaudia repair shop, servicing Reslo, AEA and B&O microphones along with many others.

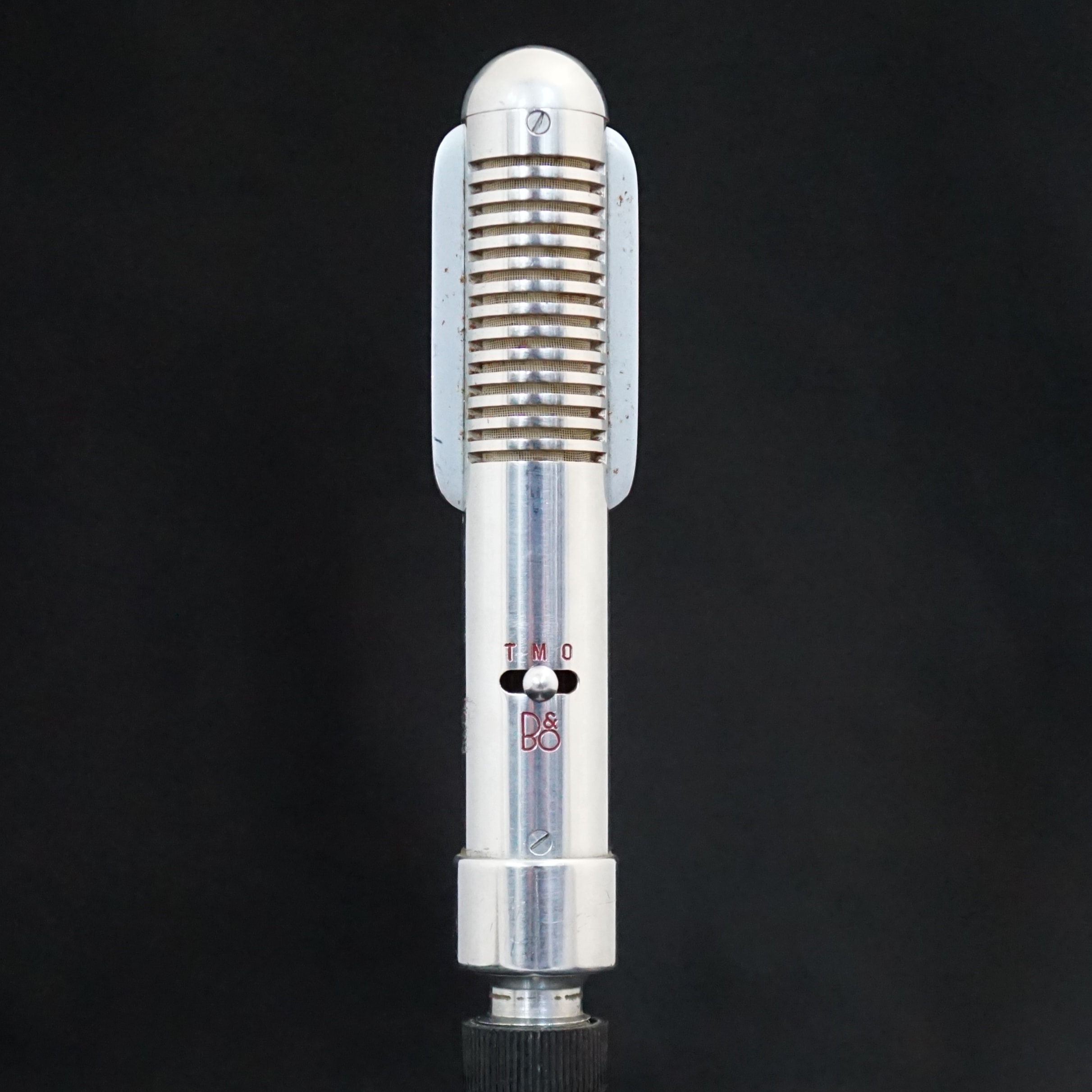

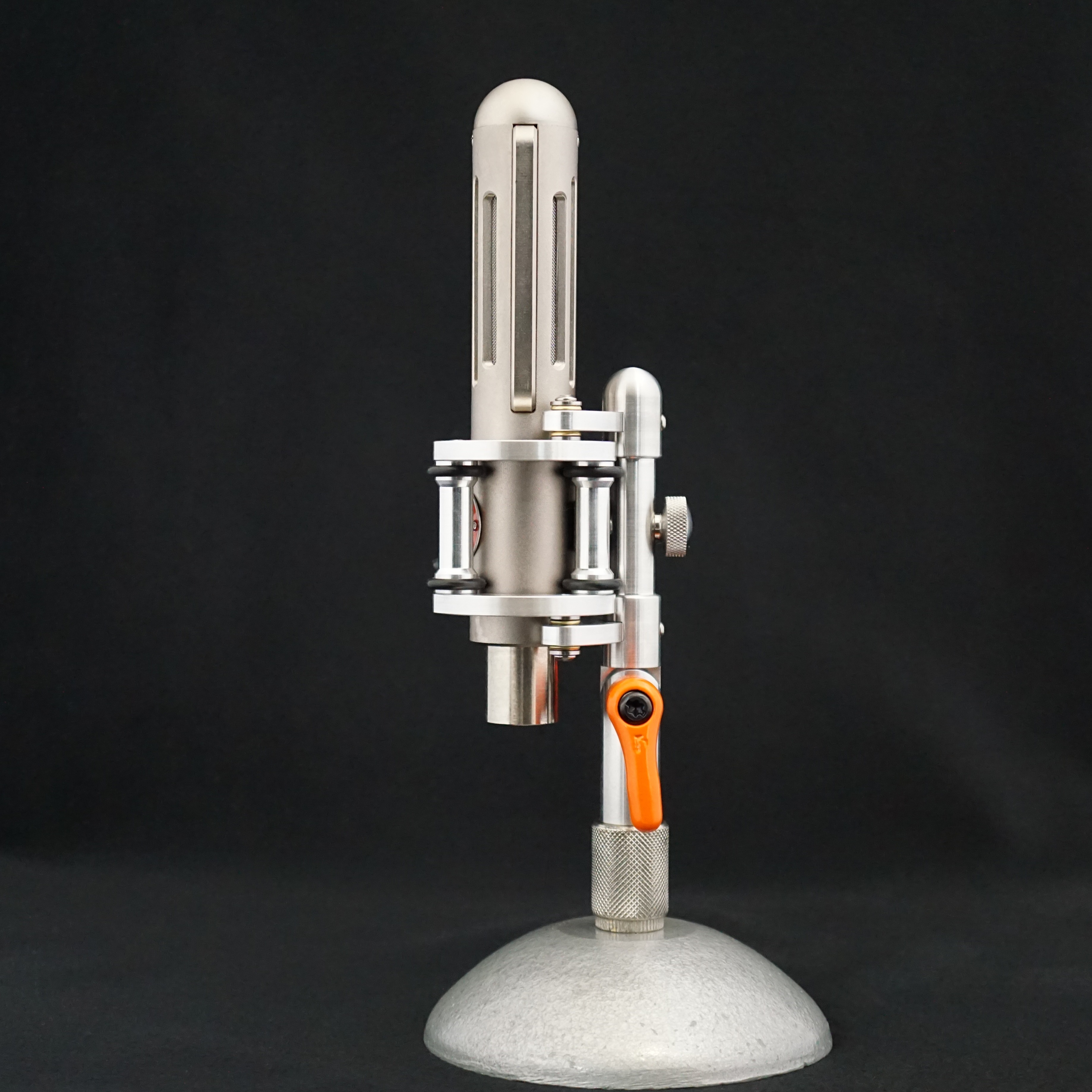

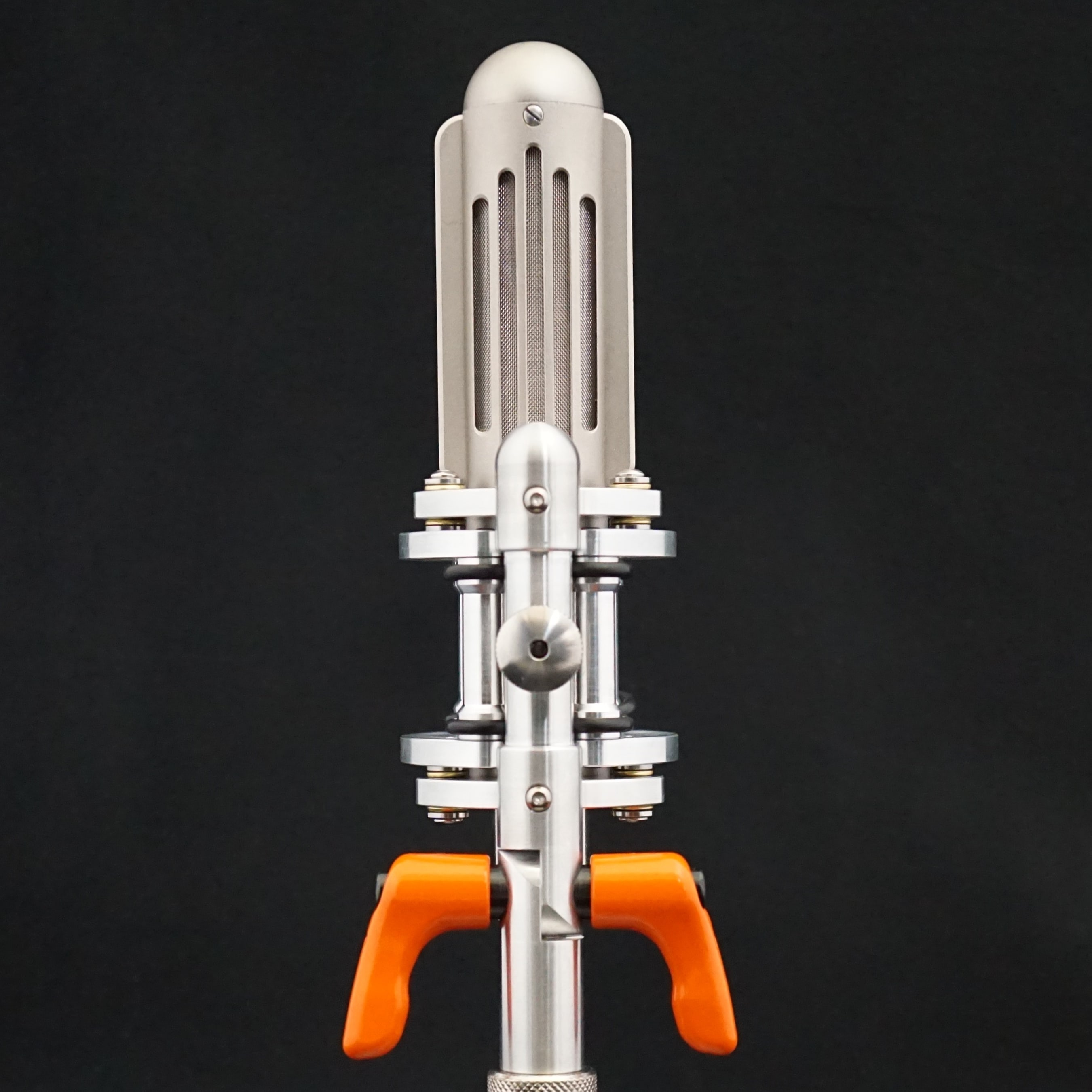

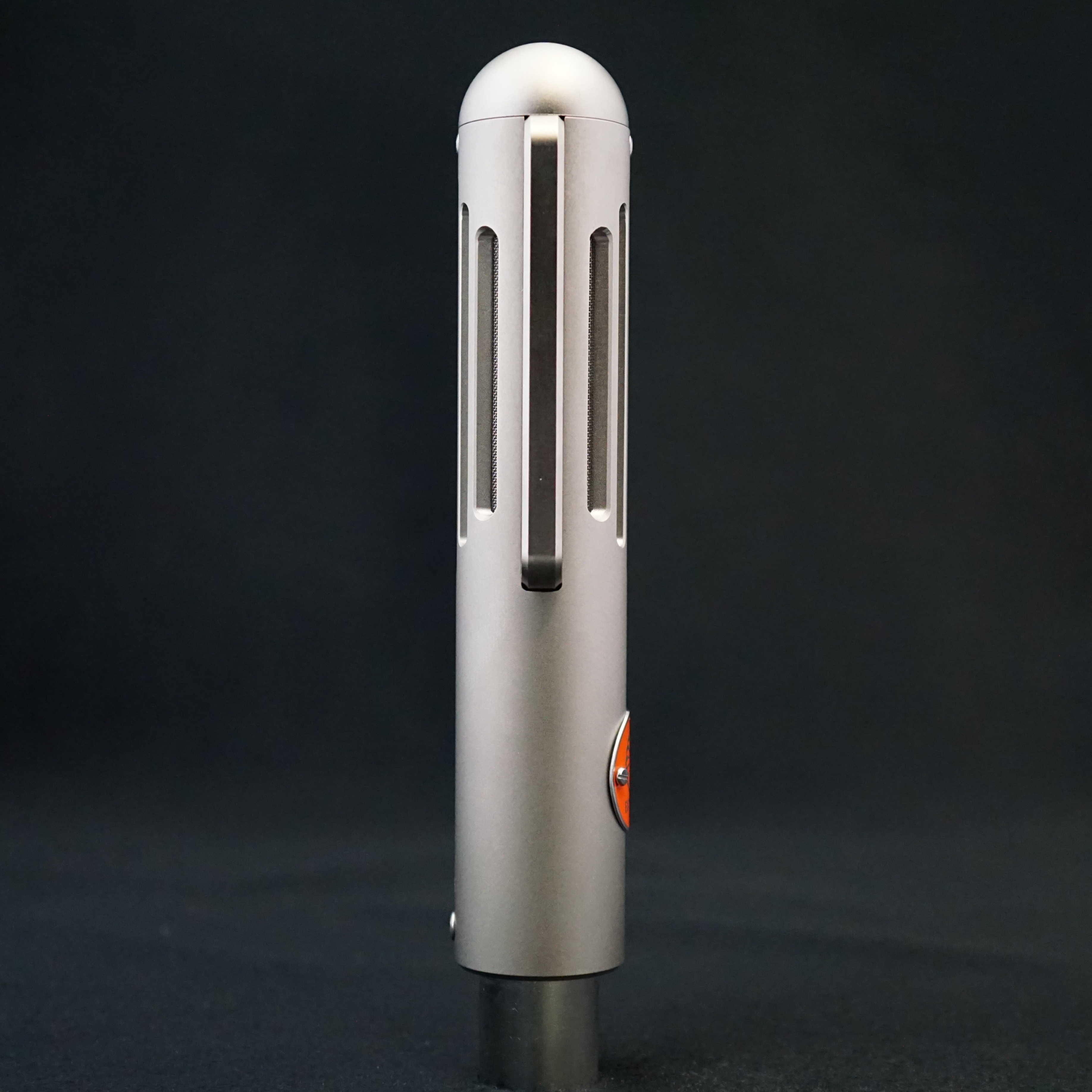

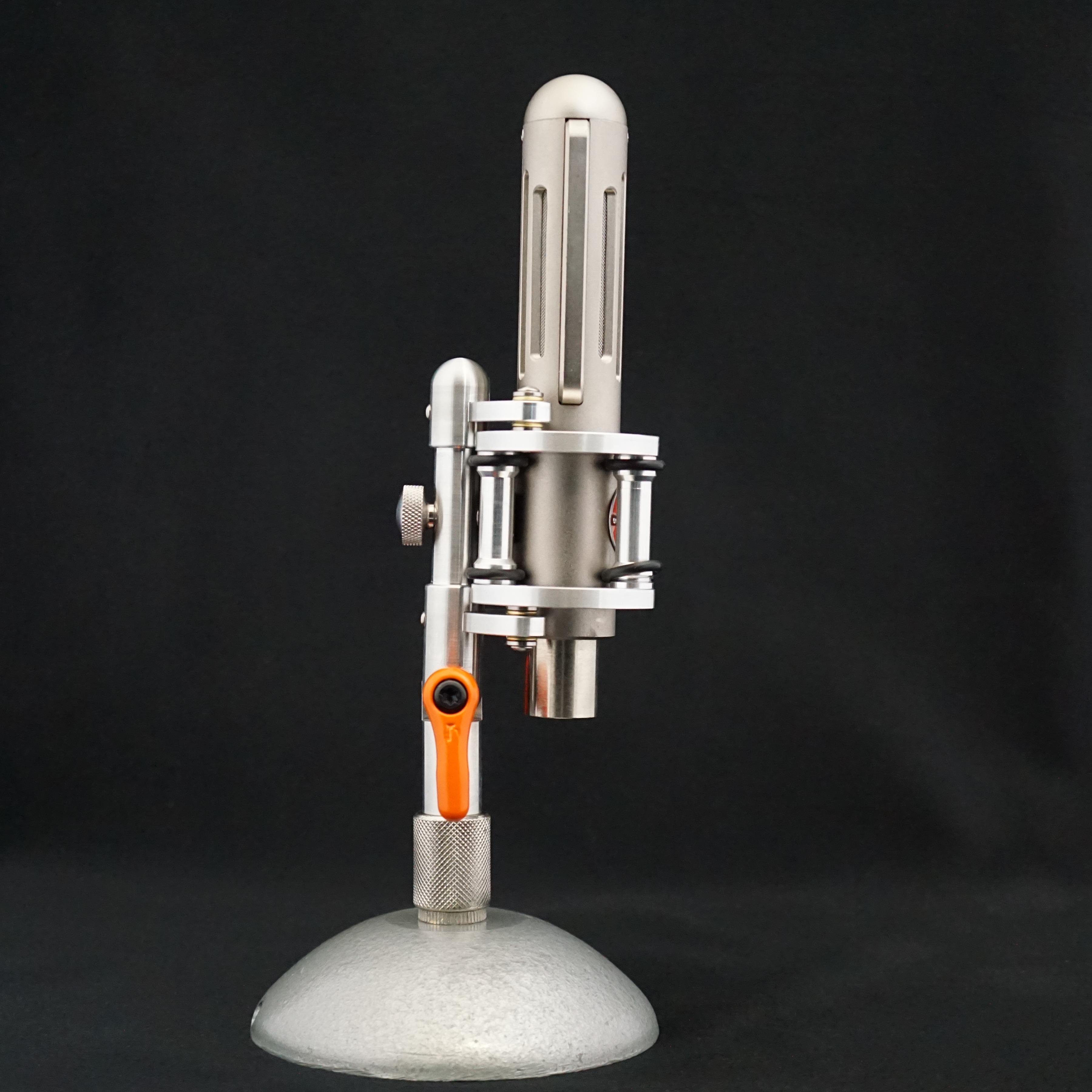

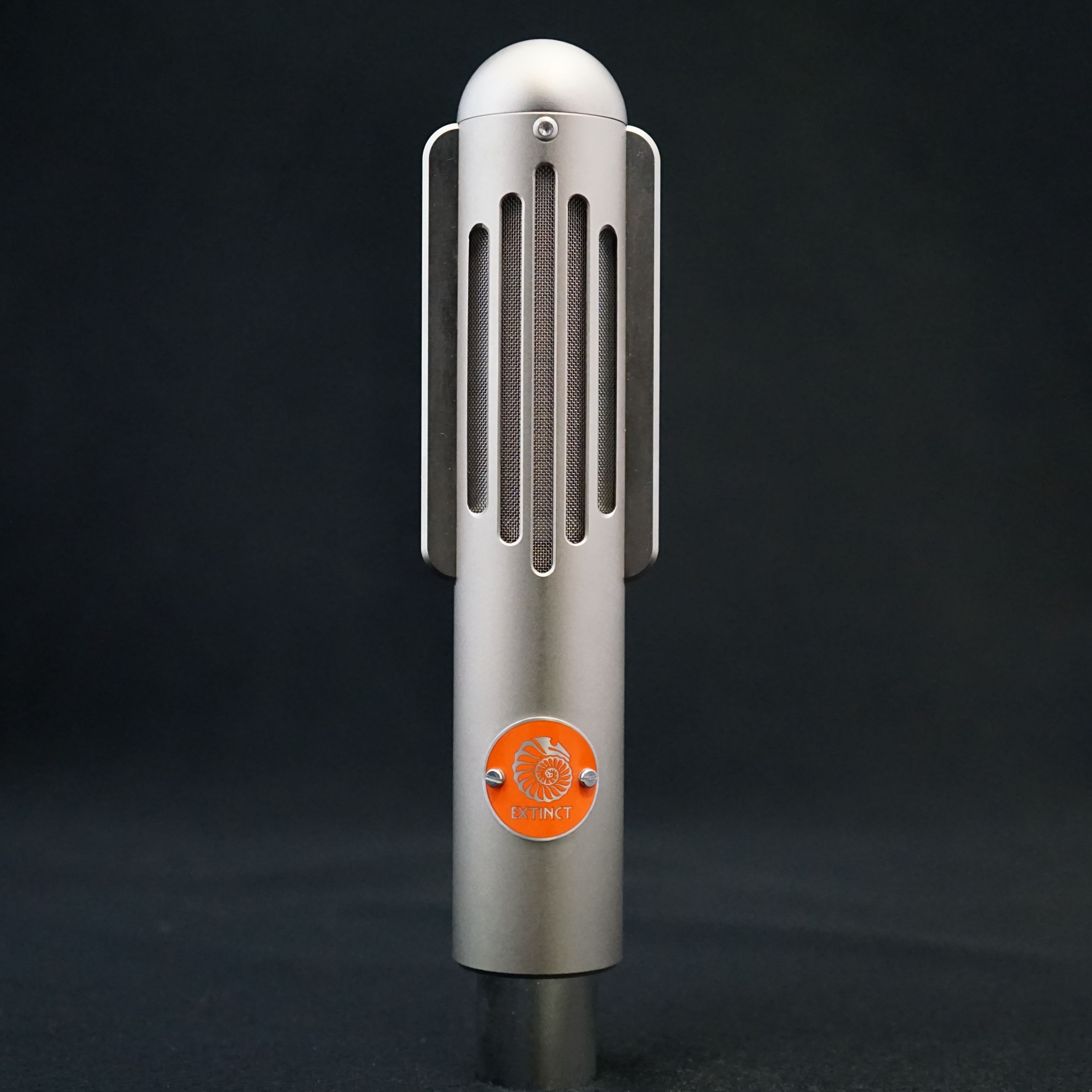

The BM9, also known as the Viking, was the production model from Extinct, and has an obvious aesthetic connection to the B&O BM3 and BM4 models. Stewart told us.. "We asked ourselves the question: if B&O made a ribbon microphone today, with access to the magnets and technology that we have now, what would it look and sound like? That is how the BM9 was born. It broadly follows the ribbon geometry of the BM3 but it also contains everything we learned from ten years of repairing and upgrading the old microphones. It has a much stronger output and low noise because of the magnet and transformer design, and we also did something subtle with the grills which lifts the high end response."
The first two hundred BM9 microphones have a hand written serial number which is located on the green XLR insert, between the pins. It can be seen if you peek into the bottom of the microphone. Later models from 201 onwards have the serial number laser etched onto the rear of the microphone.
Technical Description:
- Output impedance = 300 ohms at 1KHz
- Directional Pattern: True figure-8. View BM9 polar pattern chart
- Transducer Element: 1.8 micrometer aluminum ribbon
- Frequency range*: <30 Hz – 15 kHz @ ±3dB. (excludes proximity effect)
- Maximum SPL: 135dB @ 20 Hz
- Sensitivity: 3.5 mV/Pa, -49 dBv/Pa (referenced to AEA R84)
- Self noise (thermal): -130 dBV at 20ºC (20 kHz bandwidth)
- Signal to noise (1kHz at 1 Pa): 81 dB.
- Proximity effect: Strong
- Electronics: Passive. No power required
- Output configuration: Transformer balanced
- Output Connector: XLR3, Pin 2= +ve, Pin 3 = -ve, Pin 1 = Ground
- Weight: 355g (microphone only)
