Microphone 100 of 277
L.M.T. 3605a
Lafayette PA-42

Lafayette 99-4590

Manufacturer:

Lafayette

Model:

99-4590

Country of Manufacture:

Japan

Microphone Type:

Dynamic

Polar Pattern:

Omnidirectional

Production Start Year:

1967

Production End Year:

1973

Rarity:

3

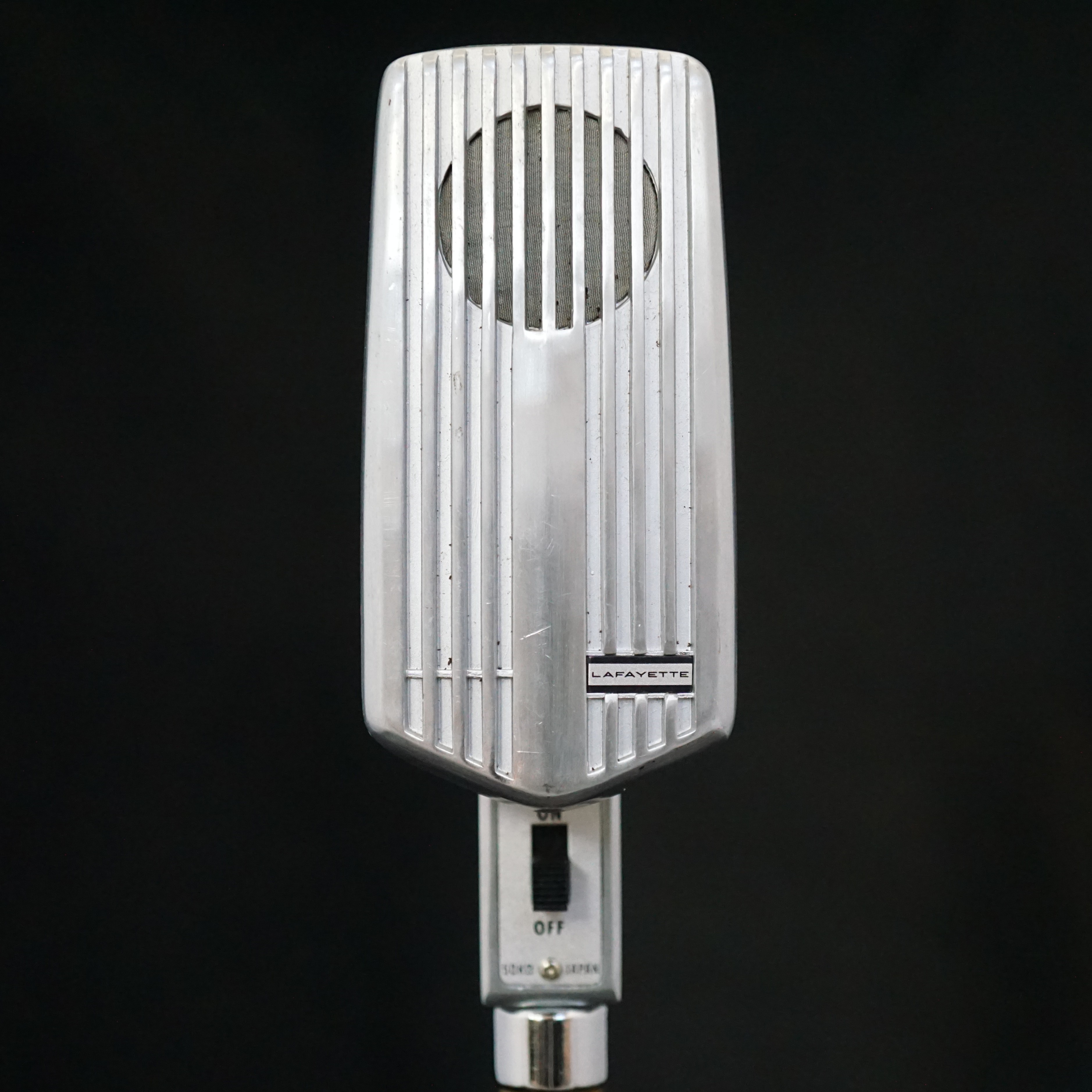

Lafayette 99-4590

Microphone History:

The Lafayette Radio Electronics catalog was an extensive mail-order guide that ran from the 1930s through to 1981. It offered consumer electronics, hi-fi stereo gear, and radio components including shortwave receivers, walkie-talkies, amplifiers, tape decks, transistors, and build-it-yourself speaker components. Lafaytte competed directly with Radio Shack, Allied Radio, and Heathkit in the United States.

Lafayette sold their own brand of imported mics from Japan alongside those from Shure and Electrovoice. Dynamic microphone model 99-4590 appeared in the Lafayette catalogues between 1967 and 1974, which can be viewed in full at World Radio History.

Technical Description:

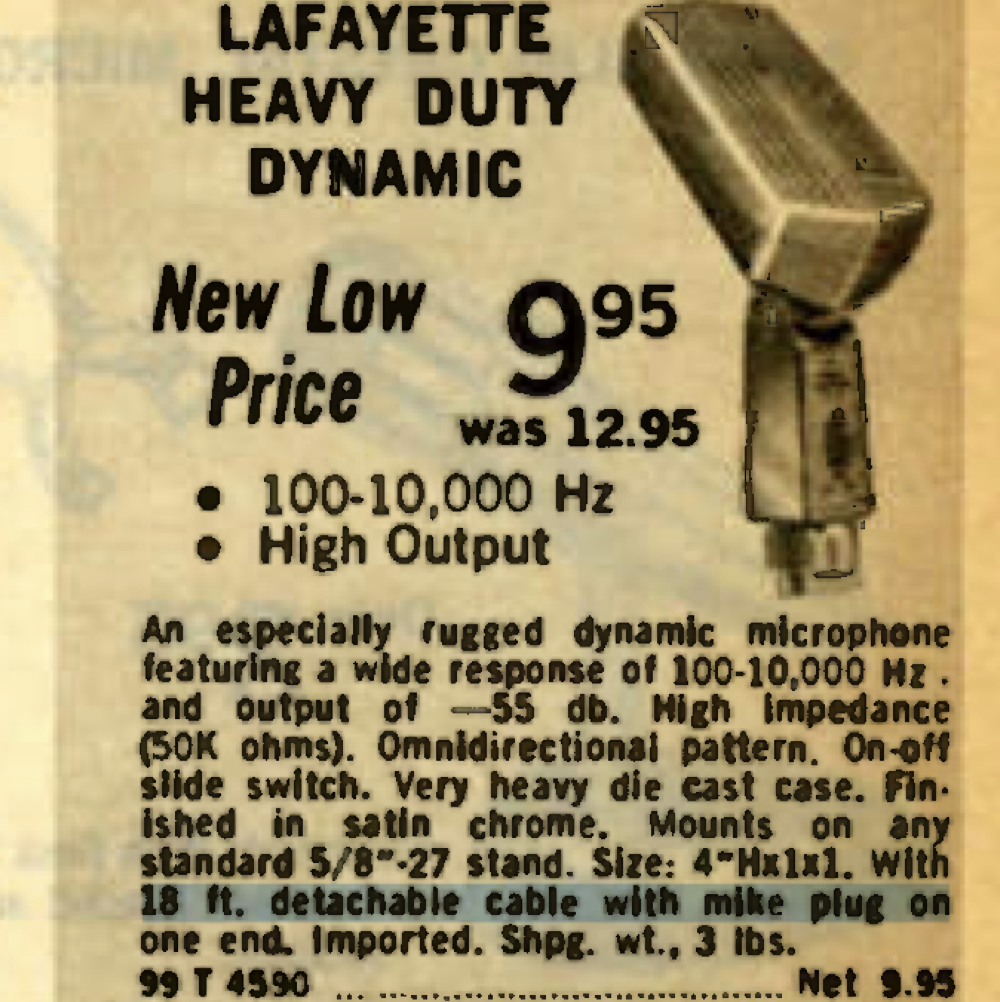

From the Lafayette catalogue of 1972, no.720, page 191

An especially rugged dynamic microphone featuring a wide response of 100-10,000 HZ. and output of -55 db. High impedance (50K ohms). Omnidirectional pattern. On-off slide switch. Very heavy die cast case. Finished in satin chrome. Mounts on any standard 5/8"-27 stand. With 18 ft. detachable cable with mike plug on one end, Imported. Shipping. wt. 2 ibs.

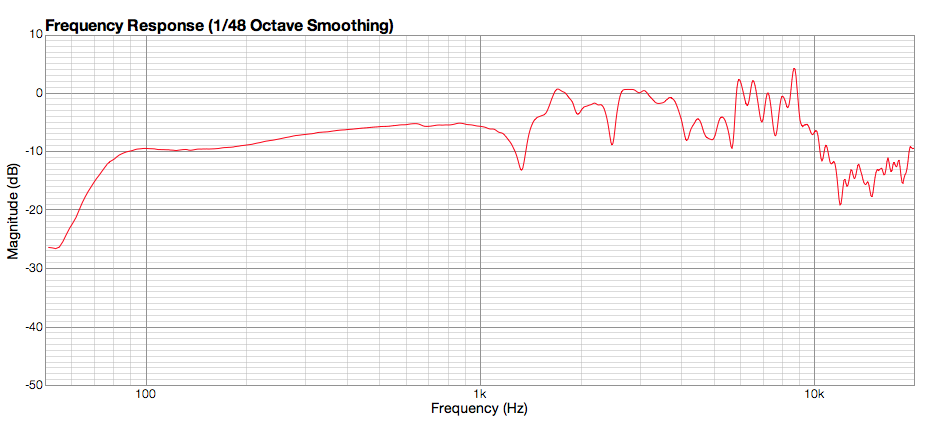

Frequency Response:

Frequency Response Graph

Impulse Response File:

Impulse Response file of the Lafayette dynamic microphone.

Lafayette_Dynamic_IR.wav

Format: VND.WAVESize: 0.5 MB
